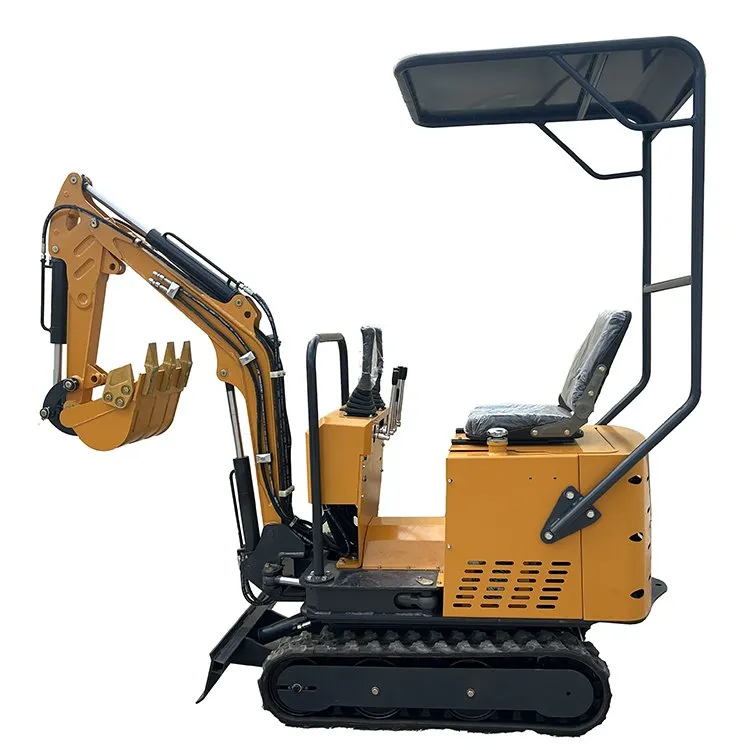

Mini Digger for Home Use
ME 08mini digger for home use
Small excavators are suitable for small Spaces and indoor operations, such as construction sites, agricultural gardens, basements, interior decoration and other fields have a wide range of applications. Because of its small size, flexible operation, strong adaptability and other characteristics, small excavators can play an important role in a variety of different working environments.
In addition, because the small excavator is generally driven by electricity, it has the advantages of environmental protection, economy, low noise, etc., and it has good application in places with high noise requirements such as urban environment and interior decoration.
|
PROJECT |
UNIT |
ME08H |
|
Mechine weight |
kg |
750 |
|
Bucket voluem |
m³ |
0.02 |
|
Engine model |
|
Koop192fe/B&S |
|
Decibels within l meter |
Dba |
115 |
|
L*W*H |
mm |
2481*720*1550 |
|
Chassis width |
mm |
720 |
|
Maximum digging radius |
mm |
2760 |
|
Maximum digging height |
mm |
2400 |
|
Maximum digging depth |
mm |
780 |
|
Walking speed |
km/h |
2.2 |
|
Hydraulic flow |
L/min |
20 |
|
Swing speed |
|
10"/360° |
|
Climbing angle |
|
30° |
|
Arm swing |
|
Left85°Right45° |
|
PROJECT |
UNIT |
ME12H |
ME10H |
ME08H |
|
Mechine weight |
kg |
980 |
930 |
750 |
|
Bucket voluem |
m³ |
0.025 |
0.025 |
0.02 |
|
Engine model |
|
Koop192fe/B&S |
Koop192fe/B&S |
Koop192fe/B&S |
|
Decibels within l meter |
Dba |
115 |
115 |
115 |
|
L*W*H |
mm |
2590*1000*1450 |
2590*1000*1450 |
2481*720*1550 |
|
Chassis width |
mm |
1000/800-1000 |
1000/800-1000 |
720 |
|
Maximum digging radius |
mm |
3100 |
3100 |
2760 |
|
Maximum digging height |
mm |
2600 |
2600 |
2400 |
|
Maximum digging depth |
mm |
1780 |
1780 |
780 |
|
Walking speed |
km/h |
3 |
2.2 |
2.2 |
|
Hydraulic flow |
L/min |
27 |
25 |
20 |
|
Swing speed |
|
10"/360° |
10"/360° |
10"/360° |
|
Climbing angle |
|
45° |
40° |
30° |
|
Arm swing |
|
Left85°Right45° |
Left85°Right45° |
Left85°Right45° |
|
PROJECT |
UNIT |
ME15H |
ME18H |
ME20H |
|
Machine weight |
kg |
1400 |
1830 |
1980 |
|
Bucket volume |
m³ |
0.035 |
0.04 |
0.06 |
|
Engine model |
|
Kubota/Koop B&S 2 cylinders |
Kubota/Yanmar |
Kubota/Yanmar |
|
Decibels within 1 meter |
Dba |
95-105 |
95 |
95 |
|
L*W*H |
mm |
3050*1100*1500 |
3050*1100*1500 |
3050*1100*1500 |
|
Chassis width |
mm |
1100/990-1300 |
1330/990-1300 |
1330/990-1300 |
|
Maximum digging radius |
mm |
3150 |
3910 |
4120 |
|
Maximum digging height |
mm |
2700 |
3535 |
3500 |
|
Maximum digging depth |
mm |
1880 |
2270 |
2270 |
|
Walking speed |
km/h |
2.2 |
2.2/4.3 |
2.2/3 |
|
Swing speed |
|
10"/360° |
10"/360° |
10"/360° |
|
Pump type |
|
Gear pump |
Variable volume pump |
|
|
Max. discharge flow |
L/min |
33 |
64.4 |
54 |
|
Swing motor type |
|
|
HVSE 5VS28(reducer) |
Eaton SW2.5K(reducer) |
|
Grade ability |
|
45° |
58° |
58° |
|
Hydraulic system |
|
|
HVSE |
NACHI |
|
Walking motor |
|
|
AIDI:FTMO1A(reducer) |
Eaton (reducer) |
|
PROJECT |
UNIT |
ME10E |
ME08E |
MEO5E |
|
Machine weight |
kg |
950 |
800 |
620 |
|
Bucket volume |
m³ |
0.025 |
0.025 |
0.02 |
|
Engine model |
Battery |
LiFePO4/LiCoMnNiO2 |
LiFePO4/LiCoMnNio2 |
LiFePO4/LiCoMnNio2 |
|
BYD:Lithium battery+BMS |
72v/ah |
160/180/210 |
130/180/210 |
148 |
|
Working time |
h |
7/8.5/10 |
6/9/10.5 |
8 |
|
PMSM motor |
72v/Kw |
4.5 |
4 |
3.5 |
|
Peak power |
Kw |
9 |
8 |
7 |
|
Charging time |
h |
4-8 |
4-8 |
4-8 |
|
Power consumption |
Kwh |
1.2-1.5 |
1.2-1.4 |
1.2-1.4 |
|
Decibels within 1 meter |
Dba |
< 50 |
< 50 |
< 50 |
|
L*W*H |
mm |
2590*1000*1450 |
2480*720*1250 |
1600*640*1350 |
|
Chassis width |
mm |
1000/800-1000 |
720/700-900 |
600 |
|
Maximum digging radius |
mm |
3100 |
2400 |
2760 |
|
Maximum digging height |
mm |
2600 |
2200 |
2400 |
|
Maximum digging depth |
mm |
1780 |
1220 |
1200 |
|
Walking speed |
km/h |
3 |
2.2 |
2.2 |
|
Hydraulic flow |
L/mim |
27 |
23 |
20 |
|
Swing speed |
|
10"/360° |
10"/360° |
10"/360° |
|
Climbing angle |
|
45° |
40° |
30° |
|
PROJECT |
UNIT |
ME15E |
ME18E |
ME20E |
|
Machine weight |
kg |
1400 |
1400 |
1980 |
|
Bucket volume |
m³ |
0.035 |
0.04 |
0.06 |
|
Engine model |
Battery |
LiFePO4/LiCoMnNiO2 |
LiFePO4/LiCoMnNiO2 |
LiFePO4/LiCoMnNiO2 |
|
BYD:Lithium battery+BMS |
72v/ah |
210/300/400 |
300/450 |
300/450 |
|
Working time |
h |
7/9/12 |
4/6 |
4/6 |
|
PMSM motor |
72v/Kw |
5.5 |
7.5 |
7.5 |
|
Peak power |
Kw |
10 |
15 |
15 |
|
Charging time |
h |
4-8 |
4-8 |
4-8 |
|
Power consumption |
Kwh |
1.5-2.5 |
5.2-5.7 |
5.2-5.7 |
|
Decibels within 1 meter |
Dba |
< 50 |
< 50 |
< 50 |
|
L*W*H |
mm |
3050*1100*1500 |
3575*990/1330*1650 |
3575*990/1330*1650 |
|
Chassis width |
mm |
1100/990-1300 |
1330/990-1300 |
1350/990-1300 |
|
Maximum digging radius |
mm |
3150 |
3910 |
4120 |
|
Maximum digging height |
mm |
2700 |
3535 |
3500 |
|
Maximum digging depth |
mm |
1880 |
2270 |
2300 |
|
Walking speed |
km/h |
2.2 |
2.2/4.3 |
2. 2/3 |
|
Swing speed |
|
10"/360° |
9.5"/360° |
10"/360° |
|
Pump type |
|
Gear pump |
Variable volume pump |
|
|
Max. discharge flow |
L/mim |
33 |
64.4 |
54 |
|
Swing motor type |
|
|
Eaton SW2.5K |
|
|
Grade ability |
|
45° |
58° |
|
|
Hydraulic system |
|
|
Load sensitive |
