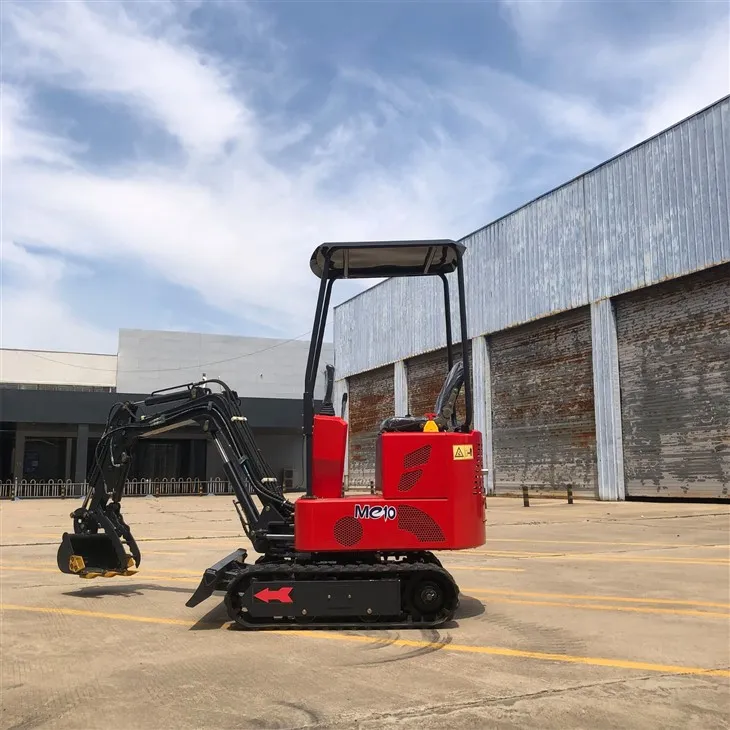

1 ton Mini Compact Excavator

The Bailitong engine is characterized by high efficiency, low consumption, and environmental friendliness. It features an advanced hydraulic system that delivers excellent performance and efficiency. With its small size and flexibility, it has good passability and can work freely in confined spaces.

Share This Product, Choose Your Platform!

Product Details

Mini excavator product introduction
● The Bailitong engine is known for its high efficiency, low consumption, and commitment to environmental protection.
● The advanced hydraulic system ensures excellent performance and efficiency.
● Small and flexible, with good passability, it can work freely in small places.

It offers excellent work efficiency and outstanding cost-performance.

The operation is simple, and its compact and flexible design facilitates easy transportation, allowing it to work in small sites.

The standard configuration includes a dozer blade that can level the site, perform earthwork backfill, and enhance the machine’s stability.

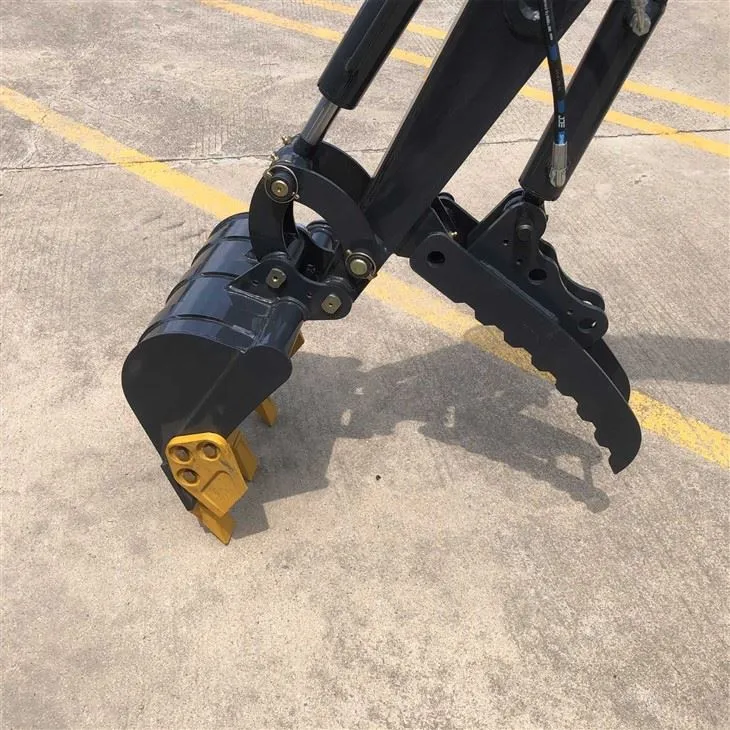

Equipped with multiple functions such as digging, crushing, hook cleaning, drilling, and dodging, it can quickly replace accessories, significantly improving the machine’s utilization rate.

It can rotate 360 degrees, with the large arm able to swing 85 degrees to the left and 45 degrees to the right, making it more suitable for operations in narrow sites.

PROJECT UNIT ME10H
Brand ANTS
Mechine weight kg 930
Bucket voluem m³ 0.025
Engine model Koop192fe/B&S
Decibels within l meter Dba 115
L*W*H mm 2590*1000*1450
Chassis width mm 1000/800-1000
Maximum digging radius mm 3100
Maximum digging height mm 2600
Maximum digging depth mm 1780
Walking speed km/h 2.2
Hydraulic flow L/min 25
Swing speed 10″/360°
Climbing angle 40°
Arm swing Left85°Right45°

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.

Ant Cloud Intelligent Equipment (Shandong) Co., Ltd.
