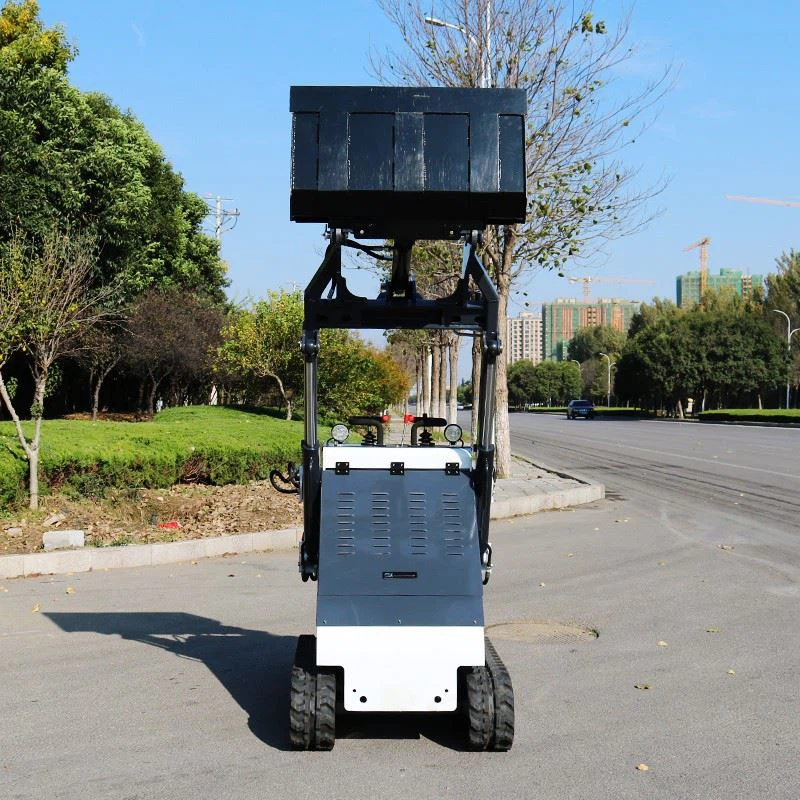

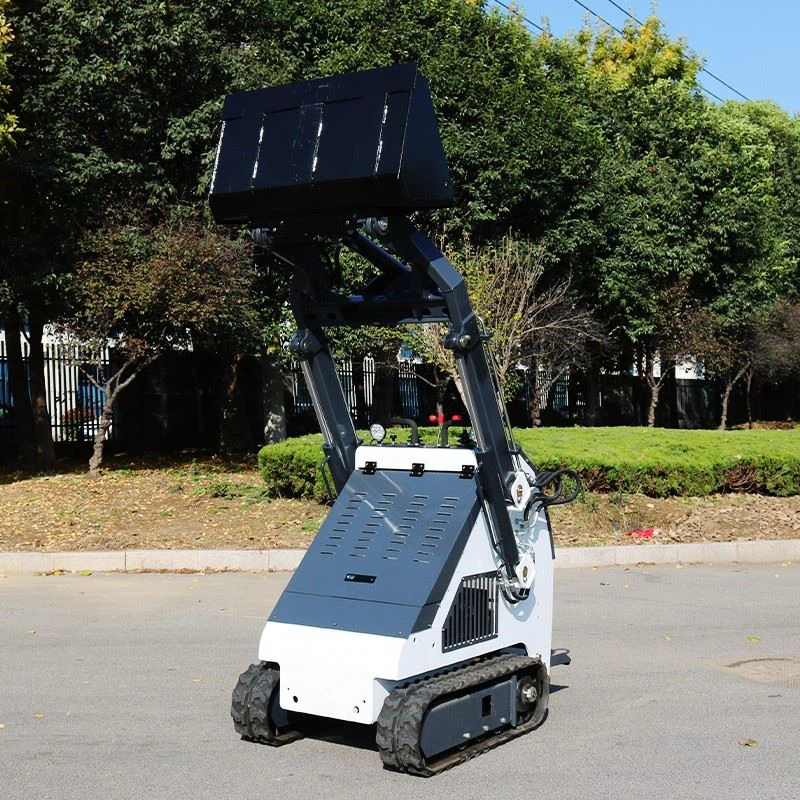

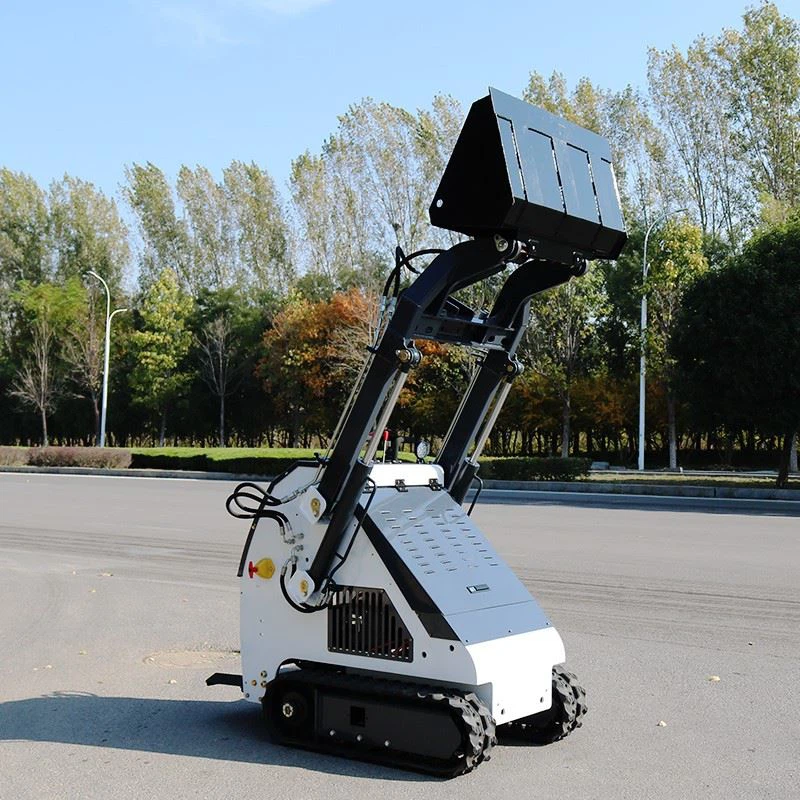

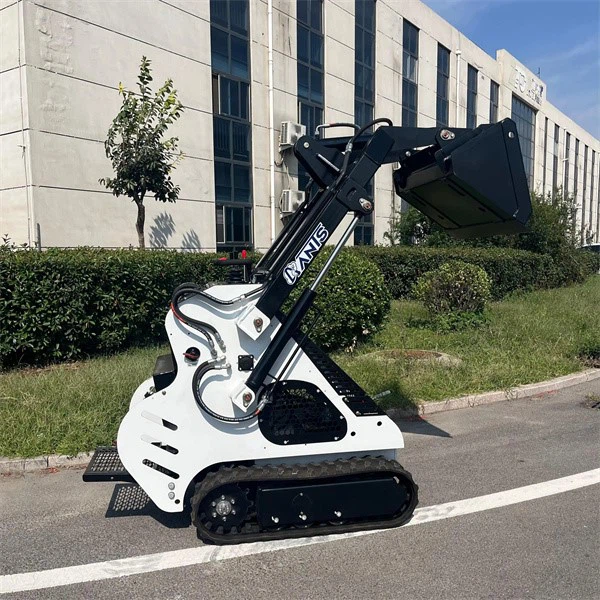

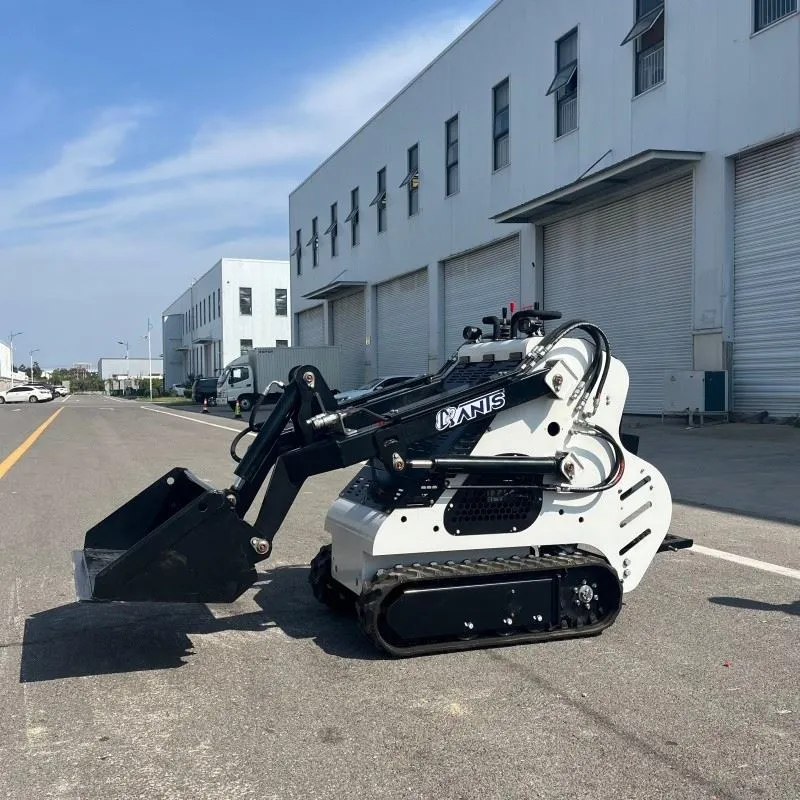

Hydraulic Electric Compact Loader

This mobile skid steer loader has a compact body but powerful hydraulic capacity. Its crawler design allows it to pass smoothly on any terrain.

Share This Product, Choose Your Platform!

Product Details

This electric skid steer loader may be small, but it packs a punch. It’s got a strong hydraulic system and can handle heavy loads with ease. Thanks to its tracked design, it moves smoothly across different terrains – whether you’re working on a farm, in the garden, or at a construction site. Plus, the electric drive keeps things quiet and clean – no fumes, no noise, just easy operation and simple maintenance.

Product Parameter:

Product Name mini skid steer loader LWH 2400×830×1374mm
Bucket Capacity 0.12m³ Chassis width 1330/990-1300
Max working height 1185kg Max working height 2178mm
Max lifting power 850kg Wheelbase 705mm
Speed 0 – 6km/h Bucket width 835mm
System Pressure 20MPa Turning radius 1850mm
Engine Model VANGUARD Max pin height 1890
Main pump Qty: 2 Max dump height 620
Flow of main pump 36L/min Bucket swing angle 79°
The height from the ground 90mm Bucket unloading angle 36°

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
