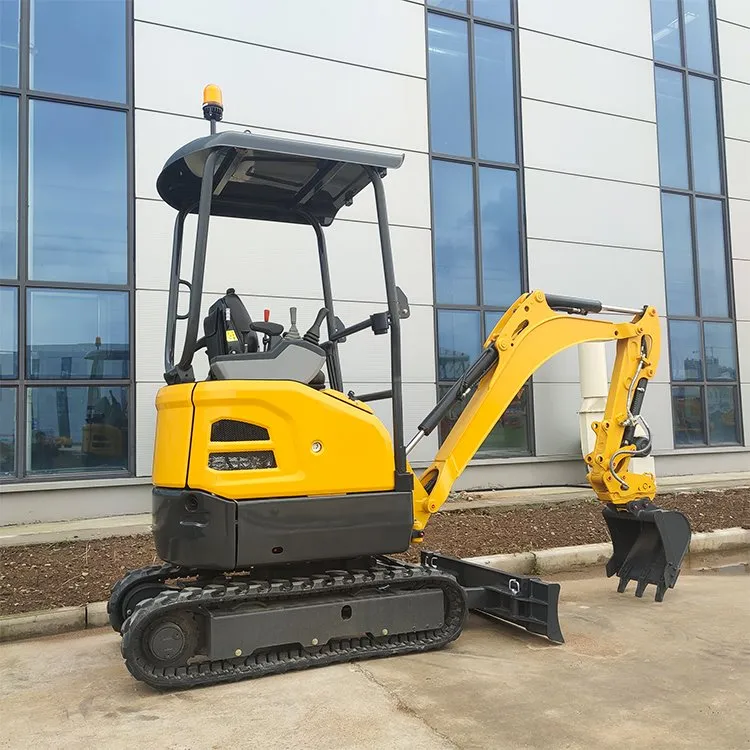

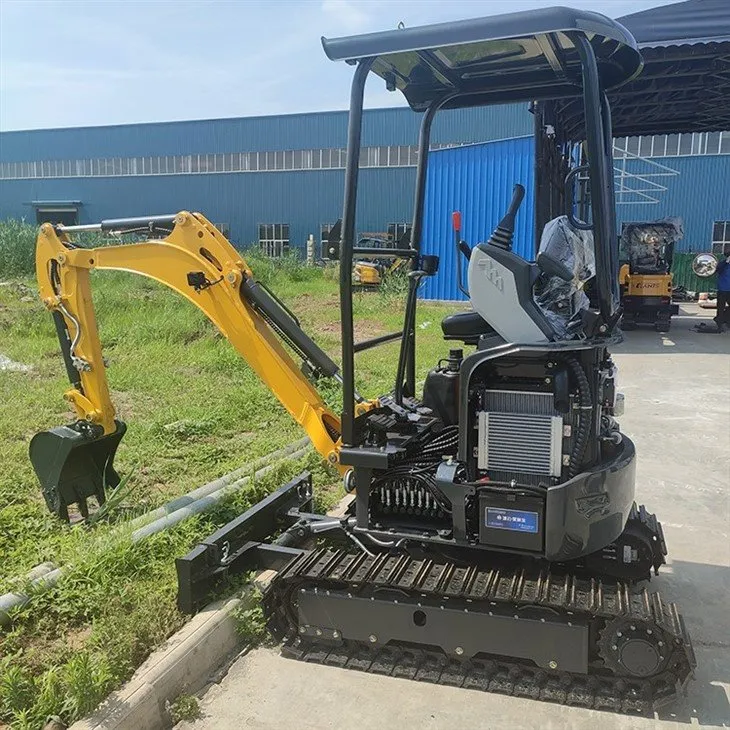

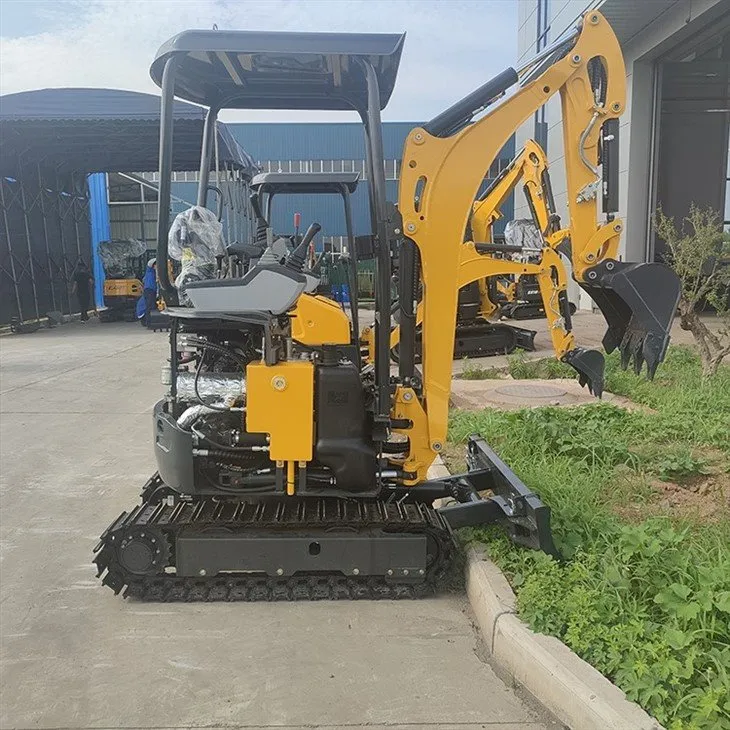

Mini Excavator Landscaping

A mini excavator is a type of excavator designed for a wide range of uses. This kind of excavator is mainly used for digging ditches, digging tree pits, transporting seedlings, dismantling facilities and other operations. It has the characteristics of lightweight, simple operation, high efficiency and so on, suitable for all kinds of terrain and environment.

Share This Product, Choose Your Platform!

Product Details

A mini excavator is a type of excavator designed for a wide range of uses. This kind of excavator is mainly used for digging ditches, digging tree pits, transporting seedlings, dismantling facilities and other operations. It has the characteristics of lightweight, simple operation, high efficiency and so on, suitable for all kinds of terrain and environment.

PROJECT UNIT ME12H ME10H ME08H
Mechine weight kg 980 930 750
Bucket voluem m³ 0.025 0.025 0.02
Engine model Koop192fe/B&S Koop192fe/B&S Koop192fe/B&S
Decibels within l meter Dba 115 115 115
L*W*H mm 2590*1000*1450 2590*1000*1450 2481*720*1550
Chassis width mm 1000/800-1000 1000/800-1000 720
Maximum digging radius mm 3100 3100 2760
Maximum digging height mm 2600 2600 2400
Maximum digging depth mm 1780 1780 780
Walking speed km/h 3 2.2 2.2
Hydraulic flow L/min 27 25 20
Swing speed 10″/360° 10″/360° 10″/360°
Climbing angle 45° 40° 30°
Arm swing Left85°Right45° Left85°Right45° Left85°Right45°

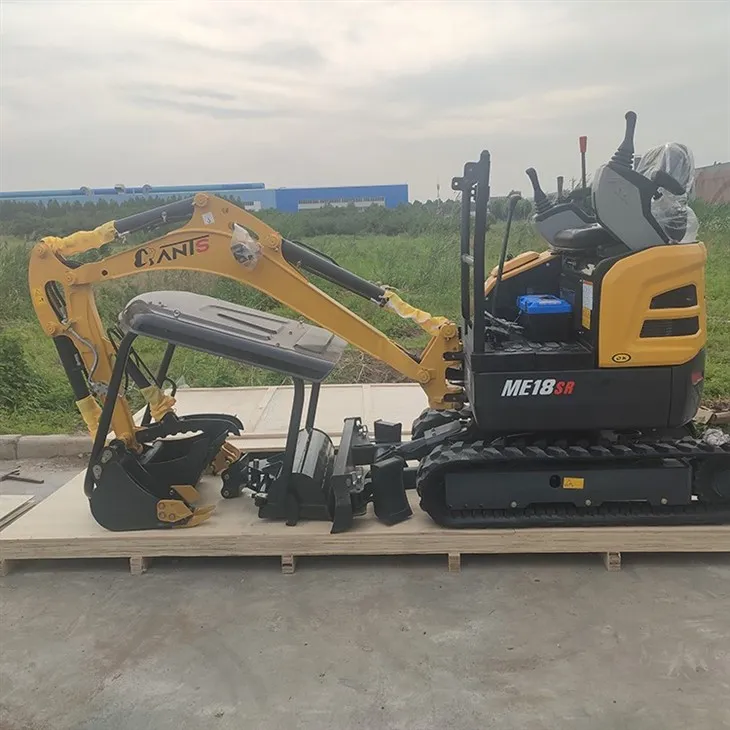

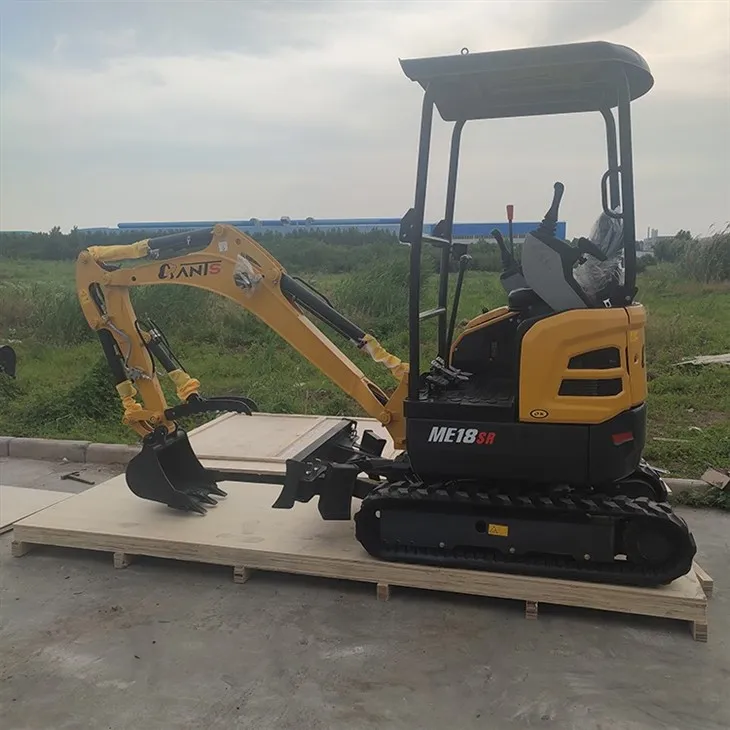

PROJECT UNIT ME15H ME18H ME20H
Machine weight kg 1400 1830 1980
Bucket volume m³ 0.035 0.04 0.06
Engine model Kubota/Koop B&S 2 cylinders Kubota/Yanmar Kubota/Yanmar
Decibels within 1 meter Dba 95-105 95 95
L*W*H mm 3050*1100*1500 3050*1100*1500 3050*1100*1500
Chassis width mm 1100/990-1300 1330/990-1300 1330/990-1300
Maximum digging radius mm 3150 3910 4120
Maximum digging height mm 2700 3535 3500
Maximum digging depth mm 1880 2270 2270
Walking speed km/h 2.2 2.2/4.3 2.2/3
Swing speed 10″/360° 10″/360° 10″/360°
Pump type Gear pump Variable volume pump
Max. discharge flow L/min 33 64.4 54
Swing motor type HVSE 5VS28(reducer) Eaton SW2.5K(reducer)
Grade ability 45° 58° 58°
Hydraulic system HVSE NACHI
Walking motor AIDI:FTMO1A(reducer) Eaton (reducer)

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
