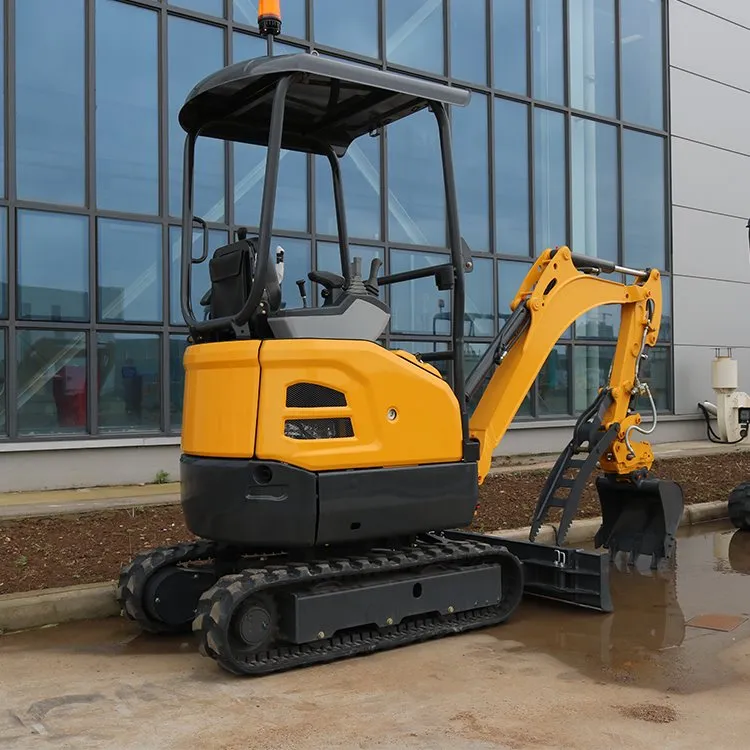

Mini Hydraulic Excavator
Equipped with a comfortable cab, with a wide field of vision, easy operation, safety and reliability. The rotating platform can rotate the fuselage 360 degrees to facilitate operation in different directions. The front part of the body is equipped with a boom side shift device to realize the direct excavation work similar to the wall root zone, without the need to move the fuselage frequently. More suitable for small site operation. The crawler type walking mechanism can drive stably under various terrain conditions and has strong off-road performance.
Product Details
1. Small size, light volume, strong power, can work easily.
2. Simple operation, suitable for various sites, construction sites and farmland, orchards and other places, to provide users with more convenient, effective and convenient tools.
3. Versatility: can complete a variety of different job tasks, such as digging, moving, rooting, backfilling, etc., and can install different tools and equipment for use.
3. Flexibility: small size, high flexibility, can be operated in any terrain.
4. Save labor costs: it can replace a lot of manpower, save the manual labor of large fields and orchards, and also improve the construction efficiency and quality.
In addition, small excavators are also widely used in farmland and orchards. In farmland, small excavators can be used for the construction of ditches, embankments, ponds, etc., and can also be used for the adjustment of farmland soil. In orchards, small excavators can be used for the cleaning of fruit trees for drinking and decontamination, as well as the pruning and reshaping of roots. Save the human and material costs in the process of agricultural production, and can improve the efficiency and quality of agricultural production.
| ENGINE | |
|---|---|
| Model | KUBOTA D902 |
| Type | Vertical, water cool, 4-cycle |
| No. of cylinder | 3 |
| Emission | EPA Tier 4 Final / Europe Stage V |
| Displacement | 0.898L |
| Power output | 11.8kW / 2300rpm |
| HYDRAULIC SYSTEM | |
| Type | Axial piston-variable displacement |
| Max. hydraulic flow | 28L/min |
| DIGGING FORCE (ISO6015) | |
| Bucket digging force | 16kN |
| Arm digging force | 9.5kN |
| DRIVE SYSTEM | |
| Type | Axial piston motor |
| Track roller | 2 × 3 |
| Travel speed | 2.2 / 4.3 km/h |
| Max. Drawbar pull | 18kN |
| Grade ability | 58% |
| SWING SYSTEM | |
| Swing motor type | Cycloidal motor |
| Swing speed | 0–9.5r/min |
| Brake type | Pressure release mechanical braking |
| REFILLING CAPACITIES & LUBRICATIONS | |
| Fuel tank | 19L |
| Cooling system | 5L |
| Engine oil | 3.7L |
| Hydraulic oil tank | 20L |
| OPERATING WEIGHT AND GROUND PRESSURE | |
| Shoe width | 230mm |
| Ground pressure | 29kPa |
| Operating weight | 1800kg |
| DIMENSIONS / mm (Transport & Undercarriage) | |
| A — Transport length (arm lowered) | 3570 |
| B — Overall height (top of canopy) | 2400 |
| C — Undercarriage width (Retracted) | 990 |
| D — Undercarriage width (Extended) | 1300 |
| E — Undercarriage length | 1587 |
| F — Upperbody width (zero tail) | 990 |
| DIMENSIONS / mm (Working Range) | |
| A — Max. digging height | 3535 |
| B — Max. dumping height | 2445 |
| C — Max. digging depth | 2270 |
| D — Max. vertical digging depth | 1910 |
| E — Max. digging radius | 3910 |
| F — Max. digging radius, at ground level | 3845 |
| G — Min. swing radius of work equipment | 1495 |
| H — Min. tail swing radius | 650 |
| I — Ground clearance of counterweight | 450 |
| J — Maximum Dozer Lift Height | 280 |
| K — Maximum Dozer Dig Depth | 190 |
| L — Maximum Boom Offset (LH) | 385 |
| M — Maximum Boom Offset (RH) | 510 |
| N — Boom Swing Angle (LH & RH) | 57° / 61° |
Applicable Scenarios
Construction
Gardens and orchards
Indoor demolition
Digging trenches
