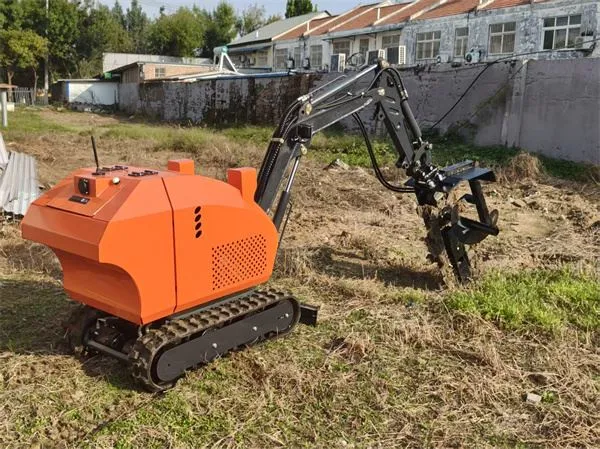

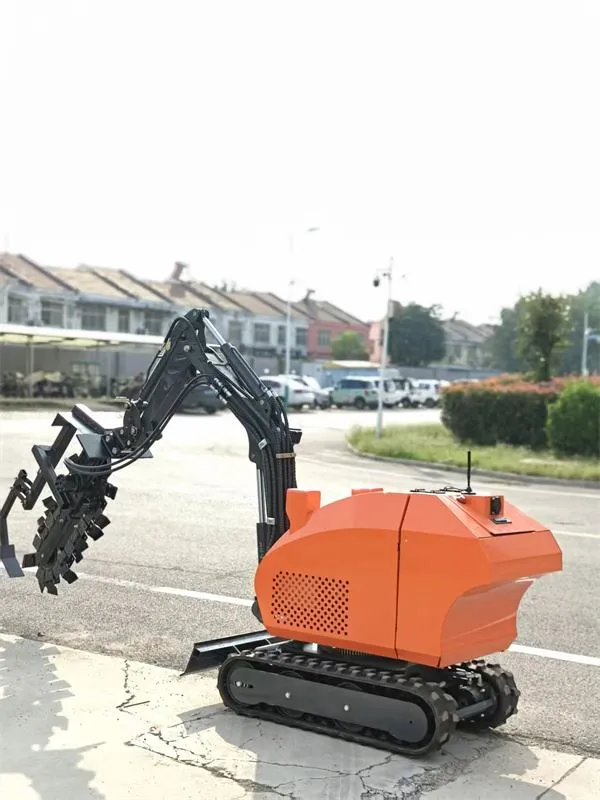

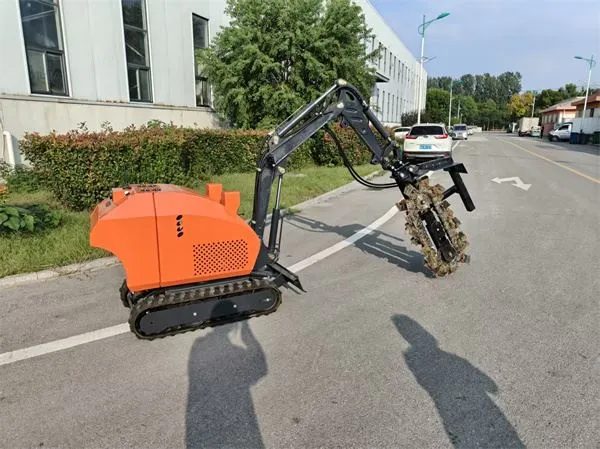

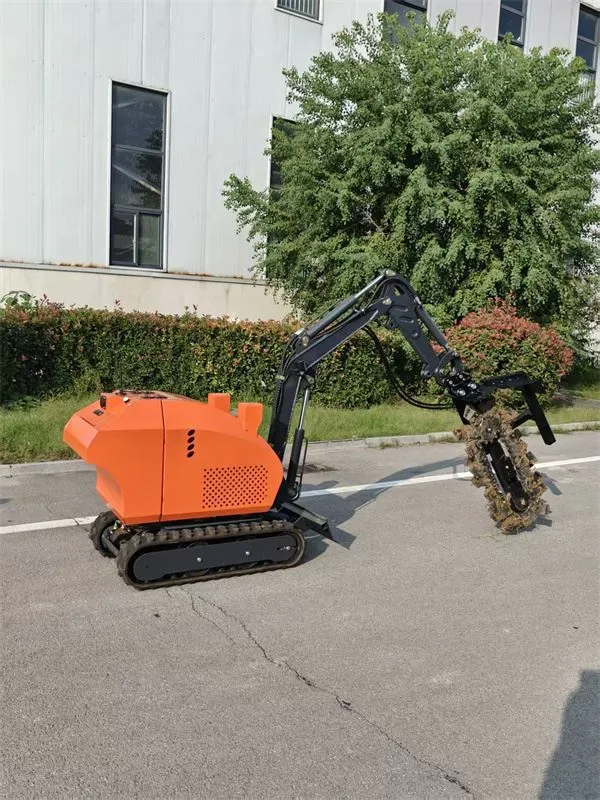

Mini Hydraulic Trencher Digger

The electric trencher is compact yet powerful, designed for precise trenching in gardens, farms, and construction sites.

Share This Product, Choose Your Platform!

Product Details

This electric trencher is designed for increased efficiency and precision in compact spaces, replacing manual trenching and saving costs. Don’t be fooled by its size; it can dig trenches up to 600mm deep, and its power is stable and controllable. Its hydraulic track system provides strong traction even on uneven surfaces, while its electric drive ensures quiet, clean operation and zero emissions. It’s ideal for farms and small gardens with limited space. This trencher is easy to operate and low-maintenance.

Product Parameters:

Product Name ME10 LWH 2600*722*1350mm
Machine weight 780KG Minimum ground clearance 90mm
Bucket capacity 0.025m³ Walking speed 2.2km/h
Lithium battery 180-220AH 72V Continuous rotation speed 13rpm
DC Motor 4.5KW/rpm Side swing angle left 65°
Rated engine output 8.2 KW/rpm Side swing angle right 45°
Total length 2950mm
Total height 1450mm
Overall width 1000mm
Track width 180mm
Rear turning radius 825mm
Total track length 1230

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

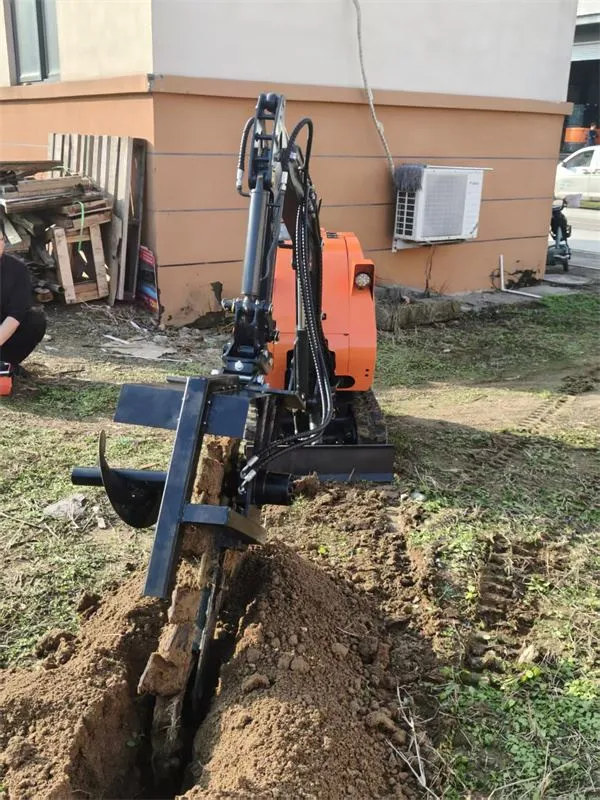

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
