Mini Miner Rc Excavator

Remote control small excavator is a remote control, remote control distance 150-300 meters, using hydraulic drive, and has the ability to fine work, accurate positioning, flexible operation, equipped with all the functions of the internal combustion excavator, optional image return visual system, can replace the human in toxic (pollution), flammable, explosive, easy to collapse, Multi-directional, remote control excavation, demolition and other operations in dangerous and harsh environments such as strong radiation greatly improve working conditions and reduce casualties. Widely used in metallurgy, construction, cement, nuclear industry and mining and other industries.

Share This Product, Choose Your Platform!

Product Details

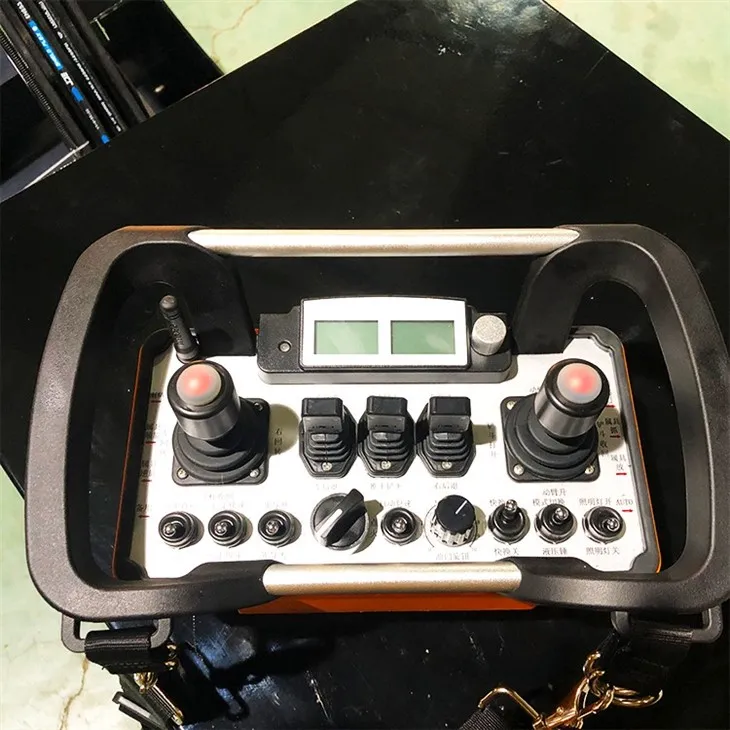

Industrial remote control system, high precision of action.

A variety of sizes are available.

Support customization to meet different needs

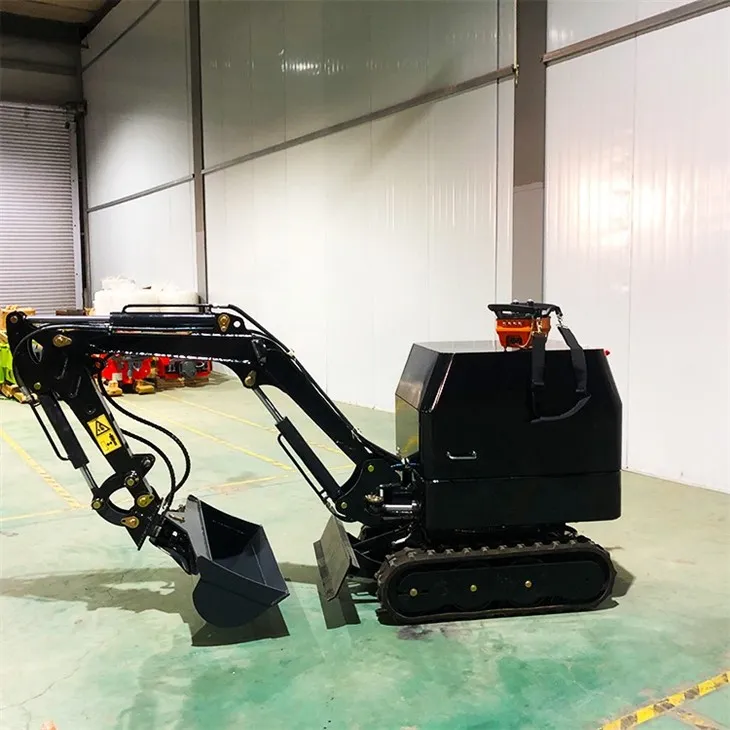

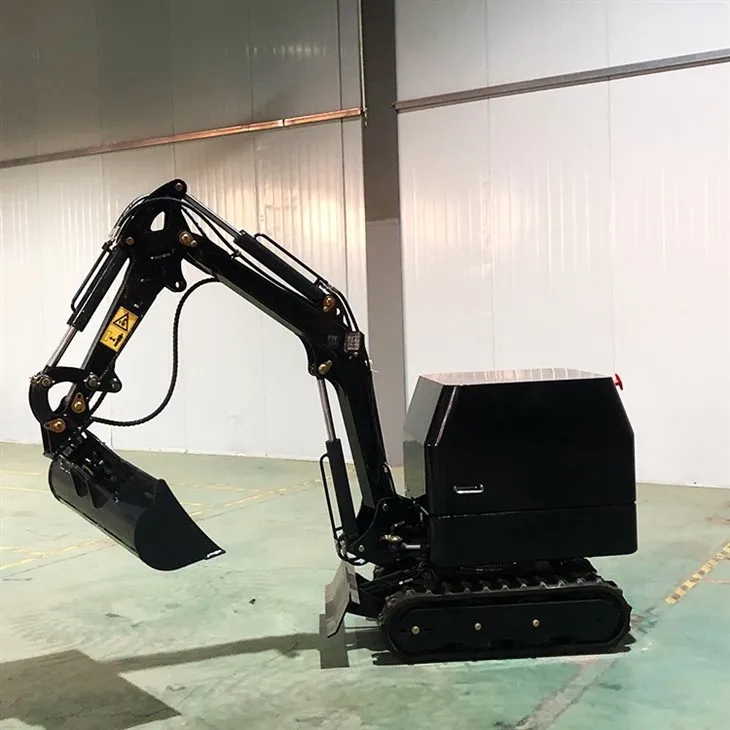

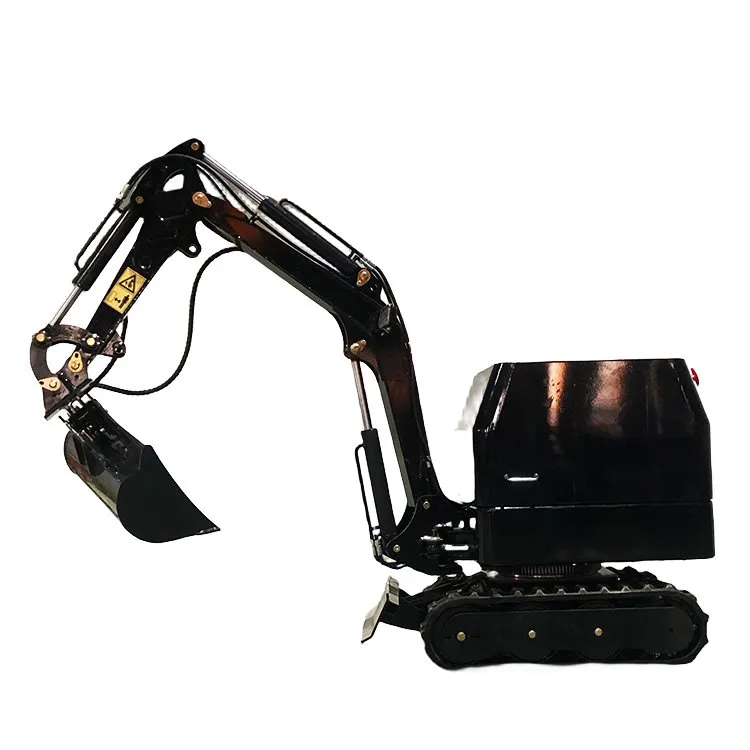

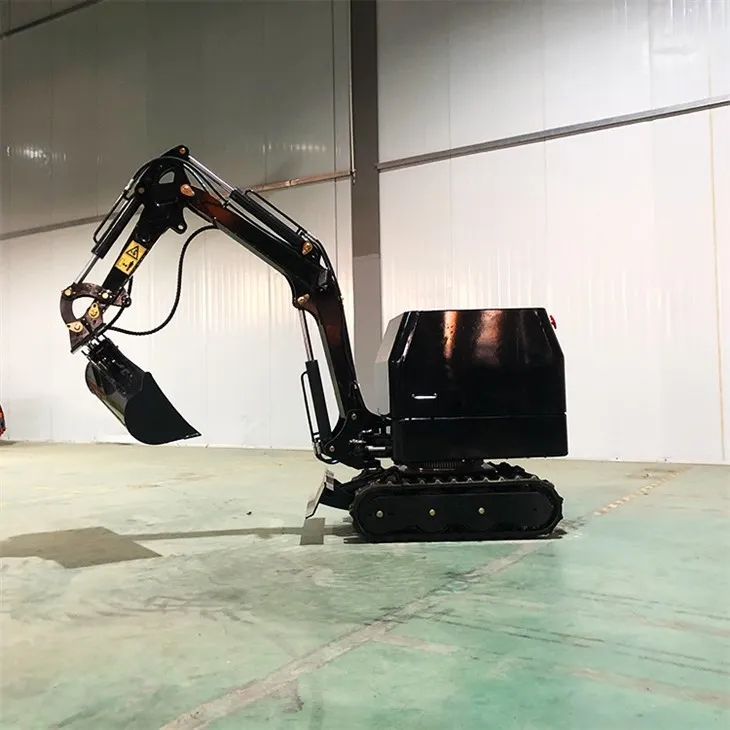

Mini miner rc excavator

Remote control small excavator is a remote control, remote control distance 150-300 meters, using hydraulic drive, and has the ability to fine work, accurate positioning, flexible operation, equipped with all the functions of the internal combustion excavator, optional image return visual system, can replace the human in toxic (pollution), flammable, explosive, easy to collapse, Multi-directional, remote control excavation, demolition and other operations in dangerous and harsh environments such as strong radiation greatly improve working conditions and reduce casualties. Widely used in metallurgy, construction, cement, nuclear industry and mining and other industries.

Optional engine and electric power, and can be customized according to the different needs of customers, to meet your different work needs.

MEO5 SPECIFICATIONS:

Project Unit ME10E RC ME08E RC ME05E RC
Machine weight kg 930 800 720
Bucket volume m³ 0.025 0.025 0.02
Engine model Battery LiFePO4/LiCoMnNiO2 LiFePO4/LiCoMnNiO2 LiFePO4/LiCoMnNiO2
BYD: Lithium battery + BMS 72v/ah 180/210 160/180 148
Working hours h 8/10 8/10 7
PMSM motor 72v/Kw 4.5 4 3.5
Peak power Kw 9 8 7
Power consumption Kwh 1.2–1.7 1.2–1.4 1–1.4
Decibels within 1 meter Dba < 50 < 50 < 50
L × W × H mm 2590×1000×1350 2481×720×1280 1600×650×1250
Track width mm 180 150 150
Machine width mm 1000 720 650
Max digging radius mm 3100 2400 2400
Max digging height mm 2600 2200 2200
Max digging depth mm 1780 1220 980
Walking speed km/h 2.2–3 2.2 2.2
Hydraulic flow L/min 27 23 20
Swing speed 10″ / 360° 10″ / 360° 9″ / 360°
Recommend max tool head weight kg 200 175 115
Climbing angle 45° 40° 30°
Communication method MHz 433 433 433
Hydraulic system Load sensitive Load sensitive Load sensitive

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
