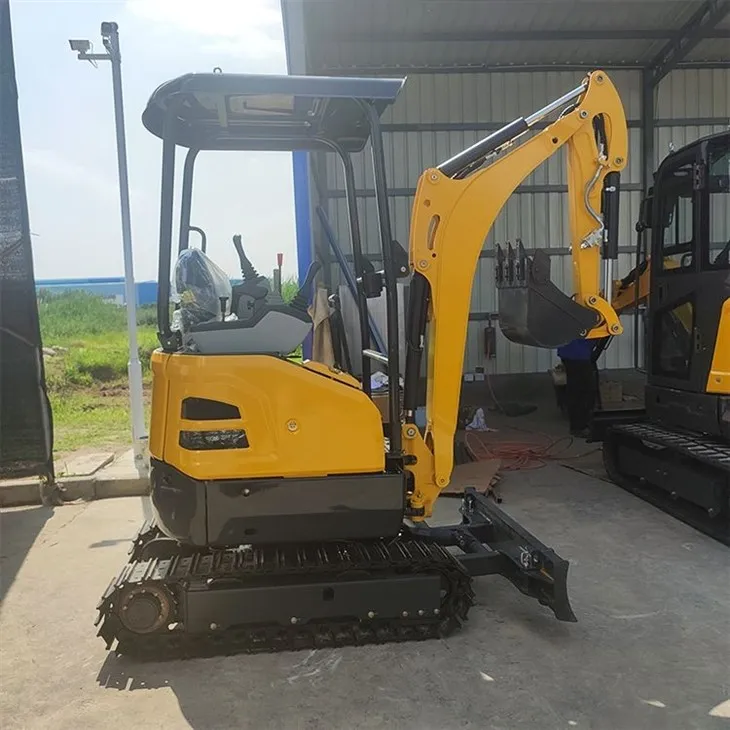

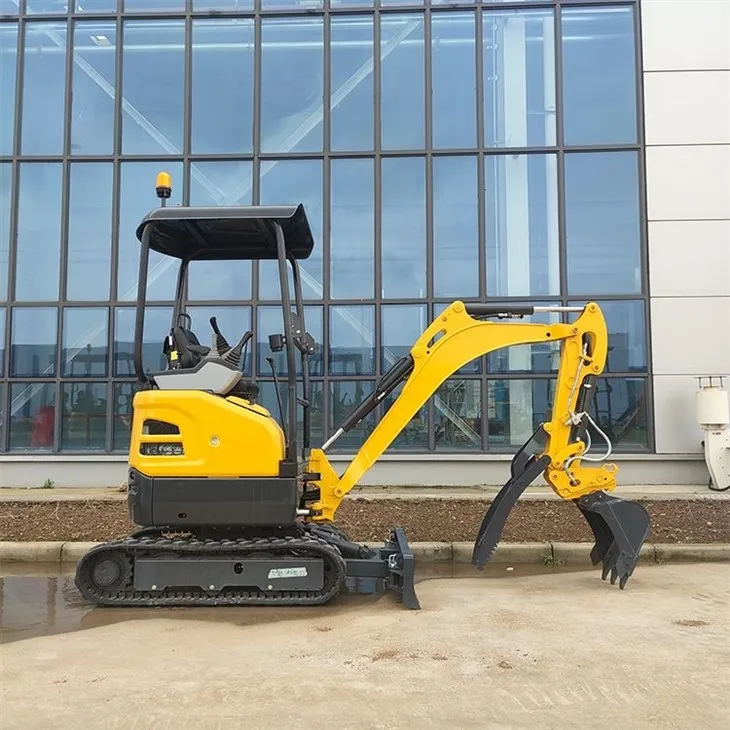

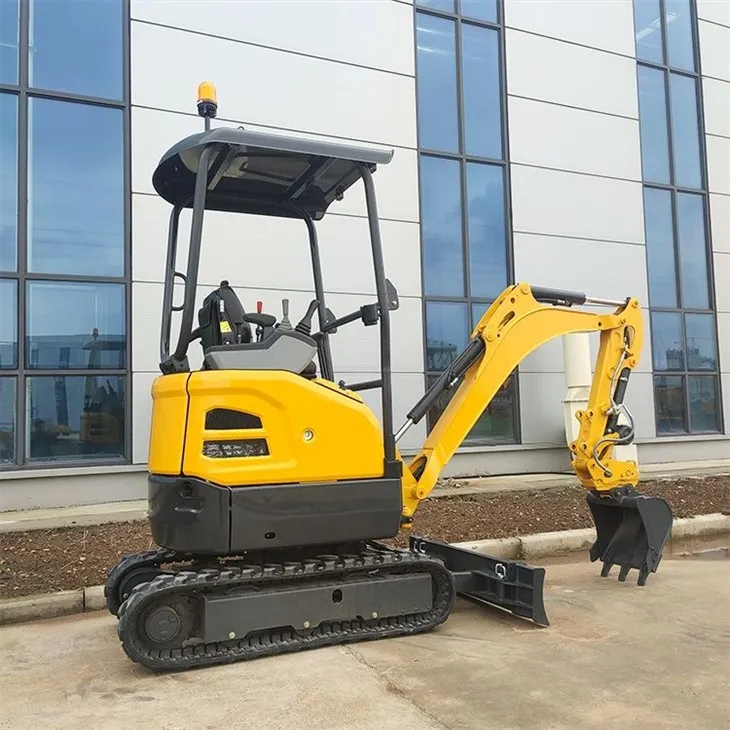

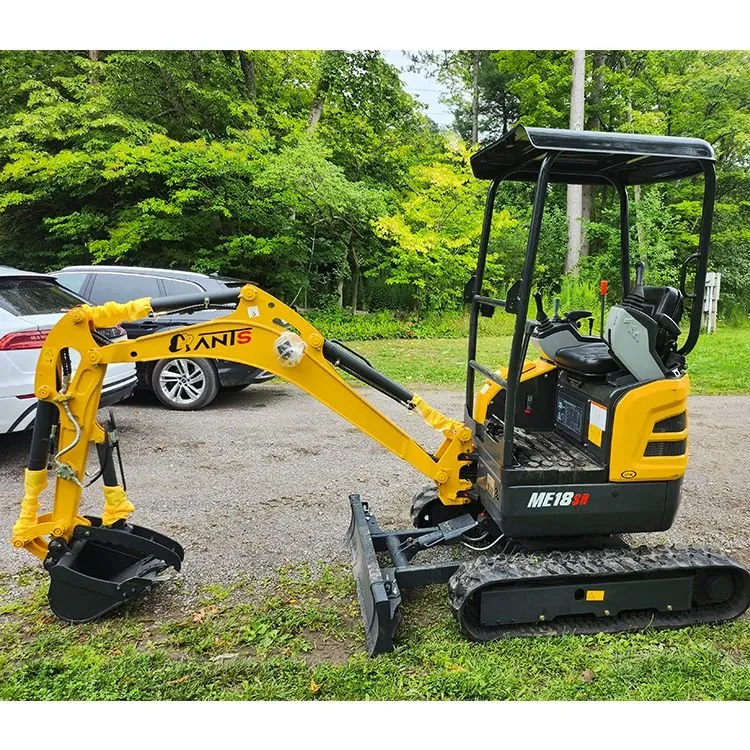

Mini Small Excavator
Excellent performance, large engine power, large digging force; Sufficient materials, reliable quality, easy maintenance; High configuration, convenient operation, suitable for a variety of applications; The seat is comfortable, the sight is clear, the construction is safer, and the work efficiency is improved.
Product Details
1. Excellent working efficiency and cost performance;
2. The standard dozer shovel can level the site, backfill the earth, and increase the stability of the machine;
3. Simple operation, small and flexible, convenient transportation, can work in a narrow site.
4. With the multi-function of digging, crushing, ditching, drilling, dodging, can quickly replace the accessories, the machine utilization rate is greatly improved;
5. Big arm side shift device: the front of the body is equipped with a boom side shift device, so as to truly realize the direct excavation work similar to the wall root zone, without frequent movement of the fuselage. Both sides can easily dig to the outer edge of the track, can be in the wall corner and other space restrictions position work, more suitable for small site work.
| ENGINE | |
|---|---|
| Model | KUBOTA D902 |
| Type | Vertical, water cool, 4-cycle |
| No. of cylinder | 3 |
| Emission | EPA Tier 4 Final / Europe Stage V |
| Displacement | 0.898L |
| Power output | 11.8kW / 2300rpm |
| HYDRAULIC SYSTEM | |
| Type | Axial piston-variable displacement |
| Max. hydraulic flow | 28L/min |
| DIGGING FORCE (ISO6015) | |
| Bucket digging force | 16kN |
| Arm digging force | 9.5kN |
| DRIVE SYSTEM | |
| Type | Axial piston motor |
| Track roller | 2 × 3 |
| Travel speed | 2.2 / 4.3 km/h |
| Max. Drawbar pull | 18kN |
| Grade ability | 58% |
| SWING SYSTEM | |
| Swing motor type | Cycloidal motor |
| Swing speed | 0–9.5r/min |
| Brake type | Pressure release mechanical braking |
| REFILLING CAPACITIES & LUBRICATIONS | |
| Fuel tank | 19L |
| Cooling system | 5L |
| Engine oil | 3.7L |
| Hydraulic oil tank | 20L |
| OPERATING WEIGHT AND GROUND PRESSURE | |
| Shoe width | 230mm |
| Ground pressure | 29kPa |
| Operating weight | 1800kg |
| DIMENSIONS / mm (Transport & Undercarriage) | |
| A — Transport length (arm lowered) | 3570 |
| B — Overall height (top of canopy) | 2400 |
| C — Undercarriage width (Retracted) | 990 |
| D — Undercarriage width (Extended) | 1300 |
| E — Undercarriage length | 1587 |
| F — Upperbody width (zero tail) | 990 |
| DIMENSIONS / mm (Working Range) | |
| A — Max. digging height | 3535 |
| B — Max. dumping height | 2445 |
| C — Max. digging depth | 2270 |
| D — Max. vertical digging depth | 1910 |
| E — Max. digging radius | 3910 |
| F — Max. digging radius, at ground level | 3845 |
| G — Min. swing radius of work equipment | 1495 |
| H — Min. tail swing radius | 650 |
| I — Ground clearance of counterweight | 450 |
| J — Maximum Dozer Lift Height | 280 |
| K — Maximum Dozer Dig Depth | 190 |
| L — Maximum Boom Offset (LH) | 385 |
| M — Maximum Boom Offset (RH) | 510 |
| N — Boom Swing Angle (LH & RH) | 57° / 61° |
Applicable Scenarios
Construction
Gardens and orchards
Indoor demolition
Digging trenches
