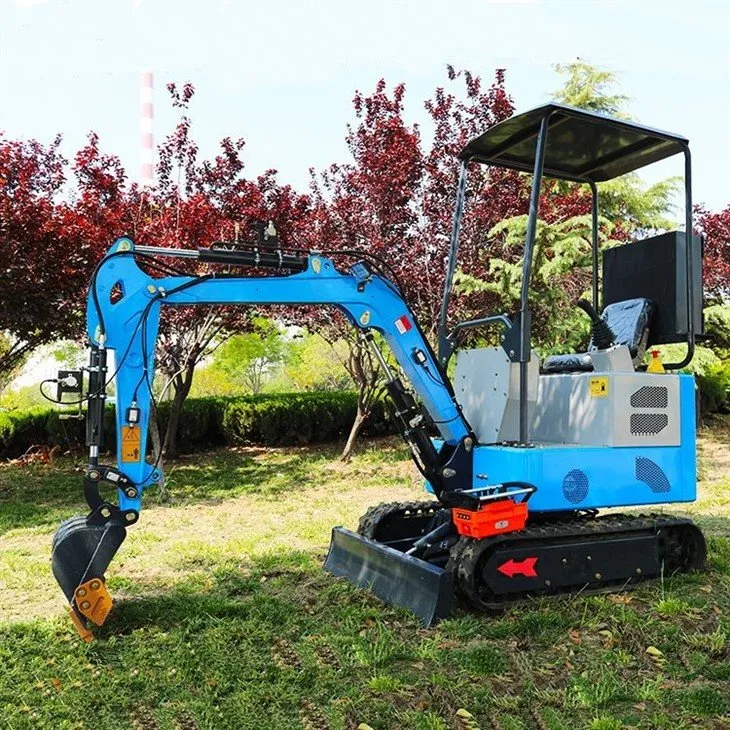

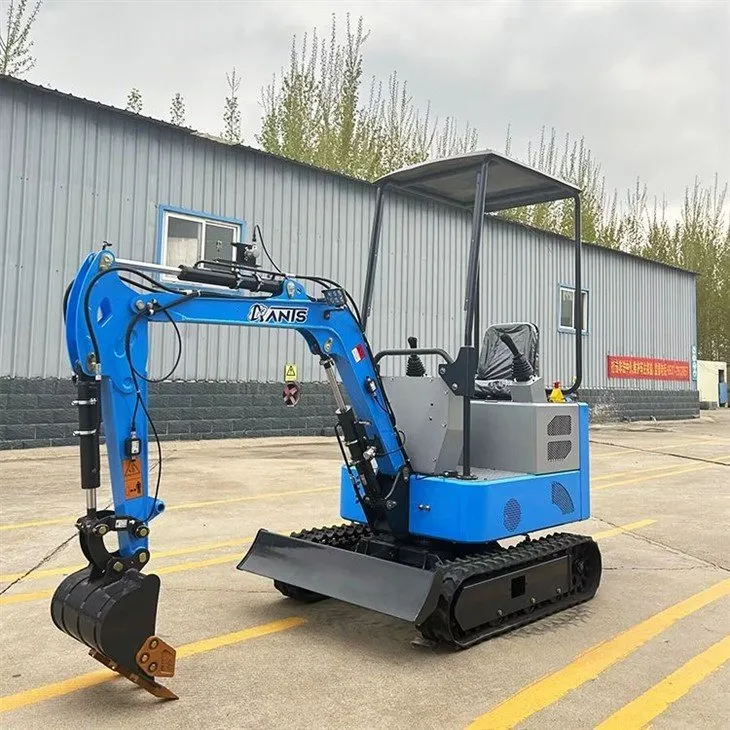

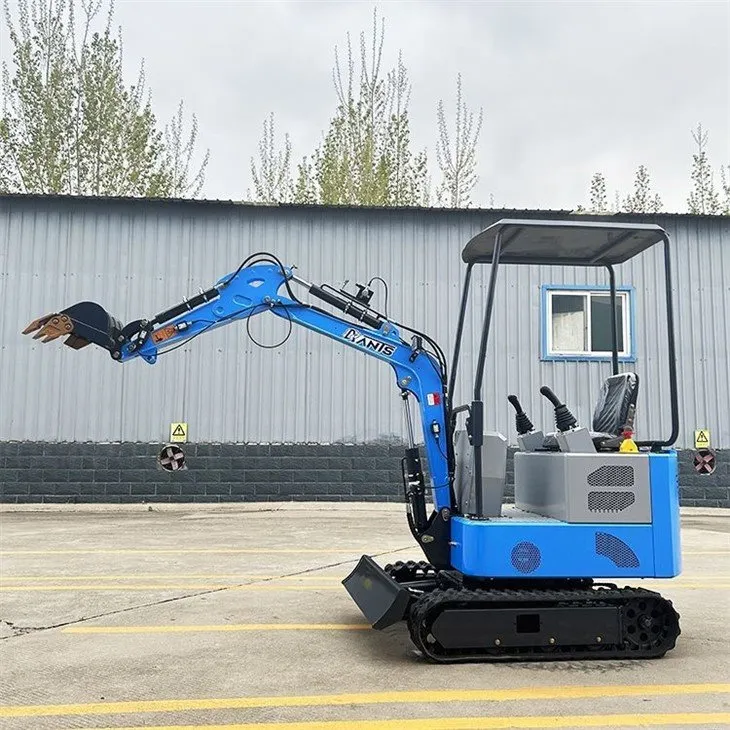

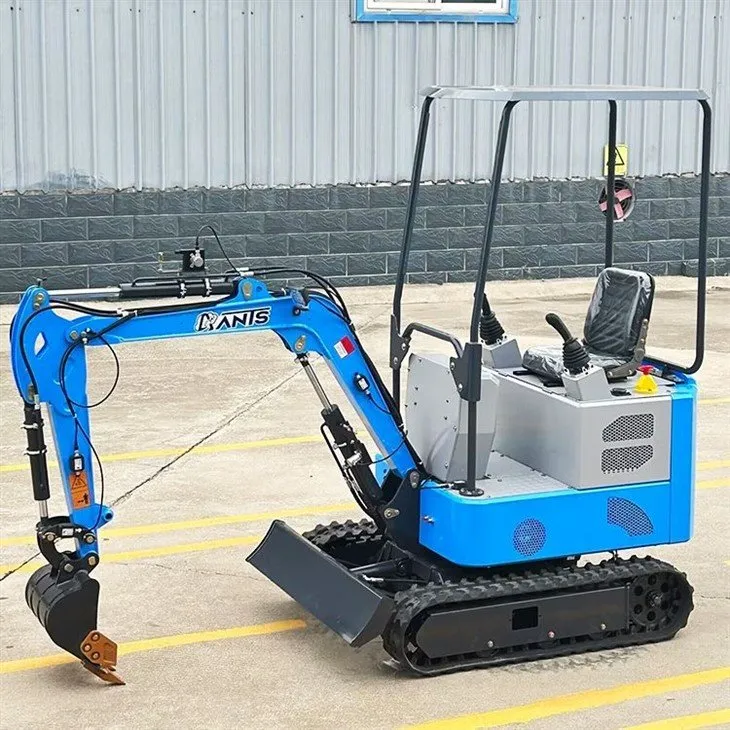

Rc Mining Excavator

Remote control mining excavator is a special kind of excavator, which is operated by remote control technology. It has a wide range of applications in harsh environments such as mines, which can improve work efficiency and safety.

Share This Product, Choose Your Platform!

Product Details

Industrial grade remote control is used.

Remote control distance 150-300 meters.

Instead of manual work in high-risk places.

rc mining excavator

Remote control mining excavator is a special kind of excavator, which is operated by remote control technology. It has a wide range of applications in harsh environments such as mines, which can improve work efficiency and safety.

The main features of remote control mining excavators include:

1. Remote control operation: The excavator is controlled by remote control, which reduces the direct exposure of the operator to the dangerous environment and improves the safety.

2. Strong mining capacity: Mining excavators need to have a large mining capacity and durability to cope with the harsh mining environment and high intensity work requirements.

3. Adapt to harsh environment: Excavators usually need to work on rough, muddy or stony ground, so they need to have good stability and off-road ability.

4. Efficient working performance: Mining excavators need to have efficient working performance, including fast digging speed, large capacity loading bucket and efficient unloading capacity, so as to improve work efficiency.

PROJECT UNIT ME15E
Machine weight kg 1400
Bucket volume 0.035
Engine model Battery LiFePO4/LiCoMnNiO2
BYD:Lithium battery+BMS 72v/ah 210/300/400
Working time h 7/9/12
PMSM motor 72v/Kw 5.5
Peak power Kw 10
Charging time h 4-8
Power consumption Kwh 1.5-2.5
Decibels within 1 meter Dba < 50
L*W*H mm 3050*1100*1500
Chassis width mm 1100/990-1300
Maximum digging radius mm 3150
Maximum digging height mm 2700
Maximum digging depth mm 1880
Walking speed km/h 2.2
Swing speed 10″/360°
Pump type Gear pump
Max. discharge flow L/mim 33
Swing motor type
Grade ability 45°
Hydraulic system

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
