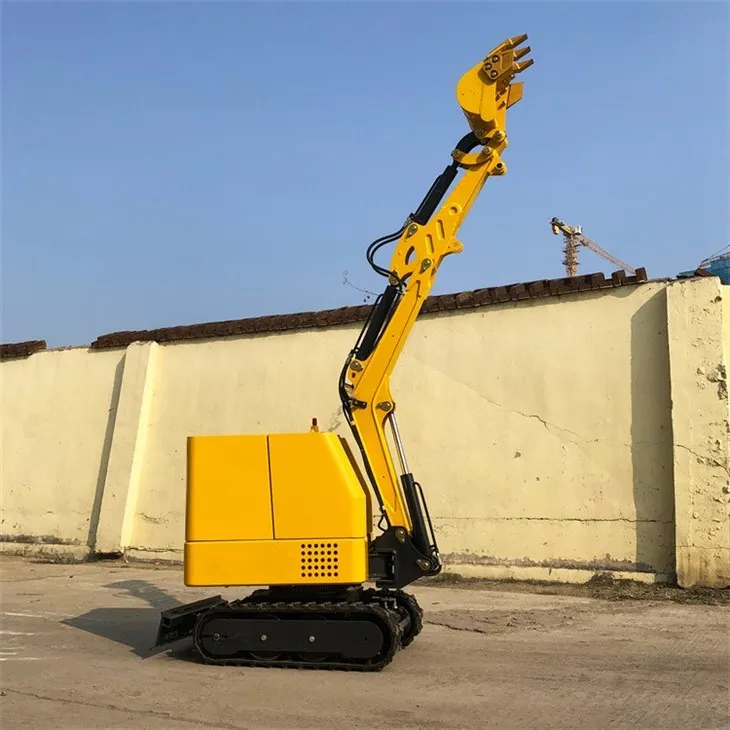

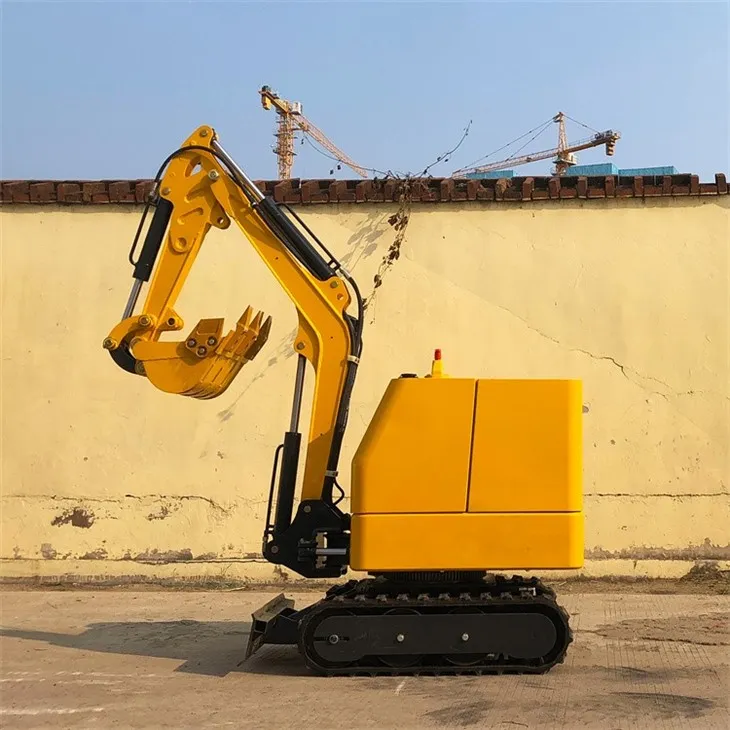

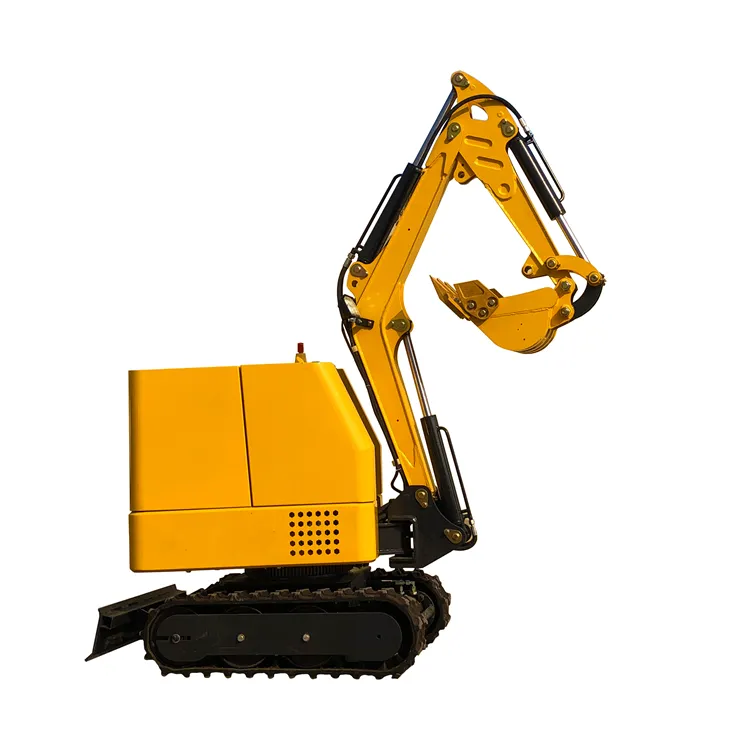

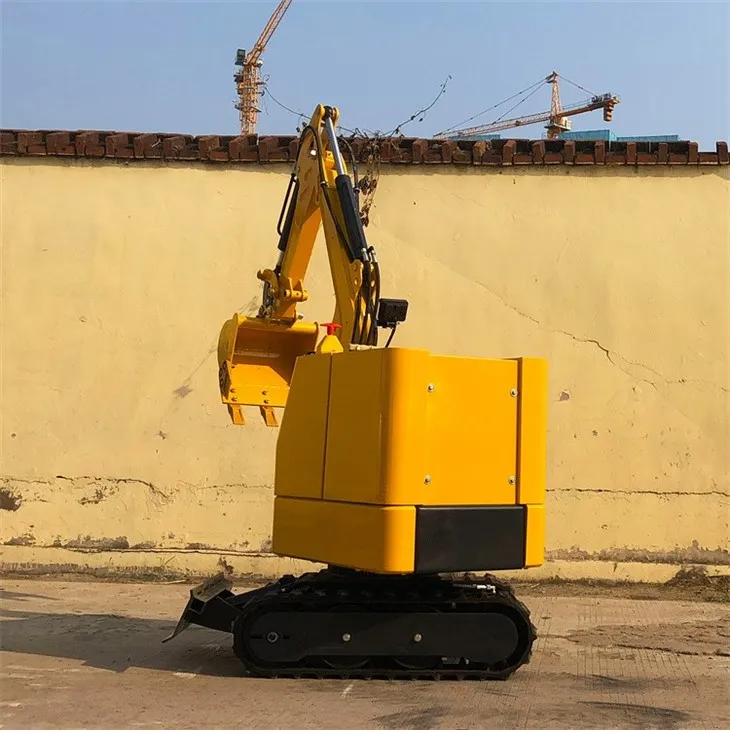

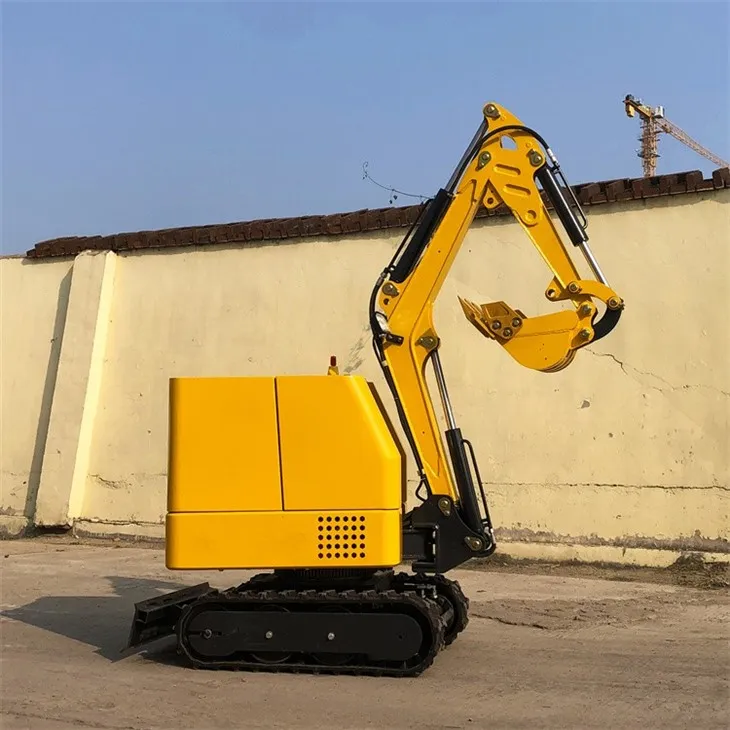

Remote Control Mini Excavator

Large capacity lithium battery, can meet the needs of long-term work. Indoor operation no emissions, low noise. Remote control, can be installed image return system.

Share This Product, Choose Your Platform!

Product Details

1. Small and flexible fuselage: it can easily enter space limited places, can work independently, and reach the job site; Light weight, small size, can be carried out on a small load bearing work platform, easy to transfer the working face.

2. Operation environmental protection: electro-hydraulic drive, low noise, work does not disturb the public. Intelligent power control system is adopted to make full use of power.

3. Safe and efficient: remote control operation, humanized design, safe operation and good sight; Double section/three arm structure, accurate positioning, flexible operation, large working range.

4. A multi-purpose machine: can be equipped with hydraulic hammer, hydraulic pliers, grab, reamer and hydraulic drill and other tool heads, to meet different operating requirements.

PROJECT UNIT MEO5E
Machine weight kg 620
Bucket volume m³ 0.02
Engine model Battery LiFePO4/LiCoMnNio2
BYD:Lithium battery+BMS 72v/ah 148
Working time h 8
PMSM motor 72v/Kw 3.5
Peak power Kw 7
Charging time h 4-8
Power consumption Kwh 1.2-1.4
Decibels within 1 meter Dba < 50
L*W*H mm 1600*640*1350
Chassis width mm 600
Maximum digging radius mm 2760
Maximum digging height mm 2400
Maximum digging depth mm 1200
Walking speed km/h 2.2
Hydraulic flow L/mim 20
Swing speed 10″/360°
Climbing angle 30°

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
