Remote Controlled Construction Excavator

Small remote control excavator, through remote control operation, can reduce the operator's contact time with the environment, improve production efficiency. Avoid direct exposure of operators to dangerous environments to reduce the occurrence of safety accidents. Small remote control excavator can adapt to harsh working environment, such as mud, stone and other ground, with good stability performance.

Share This Product, Choose Your Platform!

Product Details

Different control methods can be selected according to your needs.

Small excavator models 0.5ton-3.5ton.

Electric drive and engine optional.

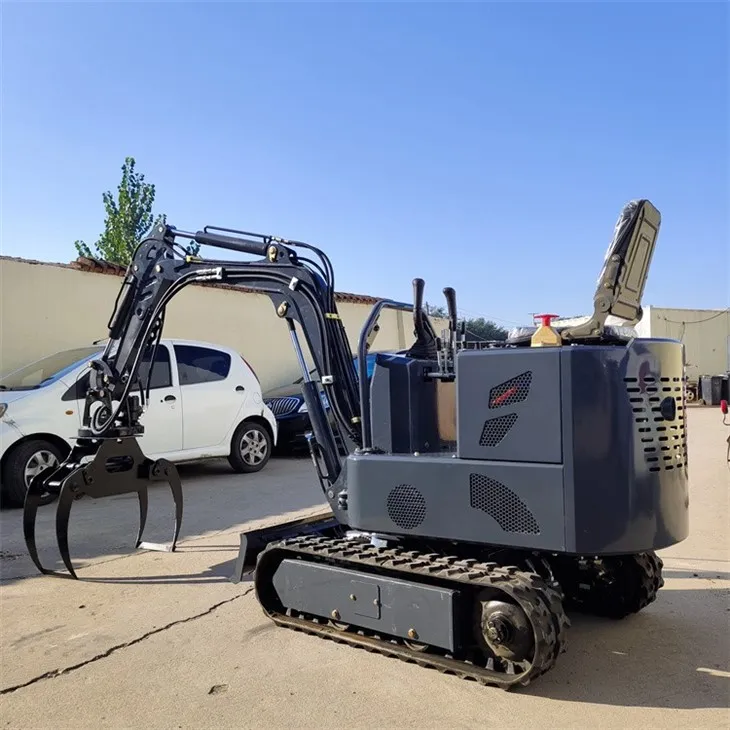

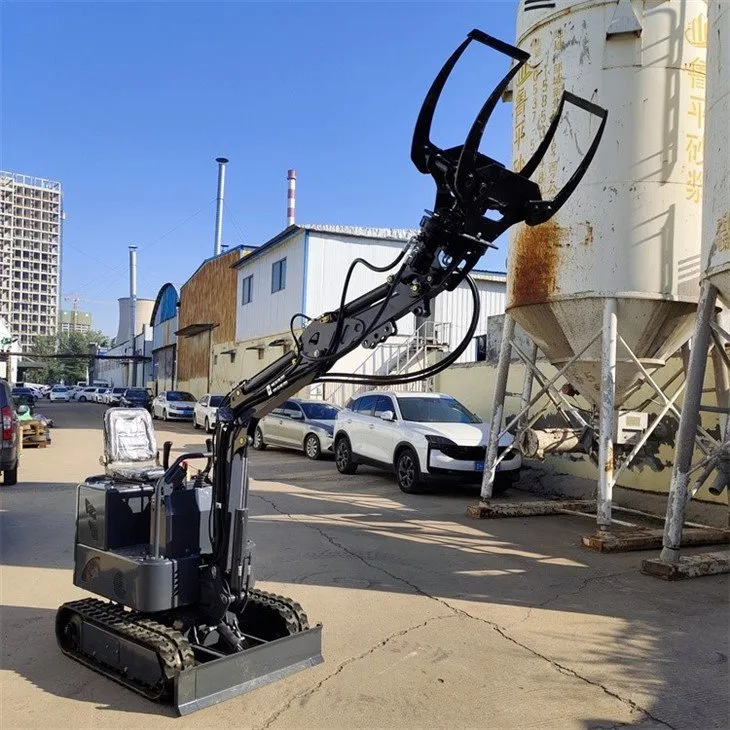

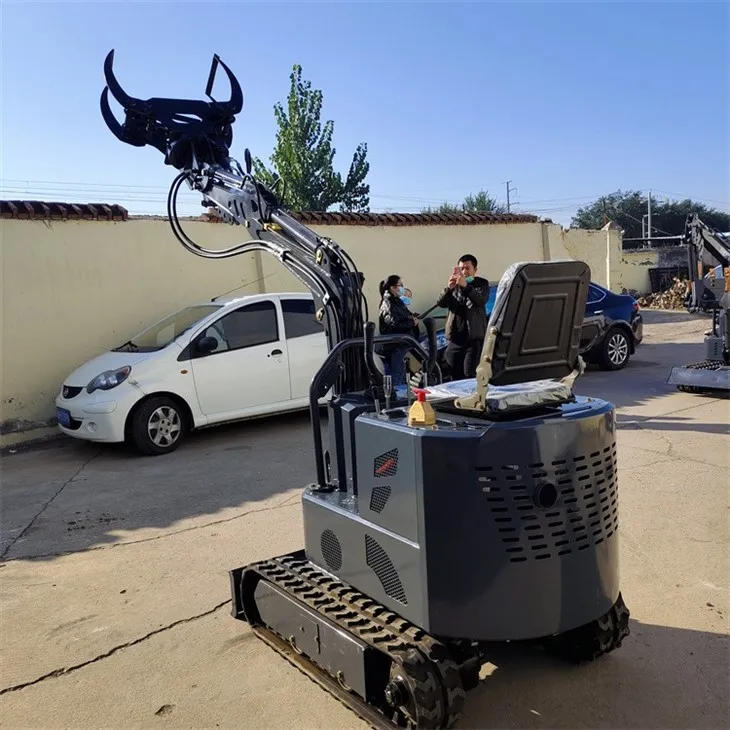

ME10 remote controlled construction excavator

Small remote control excavator, through remote control operation, can reduce the operator’s contact time with the environment, improve production efficiency. Avoid direct exposure of operators to dangerous environments to reduce the occurrence of safety accidents. Small remote control excavator can adapt to harsh working environment, such as mud, stone and other ground, with good stability performance.

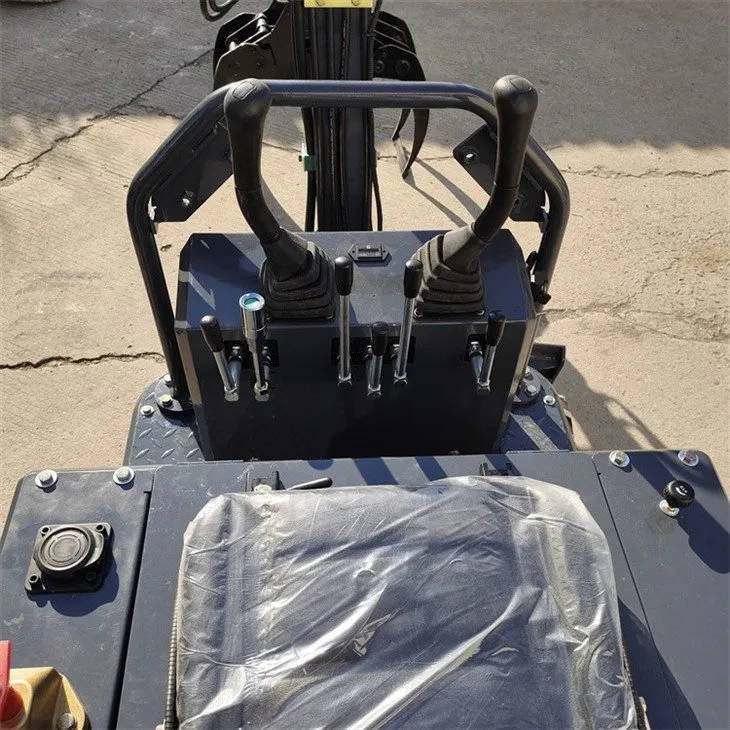

  • Industrial remote control system, high remote control accuracy, remote control distance 150-300 meters.
  • The double box design makes the dozer have higher structural strength and can withstand greater pressure and impact force, thus improving the durability and service life of the dozer.
  • However, rubber has high wear resistance, can withstand greater pressure and friction, and extend the service life of the track.
  • The body is formed in one piece, and the body is stronger and safer.
PROJECT UNIT ME10E
Machine weight kg 950
Bucket volume m³ 0.025
Engine model Battery LiFePO4/LiCoMnNiO2
BYD:Lithium battery+BMS 72v/ah 160/180/210
Working time h 7/8.5/10
PMSM motor 72v/Kw 4.5
Peak power Kw 9
Charging time h 4-8
Power consumption Kwh 1.2-1.5
Decibels within 1 meter Dba < 50
L*W*H mm 2590*1000*1450
Chassis width mm 1000/800-1000
Maximum digging radius mm 3100
Maximum digging height mm 2600
Maximum digging depth mm 1780
Walking speed km/h 3
Hydraulic flow L/mim 27
Swing speed 10″/360°
Climbing angle 45°

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
