As a supplier of 1.5 – ton mini excavators, I’m often asked about the hydraulic system of these compact yet powerful machines. In this blog, I’ll take you through the ins and outs of the hydraulic system in a 1.5 – ton mini excavator, explaining its components, functions, and advantages.

The Basics of a Hydraulic System in a 1.5 – ton Mini Excavator

The hydraulic system is the heart of a 1.5 – ton mini excavator. It is responsible for powering the various movements of the machine, including the boom, arm, bucket, and travel functions. At its core, a hydraulic system works on the principle of transmitting force through a liquid medium, usually hydraulic oil.

Key Components of the Hydraulic System

Hydraulic Pump

The hydraulic pump is the power source of the hydraulic system. In a 1.5 – ton mini excavator, a gear pump or a piston pump is commonly used. The pump draws hydraulic oil from the reservoir and pressurizes it. This pressurized oil is then sent through the hydraulic lines to the different actuators of the excavator. For example, a gear pump is simple in structure, reliable, and cost – effective, which is suitable for small – scale hydraulic systems like those in 1.5 – ton mini excavators.

Hydraulic Cylinders

Hydraulic cylinders are the actuators that convert the hydraulic energy into mechanical force. There are usually several cylinders in a 1.5 – ton mini excavator. The boom cylinder is used to raise and lower the boom, the arm cylinder controls the movement of the arm, and the bucket cylinder is responsible for the opening and closing of the bucket. These cylinders work in a coordinated manner to perform various digging and loading operations. Each cylinder consists of a cylinder barrel, a piston, a piston rod, and seals. When pressurized oil enters one side of the cylinder, it pushes the piston, causing the piston rod to extend or retract, thus moving the corresponding part of the excavator.

Control Valves

Control valves are used to regulate the flow, pressure, and direction of the hydraulic oil. They are like the traffic controllers of the hydraulic system. In a 1.5 – ton mini excavator, there are different types of control valves, such as directional control valves, pressure control valves, and flow control valves. Directional control valves determine which actuator (cylinder or motor) the hydraulic oil will flow to. Pressure control valves ensure that the pressure in the system does not exceed a safe level, protecting the components from damage. Flow control valves regulate the speed of the actuators by controlling the amount of oil flowing through them.

Hydraulic Reservoir

The hydraulic reservoir stores the hydraulic oil. It also provides a place for the oil to cool down and for the air and contaminants to separate from the oil. In a 1.5 – ton mini excavator, the reservoir is designed to be compact yet large enough to hold an adequate amount of oil for the proper functioning of the hydraulic system. It is usually equipped with a filter to remove any dirt or debris from the oil before it re – enters the system.

Hydraulic Lines

Hydraulic lines are the pipes or hoses that carry the hydraulic oil from one component to another. They need to be strong enough to withstand the high pressure of the hydraulic oil. In a 1.5 – ton mini excavator, steel pipes are often used for the main lines, while flexible hoses are used for the parts that require movement, such as the connection between the boom and the arm.

Functions of the Hydraulic System

Digging and Loading

The main function of the hydraulic system in a 1.5 – ton mini excavator is to enable efficient digging and loading operations. By controlling the movement of the boom, arm, and bucket through the hydraulic cylinders, the operator can dig into the ground, lift the soil or other materials, and load them onto trucks or into other containers. The precise control of the hydraulic system allows for accurate digging at different depths and angles.

Travel

The hydraulic system also powers the travel function of the 1.5 – ton mini excavator. Hydraulic motors are used to drive the tracks or wheels of the machine. The control valves regulate the flow of oil to the motors, allowing the operator to control the speed and direction of the excavator’s movement. Whether it’s moving forward, backward, or turning, the hydraulic system ensures smooth and reliable travel.

Advantages of the Hydraulic System in a 1.5 – ton Mini Excavator

High Power – to – Weight Ratio

One of the significant advantages of the hydraulic system in a 1.5 – ton mini excavator is its high power – to – weight ratio. Hydraulic systems can generate a large amount of force with relatively small components, which is crucial for a compact machine like a 1.5 – ton mini excavator. This allows the excavator to perform heavy – duty tasks despite its small size.

Precise Control

The hydraulic system provides precise control over the movements of the excavator. The operator can easily adjust the speed, force, and direction of the boom, arm, bucket, and travel functions. This precision is essential for tasks such as fine grading and delicate excavation work.

Reliability

Hydraulic components are generally very reliable. They are designed to withstand harsh working conditions, including high pressures, vibrations, and dirt. With proper maintenance, the hydraulic system in a 1.5 – ton mini excavator can have a long service life, reducing the downtime and maintenance costs for the users.

Our 1.5 – ton Mini Excavator Offerings

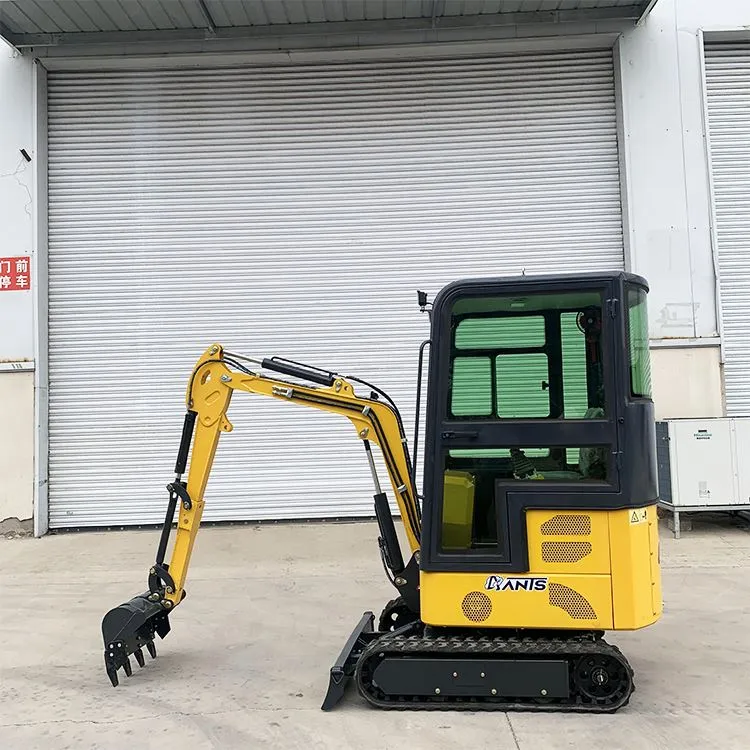

We offer a range of 1.5 – ton mini excavators with advanced hydraulic systems. Our 1.5 Ton Mini Excavator is designed to meet the diverse needs of different customers. For those who are environmentally conscious, we have the Lithium Battery Excavator 1.5 Ton, which combines the efficiency of a hydraulic system with the clean energy of lithium batteries. And our Crawler Electric Excavator offers excellent traction and stability, powered by a reliable hydraulic system.

Conclusion

The hydraulic system is an essential part of a 1.5 – ton mini excavator. Its components work together seamlessly to provide power, control, and reliability for the machine’s various functions. Whether you are in the construction, landscaping, or agricultural industry, a 1.5 – ton mini excavator with a well – designed hydraulic system can be a valuable asset. If you are interested in our 1.5 – ton mini excavators or have any questions about the hydraulic system, please feel free to contact us for procurement discussions. We are committed to providing you with high – quality products and excellent service.
