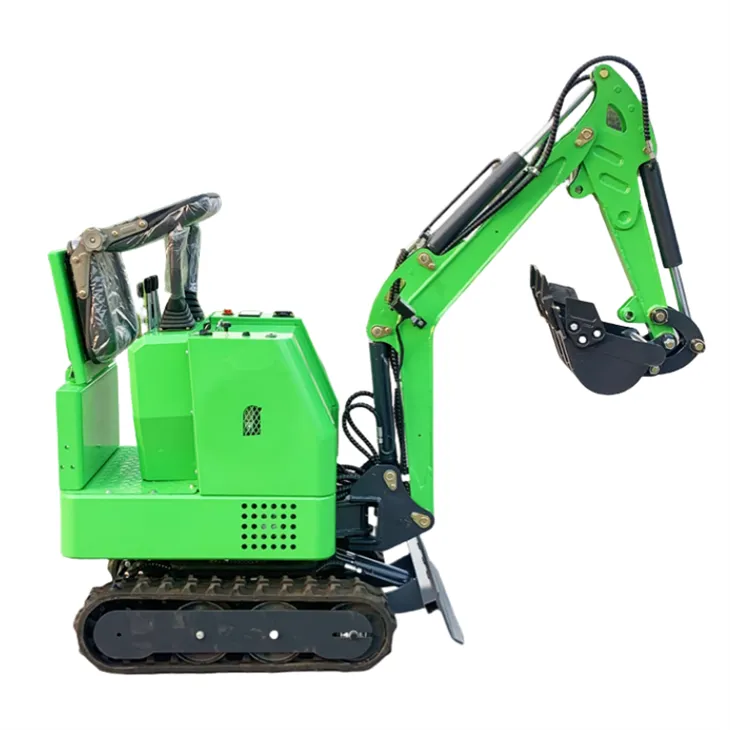

Compact ME05 Mini Digger
Perfect for urban renovation and interior projects, it offers powerful performance in a compact size.
Compact ME05 Mini Digger
Products Description
Key Features & Functions:
Foldable Seat – Easy to fold for transport or storage, saving space without compromising comfort.
Swing Boom – Flexible side swing boom allows precise digging along walls, corners, and narrow spaces.
Dual-Direction Fast Charging – Charge in both directions for convenience and reduced downtime.
Advantages:
Efficiency – Quick charging and flexible operation mean more work done in less time
Cost-Effective – Delivers professional results with lower investment and operating costs.
Portable & Practical – Easy to transport with trucks or trailers, suitable for contractors and private users alike.
Products Parameter
product parameters
| Product Name |
ME05E |
LWH | 1600*660*1350mm |
| Operating Weight | 680kg | Chassis width | 660mm |
| Bucket volume | 0.025m³ | Max. digging radius | 2980mm |
| Engine model | 7 | Max. digging height | 2630mm |
| BYD:Lithium battery+BMS | 148 72v/ah | Max. digging depth | 1190mm |
| Working time | 2-8h | Walking speed | 2.2km/h |
| PMSM motor | 3.5 72v/Kw | Hydraulic flow | 20L/mim |
| Peak power | 7Kw | Swing speed | 12″ /360° |
| Charging time | 2 - 8h | Climbing angle | 30° |
| Power consumption | 1.2 - 1.4Kwh | ||
| Decibels within 1 meter | < 50Dba |
Products details
The upper part of the excavator (cab, working device, etc.) can flexibly rotate relative to the lower part (chassis), achieving 360° rotation, completing excavation, loading and unloading operations in different positions.
slewing bearings
Achieve 360° rotation
Hydraulic oil radiator
Helps reduce the temperature of hydraulic oil in hydraulic systems
Electric motor
Convert electrical energy into mechanical energy
Temperature controller
Keep the hydraulic oil temperature within the set range
Application Scenario
FAQ
Q: What is a mini excavator?
A:A mini excavator, also known as a compact excavator or mini digger, is a small, versatile piece of construction equipment used for tasks such as digging trenches, excavating foundations, grading surfaces, and landscaping.
Q: What are the typical size and weight of mini excavators?
A: Mini excavators will generally weigh somewhere between 1 to 8 tons (2,000 – 16,000 lbs) and have a width of approximately 3.5 to 6 feet, depending on the model. Their small size makes them highly maneuverable in tight spaces.
Q: What are the main components of a mini excavator?
A: A mini excavator typically consists of a house (the central body), an undercarriage with tracks, a hydraulic boom, stick, and attachments such as a bucket or auger.
Q: What are the advantages of using a mini excavator over bigger excavators?
A: Mini excavators are more compact, maneuverable, and quieter than larger excavators, making them ideal for construction work in tight or urban spaces, residential areas, or places with noise restrictions. They also consume less fuel, are easier to transport, and cause minimal ground damage.
Q: What are the types of mini excavators available?
A: There are several types of mini excavators available on the market, including standard tail swing, zero tail swing, and compact excavators.
