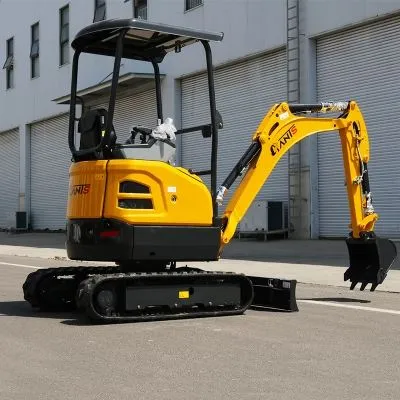

2 Ton Electric Excavator
It uses an electric drive system with low noise, no exhaust emissions, flexible operation and low maintenance costs.
2 ton electric excavator
The electric mini excavator is a kind of excavator driven by electricity, which has more advantages than the traditional oil excavator.
First of all, electric mini excavators use batteries as energy sources, which have higher energy density and lower maintenance costs than traditional fuel engines. At the same time, because there is no noise and exhaust emissions of fuel engines, electric small excavators have less impact on the environment.
Secondly, the operation of electric small excavators is more flexible. Due to the characteristics of the electric drive, the electric mini excavator can be operated without relying on the traditional fuel engine and can be charged in a short time, making it more suitable for operation in small Spaces and indoors.
In addition, electric mini excavators are also more energy efficient. The energy utilization rate of the traditional fuel engine is relatively low, and the battery of the electric mini excavator can efficiently convert electrical energy into mechanical energy, thereby improving the energy utilization efficiency.


|
PROJECT |
UNIT |
ME20E |
|
Machine weight |
kg |
1980 |
|
Bucket volume |
m³ |
0.06 |
|
Engine model |
Battery |
LiFePO4/LiCoMnNiO2 |
|
BYD:Lithium battery+BMS |
72v/ah |
300/450 |
|
Working time |
h |
4/6 |
|
PMSM motor |
72v/Kw |
7.5 |
|
Peak power |
Kw |
15 |
|
Charging time |
h |
4-8 |
|
Power consumption |
Kwh |
5.2-5.7 |
|
Decibels within 1 meter |
Dba |
< 50 |
|
L*W*H |
mm |
3575*990/1330*1650 |
|
Chassis width |
mm |
1350/990-1300 |
|
Maximum digging radius |
mm |
4120 |
|
Maximum digging height |
mm |
3500 |
|
Maximum digging depth |
mm |
2300 |
|
Walking speed |
km/h |
2. 2/3 |
|
Swing speed |
10"/360° |
|
|
Pump type |
Variable volume pump |
|
|
Max. discharge flow |
L/mim |
54 |
|
Swing motor type |
Eaton SW2.5K |
|
|
Grade ability |
58° |
|
|
Hydraulic system |
Load sensitive |
Product details








Appearance design: adopts tailless design, the tail does not expand the main machine, reducing the risk of collision during operation.
Power system: adopts permanent magnet synchronous motor, energy saving, and provides strong power.Equipped with high-performance lithium-ion battery pack, long endurance, support fast charging, saving a lot of time.
Optional accessories: a variety of working devices: breaker, wood grabber, etc., to meet different operation needs.
