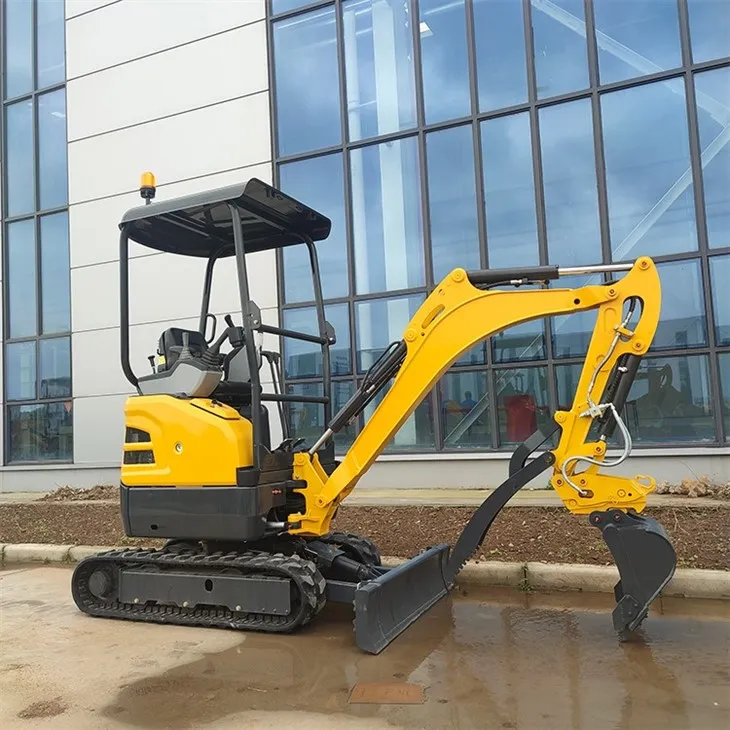

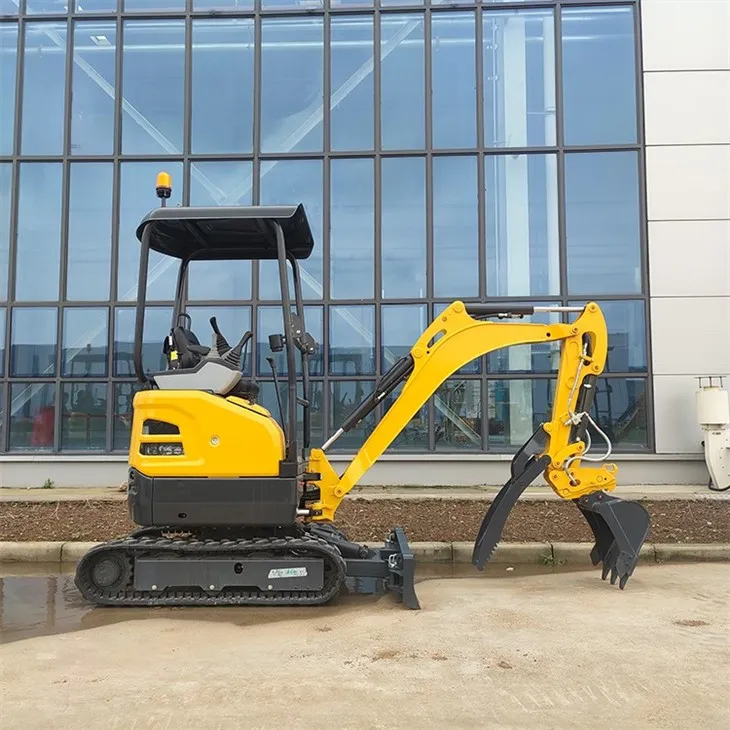

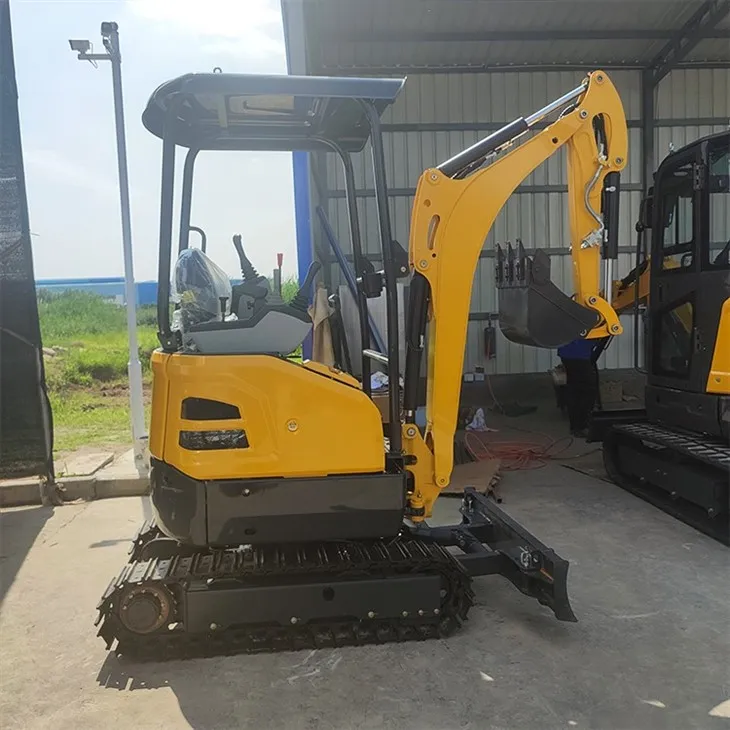

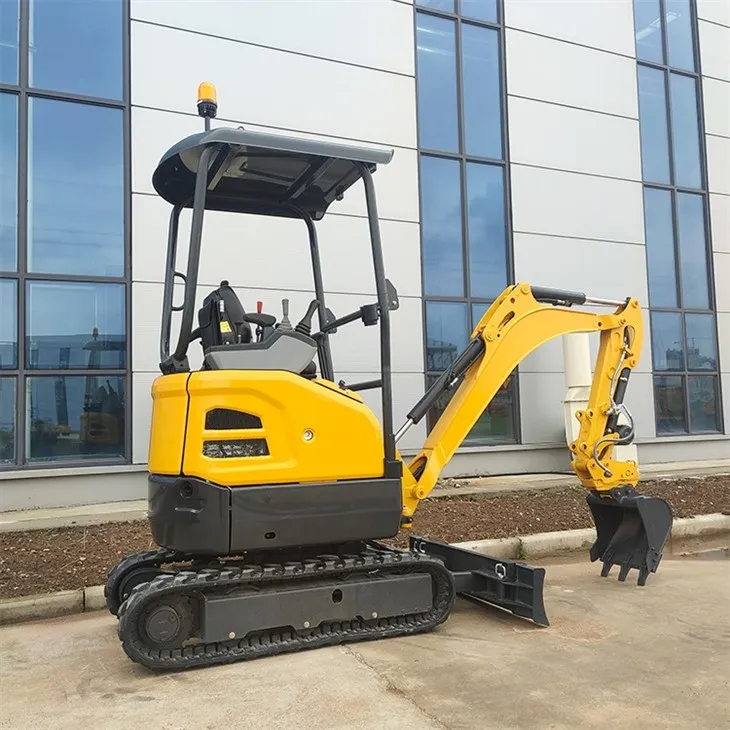

Battery Mini Excavator

Electric small excavators have many advantages compared with traditional oil excavators, electric small excavators use electricity as a power source, does not produce exhaust gas and noise, and has less impact on the environment. Electric mini excavators are more energy efficient and can save energy costs. Electric mini excavator is simple to operate, easy to control, suitable for various engineering environments.

Share This Product, Choose Your Platform!

Product Details

Electric small excavators have many advantages compared with traditional oil excavators, electric small excavators use electricity as a power source, does not produce exhaust gas and noise, and has less impact on the environment. Electric mini excavators are more energy efficient and can save energy costs. Electric mini excavator is simple to operate, easy to control, suitable for various engineering environments. The electric mini excavator has the advantages of simple structure, low maintenance cost and longer service life. Although the purchase cost of electric mini excavators is relatively high, in the long-term use process, its operating cost is lower because of the lower cost of electricity use.

The electric mini excavator starts relatively quickly, and the noise is low during operation, which is more friendly to the construction personnel and the surrounding environment. Through different working devices, electric small excavators can achieve a variety of functions, such as loading, handling, digging, drilling and so on. Electric mini excavators are suitable for various engineering fields, such as buildings, roads, gardens and so on.

ENGINE
Model KUBOTA D902
Type Vertical, water cool, 4-cycle
No. of cylinder 3
Emission EPA Tier 4 Final / Europe Stage V
Displacement 0.898L
Power output 11.8kW / 2300rpm
HYDRAULIC SYSTEM
Type Axial piston-variable displacement
Max. hydraulic flow 28L/min
DIGGING FORCE (ISO6015)
Bucket digging force 16kN
Arm digging force 9.5kN
DRIVE SYSTEM
Type Axial piston motor
Track roller 2 × 3
Travel speed 2.2 / 4.3 km/h
Max. Drawbar pull 18kN
Grade ability 58%
SWING SYSTEM
Swing motor type Cycloidal motor
Swing speed 0–9.5r/min
Brake type Pressure release mechanical braking
REFILLING CAPACITIES & LUBRICATIONS
Fuel tank 19L
Cooling system 5L
Engine oil 3.7L
Hydraulic oil tank 20L
OPERATING WEIGHT AND GROUND PRESSURE
Shoe width 230mm
Ground pressure 29kPa
Operating weight 1800kg
DIMENSIONS / mm (Transport & Undercarriage)
A — Transport length (arm lowered) 3570
B — Overall height (top of canopy) 2400
C — Undercarriage width (Retracted) 990
D — Undercarriage width (Extended) 1300
E — Undercarriage length 1587
F — Upperbody width (zero tail) 990
DIMENSIONS / mm (Working Range)
A — Max. digging height 3535
B — Max. dumping height 2445
C — Max. digging depth 2270
D — Max. vertical digging depth 1910
E — Max. digging radius 3910
F — Max. digging radius, at ground level 3845
G — Min. swing radius of work equipment 1495
H — Min. tail swing radius 650
I — Ground clearance of counterweight 450
J — Maximum Dozer Lift Height 280
K — Maximum Dozer Dig Depth 190
L — Maximum Boom Offset (LH) 385
M — Maximum Boom Offset (RH) 510
N — Boom Swing Angle (LH & RH) 57° / 61°

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
