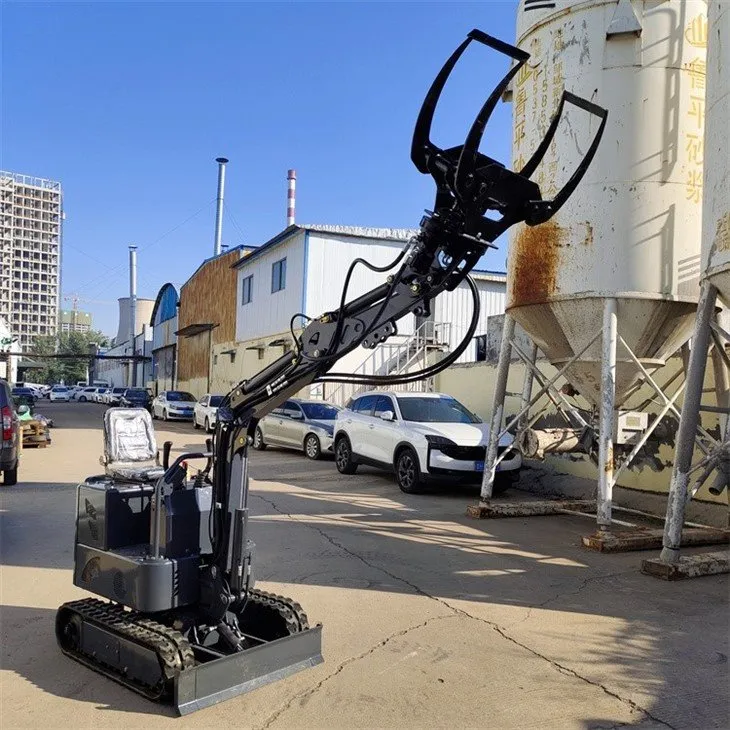

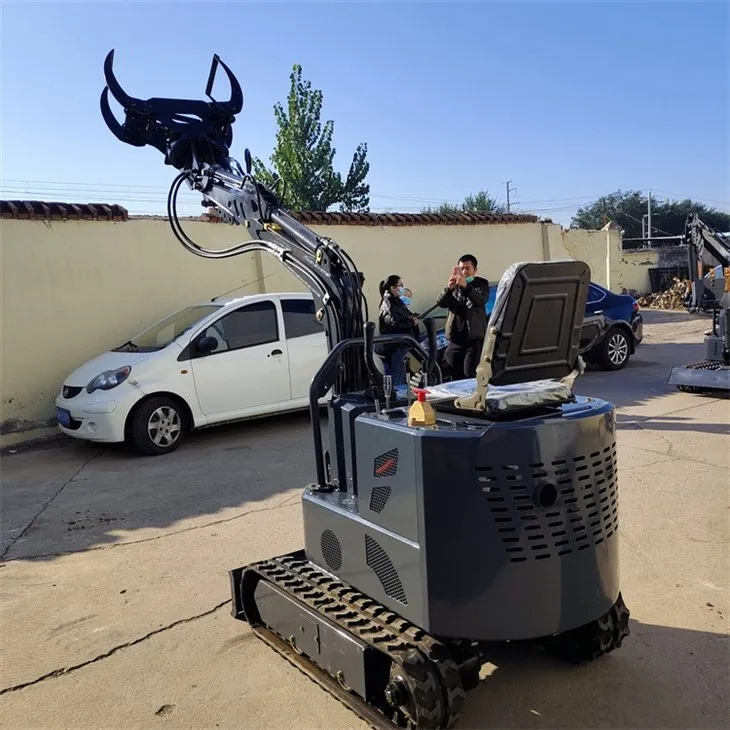

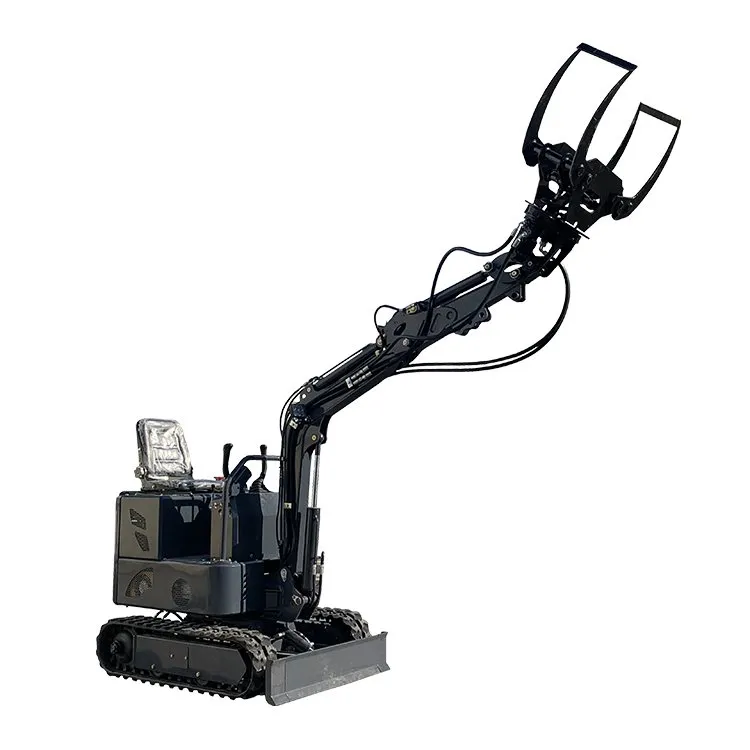

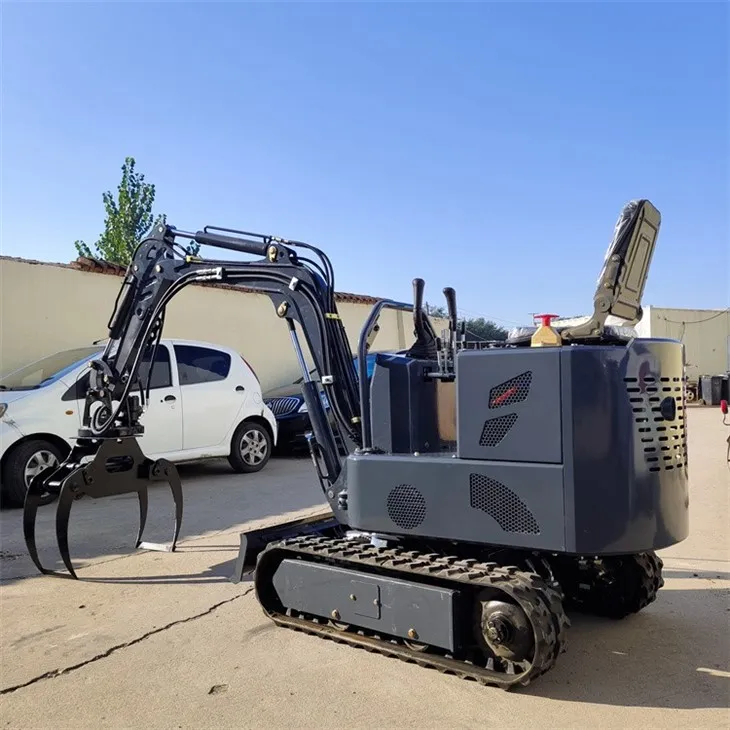

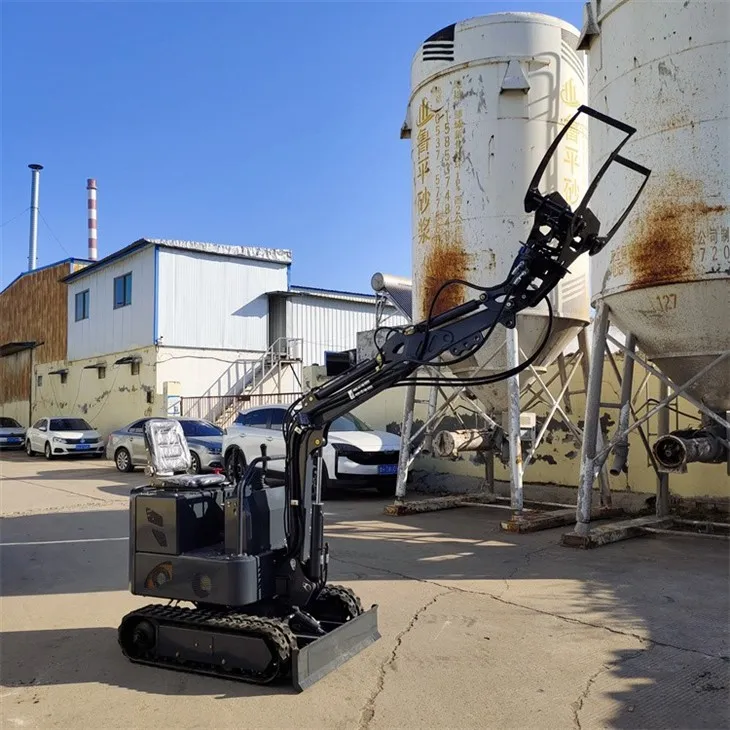

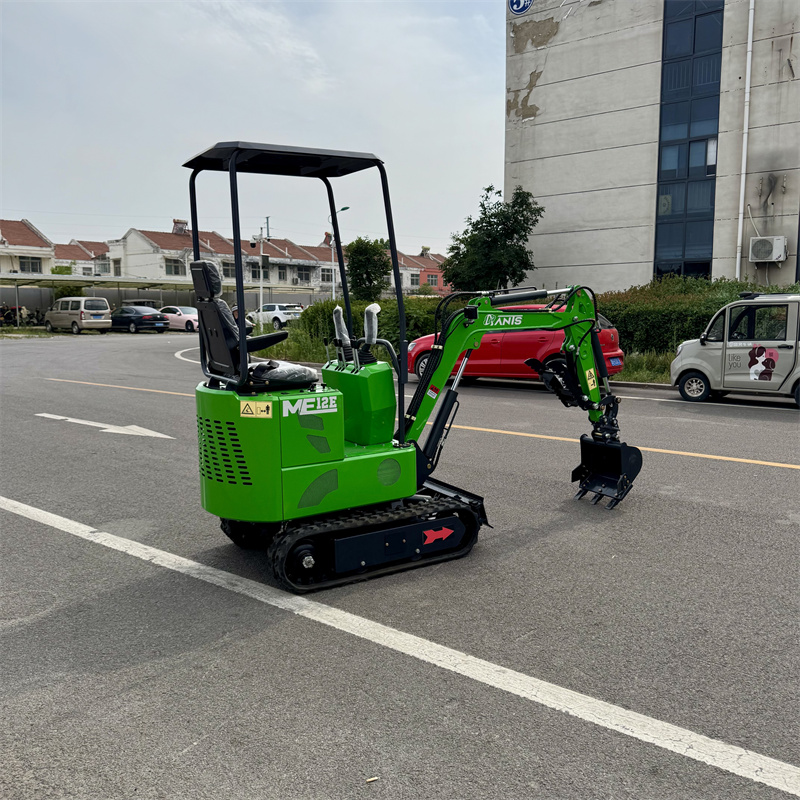

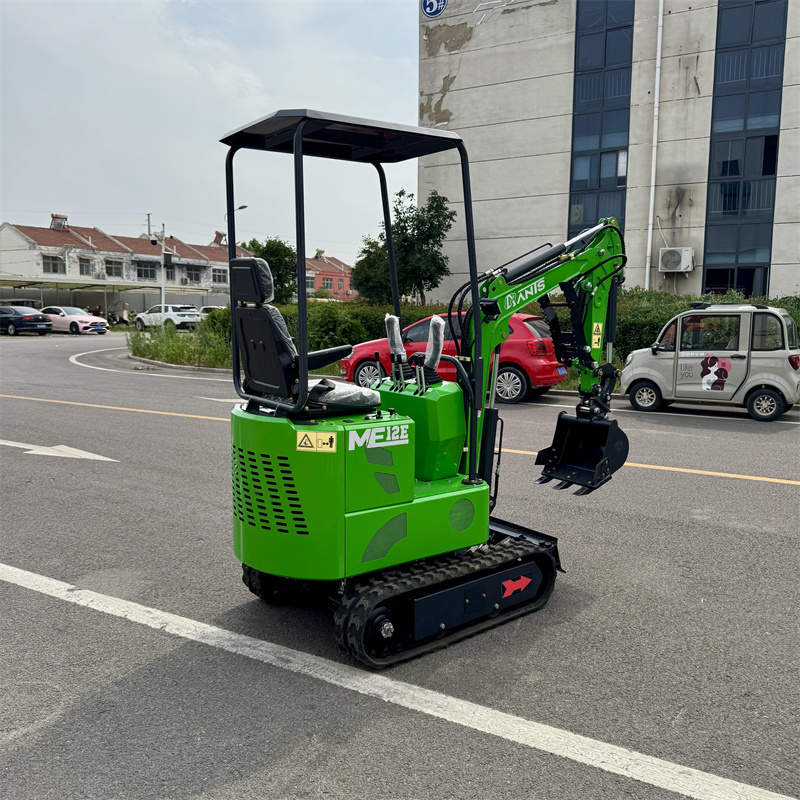

1 ton Electric Mini Excavator

1. It can be operated in some special working places, such as tunnels, places with flammable and explosive gases, and food-grade workplaces. 2. No emissions, no noise in indoor operation. 3. With world standard safety performance.

Share This Product, Choose Your Platform!

Product Details

Electric excavator product advantages:

1. It can be operated in some special working places, such as tunnels, places with flammable and explosive gases, and food-grade workplaces
2. No emissions, no noise in indoor operation.
3. With world standard safety performance.
4. Lithium battery electric drive, low cost.
5. Assembly of hydraulic oil air cooled radiator, can meet the needs of continuous work.
6. The maximum working time is about 10 hours, to meet the needs of a day’s work.
7.Large capacity lithium iron phosphate battery, optional battery capacity.

PROJECT UNIT ME10E ME08E MEO5E
Machine weight kg 950 800 620
Bucket volume m³ 0.025 0.025 0.02
Engine model Battery LiFePO4/LiCoMnNiO2 LiFePO4/LiCoMnNio2 LiFePO4/LiCoMnNio2
BYD:Lithium battery+BMS 72v/ah 160/180/210 130/180/210 148
Working time h 7/8.5/10 6/9/10.5 8
PMSM motor 72v/Kw 4.5 4 3.5
Peak power Kw 9 8 7
Charging time h 4-8 4-8 4-8
Power consumption Kwh 1.2-1.5 1.2-1.4 1.2-1.4
Decibels within 1 meter Dba < 50 < 50 < 50
L*W*H mm 2590*1000*1450 2480*720*1250 1600*640*1350
Chassis width mm 1000/800-1000 720/700-900 600
Maximum digging radius mm 3100 2400 2760
Maximum digging height mm 2600 2200 2400
Maximum digging depth mm 1780 1220 1200
Walking speed km/h 3 2.2 2.2
Hydraulic flow L/mim 27 23 20
Swing speed   10″/360° 10″/360° 10″/360°
Climbing angle   45° 40° 30°

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
