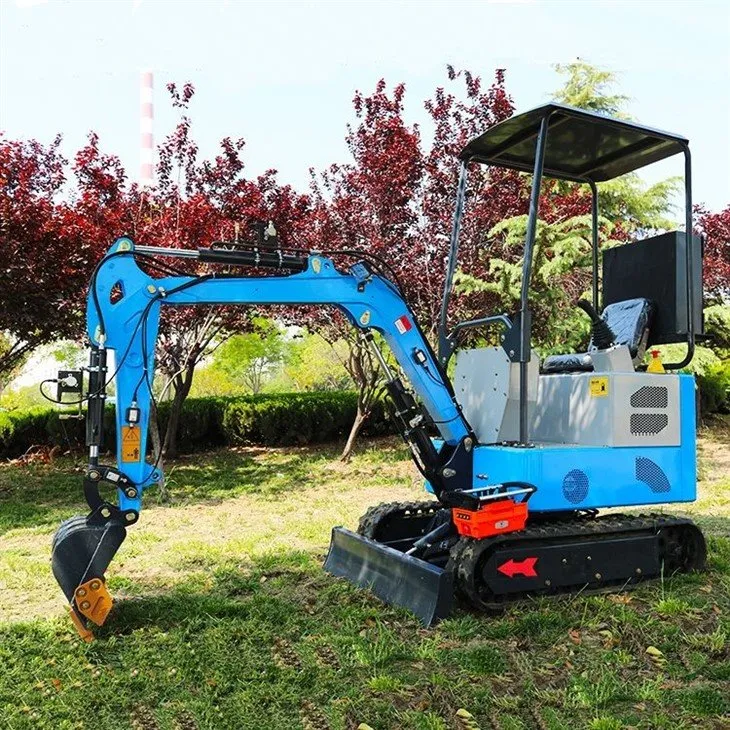

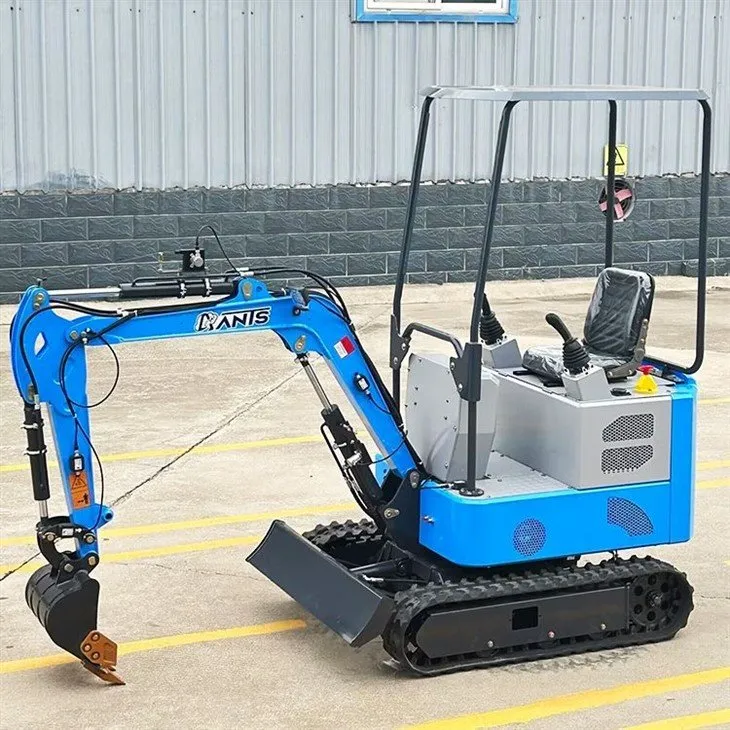

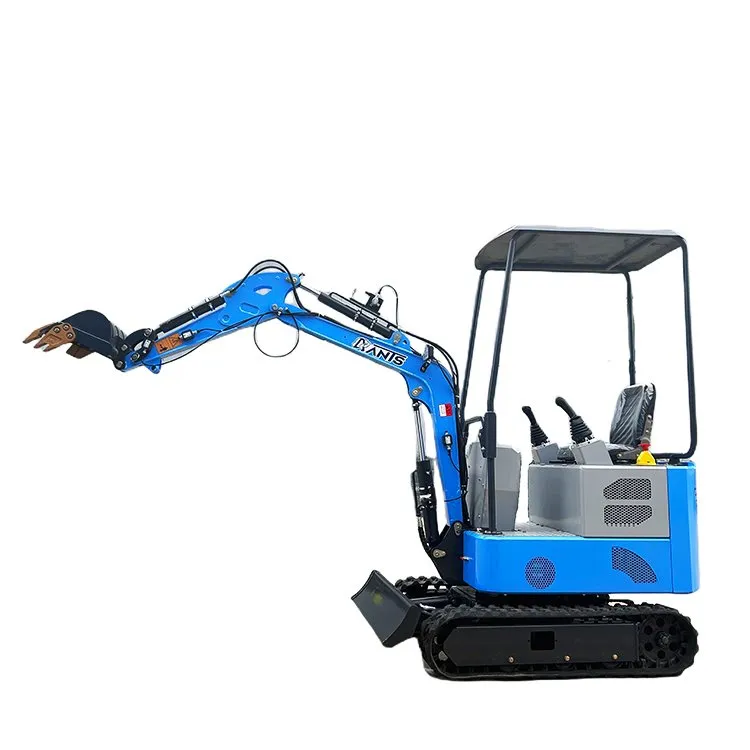

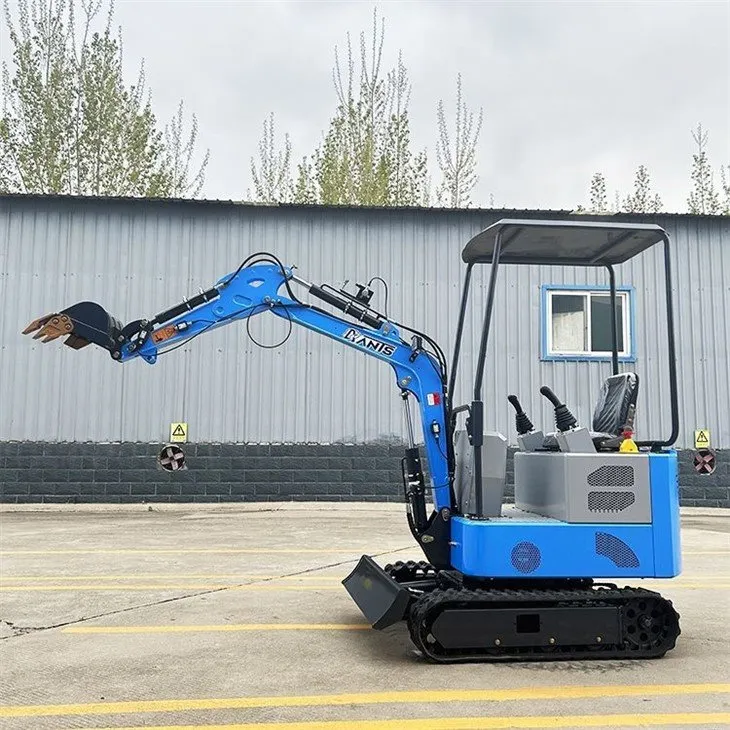

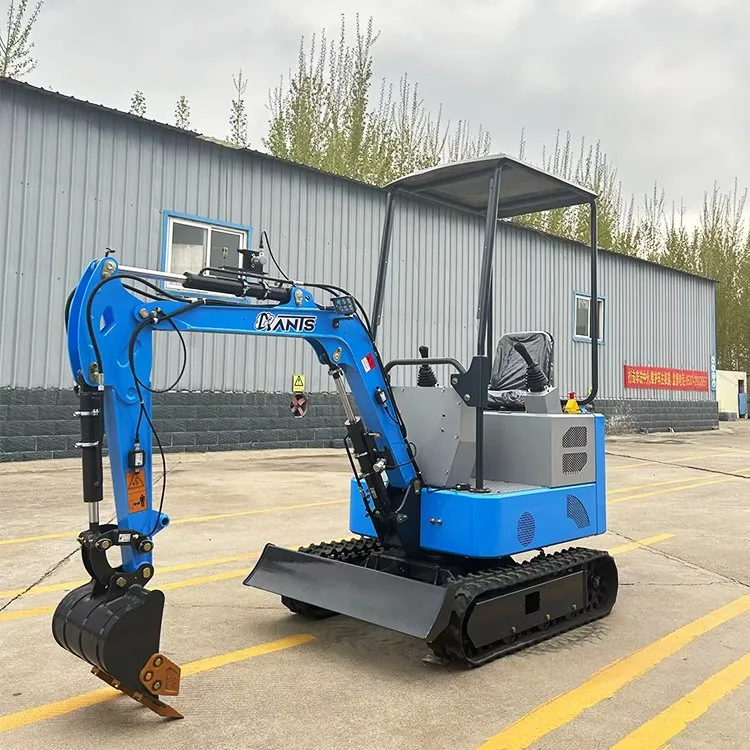

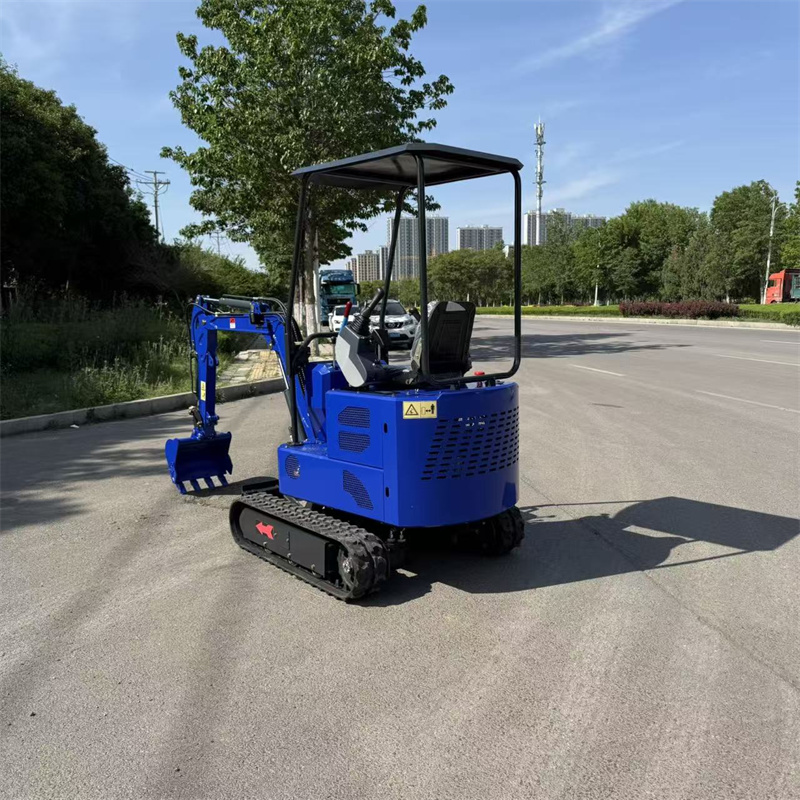

1.5 Ton Mini Excavator

1. Optional diesel/gasoline/electric power to meet your needs. 2. Pilot control/mechanical control is available for you to choose, and remote control system can be added. 3. 1 tons, 1.5 tons, 1.8 tons, 2.0 tons, 2.5 tons, can be equipped with high-precision hydraulic pilot control system.

Share This Product, Choose Your Platform!

Product Details

1. Optional diesel/gasoline/electric power to meet your needs.

2. Pilot control/mechanical control is available for you to choose, and remote control system can be added.

3. 1 tons, 1.5 tons, 1.8 tons, 2.0 tons, 2.5 tons, can be equipped with high-precision hydraulic pilot control system.

4. The body can be rotated 360 degrees, high flexibility, to meet the needs of small space operations.

5. Accessories can be replaced to meet the construction needs of different working conditions.

6. Natural rubber track, wear and durable.

7. Use dense steel wire inside the pipe to increase the service life.

PROJECT UNIT ME15E
Machine weight kg 1400
Bucket volume m³ 0.035
Engine model Battery LiFePO4/LiCoMnNiO2
BYD:Lithium battery+BMS 72v/ah 210/300/400
Working time h 7/9/12
PMSM motor 72v/Kw 5.5
Peak power Kw 10
Charging time h 4-8
Power consumption Kwh 1.5-2.5
Decibels within 1 meter Dba < 50
L*W*H mm 3050*1100*1500
Chassis width mm 1100/990-1300
Maximum digging radius mm 3150
Maximum digging height mm 2700
Maximum digging depth mm 1880
Walking speed km/h 2.2
Swing speed   10″/360°
Pump type   Gear pump
Max. discharge flow L/mim 33
Swing motor type
Grade ability   45°
Hydraulic system

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
