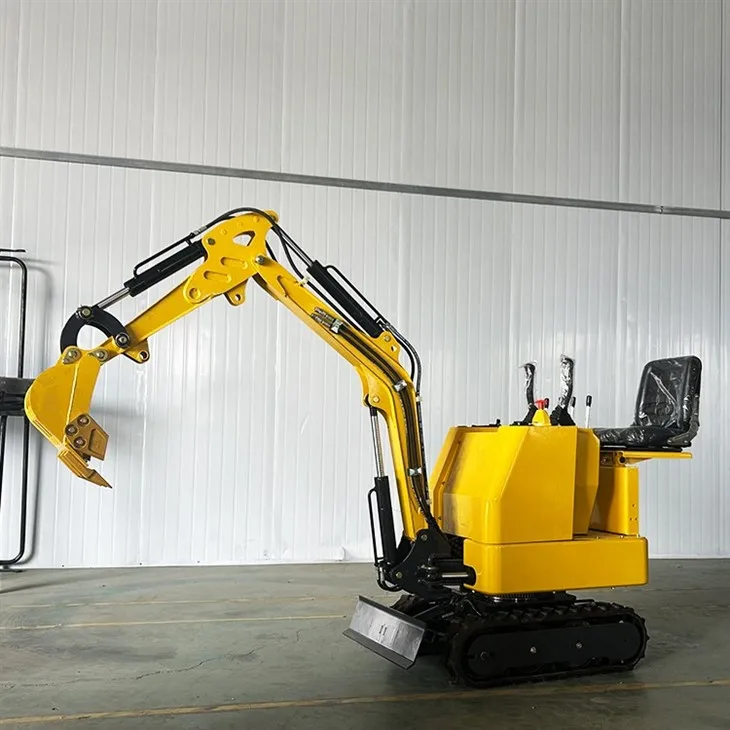

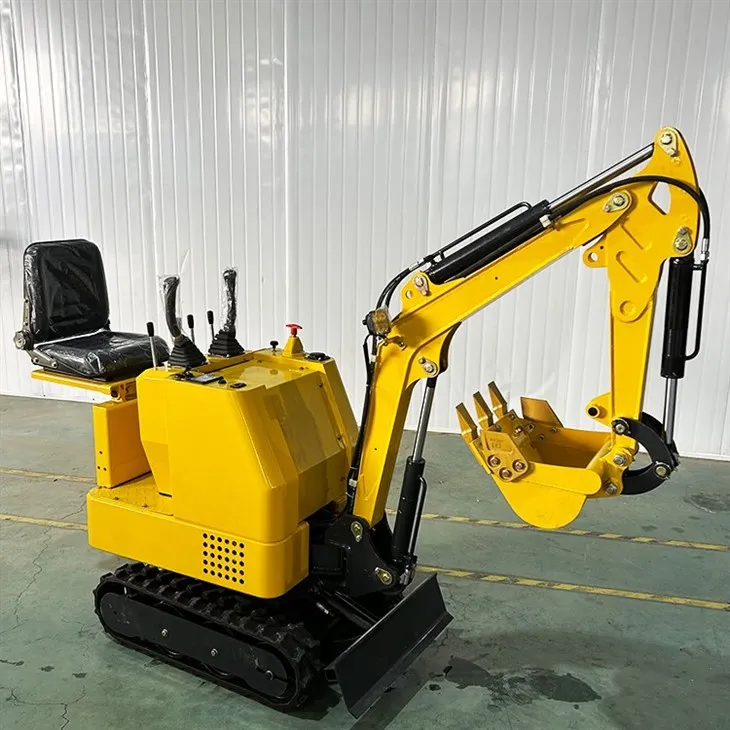

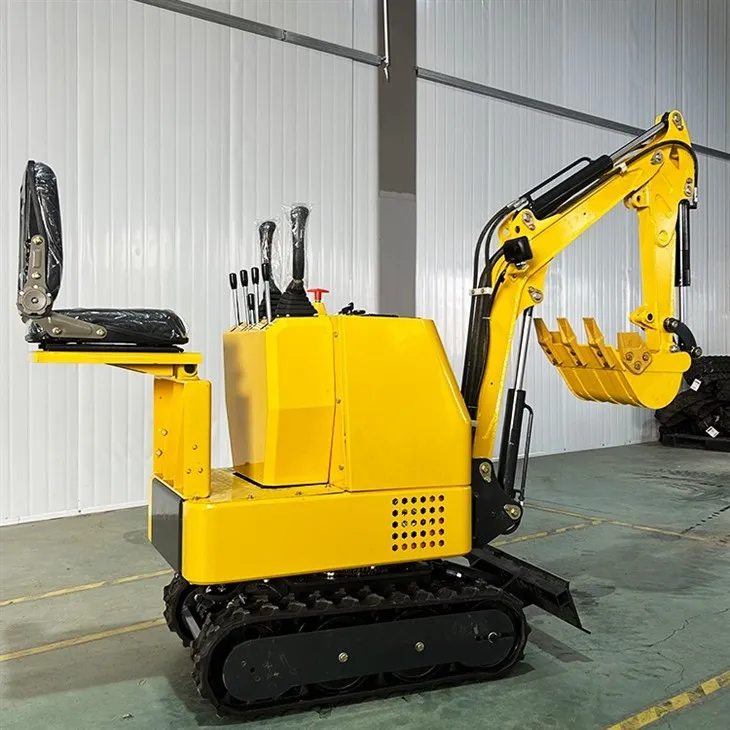

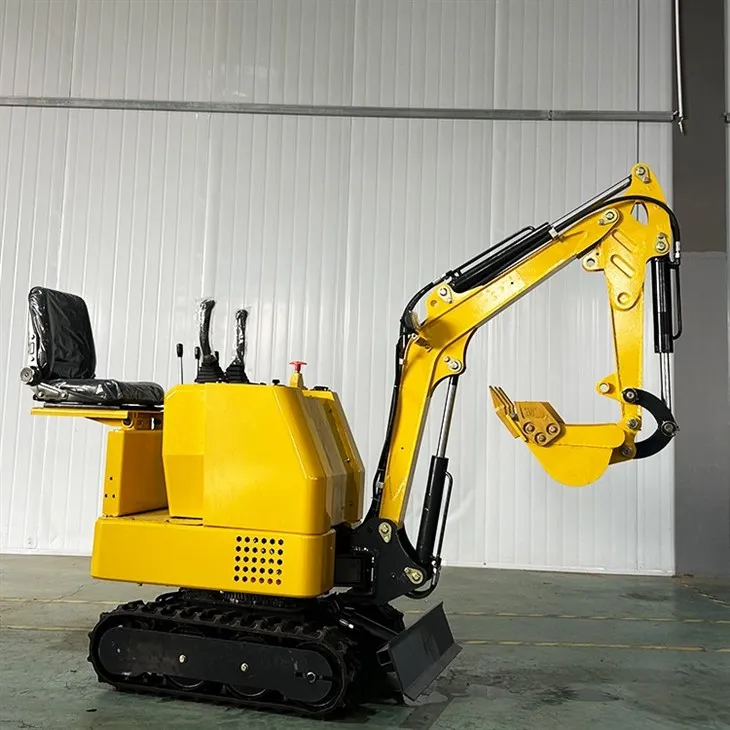

Mini Excavator 500kg

ME05 battery-powered, and has the characteristics of low noise,zero emissions and no pollution,and is more friendly to the environment.Compact size,suitable for use in small Spaces such as indoor.

Share This Product, Choose Your Platform!

Product Details

ME05 battery-powered, and has the characteristics of low noise,zero emissions and no pollution,and is more friendly to the environment.Compact size,suitable for use in small Spaces such as indoor.

1. The adjustable arm seat can be folded, and can be used to work upstairs in the elevator

2. The product has the advantages of strong power and high durability.

3. Indoor operation no emissions, low noise.

4. Standard crushing pipe, crushing hammer can be installed.

Product Parameter:
PROJECT UNIT MEO5E
Machine weight kg 620
Bucket volume m³ 0.02
Engine model Battery LiFePO4/LiCoMnNio2
BYD:Lithium battery+BMS 72v/ah 148
Working time h 8
PMSM motor 72v/Kw 3.5
Peak power Kw 7
Charging time h 4-8
Power consumption Kwh 1.2-1.4
Decibels within 1 meter Dba < 50
L*W*H mm 1600*640*1350
Chassis width mm 600
Maximum digging radius mm 2760
Maximum digging height mm 2400
Maximum digging depth mm 1200
Walking speed km/h 2.2
Hydraulic flow L/mim 20
Swing speed   10″/360°
Climbing angle   30°

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
