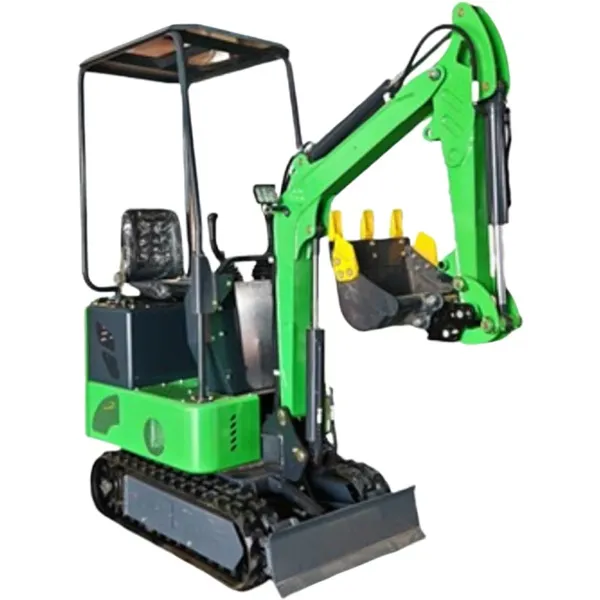

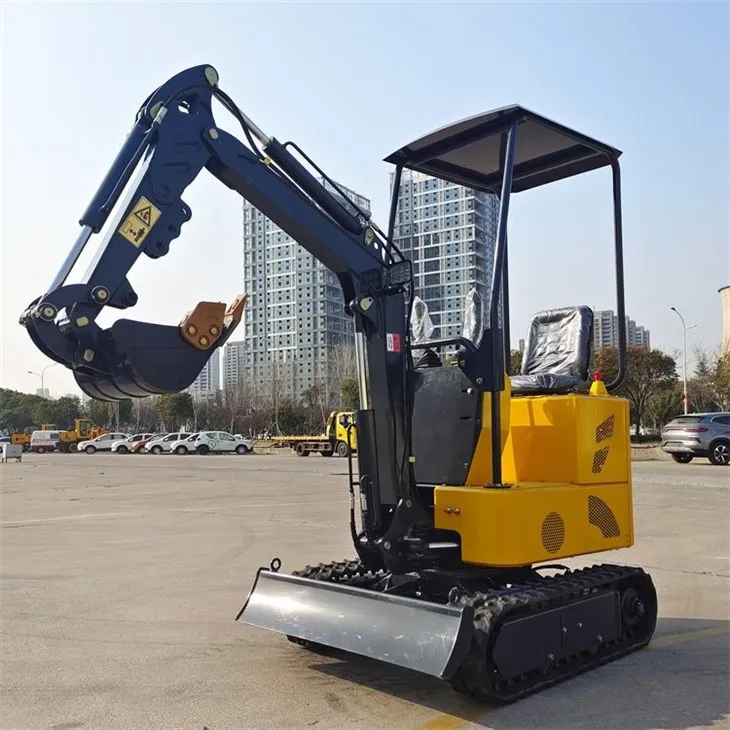

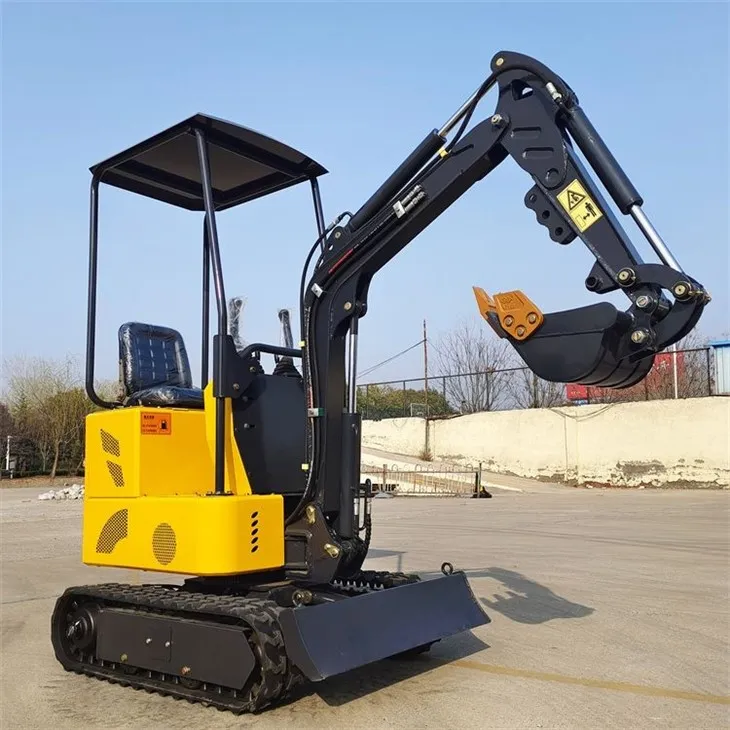

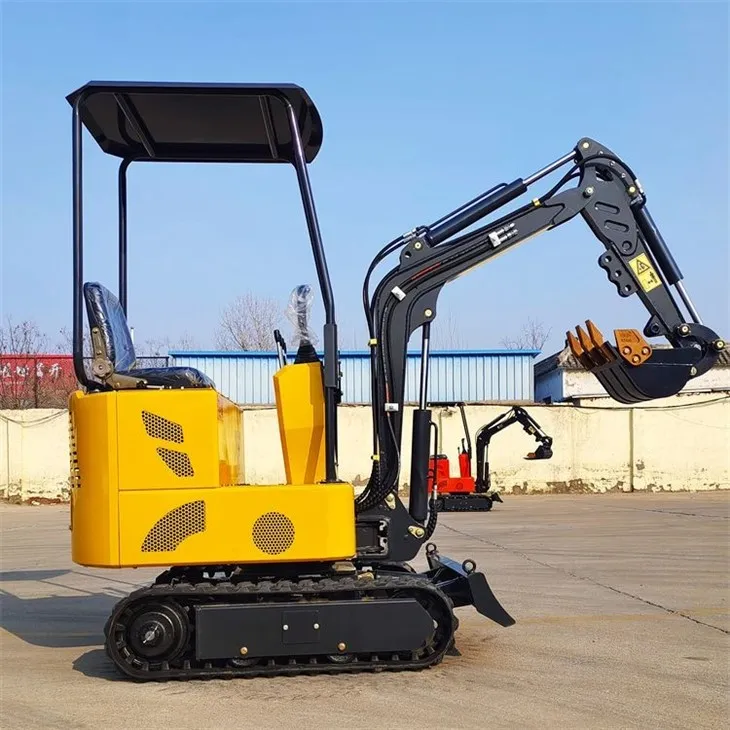

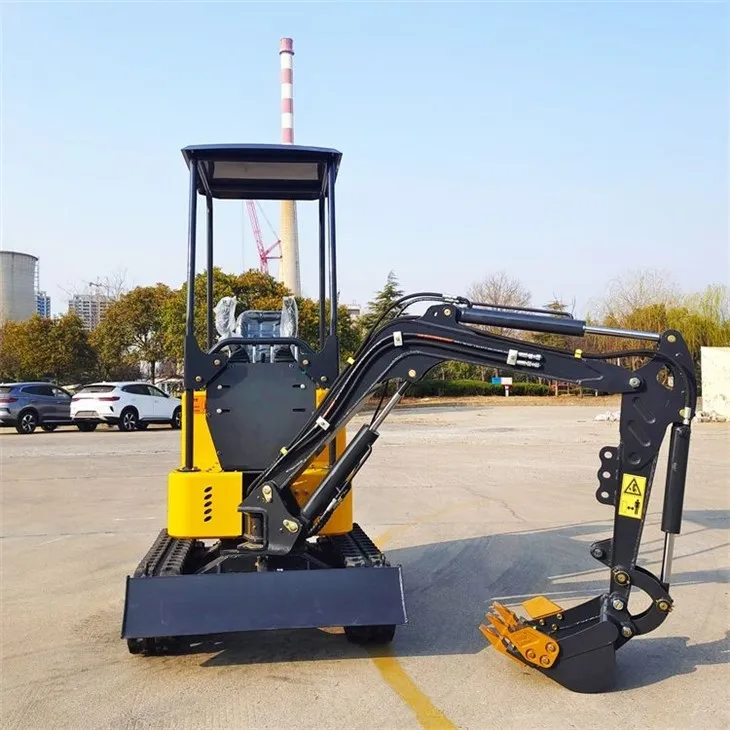

1.2 Ton Excavator Mini Digger

Small size, easy operation, can work in the environment where large excavators can not be constructed, strong versatility, high efficiency, has a wide range of applicability. Very suitable for all kinds of pipeline trenching, foundation construction, greening and house maintenance operations.

Share This Product, Choose Your Platform!

Product Details

1. Because the volume of 1 ton small excavator is reduced compared with the traditional excavator, the fuel consumption is also reduced.

2. High usage rate, wide range of use environment.

3. Small excavators have low noise, which is conducive to workers’ safety and work efficiency.

We also have 0.5 tons, 0.8 tons, 1 ton, 1.5 tons, 1.8 tons, 2.0 tons, 2.5 tons of small excavators for you to choose!

Slewing bearing
The upper part of the excavator (cab, working device, etc.) can flexibly rotate relative to the lower part (chassis), achieving 360° rotation, completing excavation, loading and unloading operations in different positions.
Hydraulic oil radiator
It can reduce the temperature of hydraulic oil in the hydraulic system, avoid excessive oil temperature affecting the performance and stability of the hydraulic system, and protect hydraulic components.
Temperature controller
Set the temperature limit and output the control signal when the temperature reaches the preset value. Maintain the temperature in the appropriate range

Products Parameter:

Product Name

ME10E

 LWH 2750*800*1400mm
Machine weight 930kg Chassis width 1000mm
Bucket volume 0.025m³ Max. digging radius 3020mm
Engine model LiFePO4/LiCoMnNiO2 Max. digging height 2600mm
BYD:Lithium battery+BMS 180/210 72v/ah Max. digging depth 1780mm
Working time 6 – 8h Walking speed 2.2km/h
PMSM motor 4.5 72v/Kw Hydraulic flow 25 – 28L/mim
Peak power 9Kw Swing speed 10″/360°
Charging time 2 – 8h Climbing angle 30°
Power consumption 1.2 – 1.55Kwh
Decibels within 1 meter < 50Dba

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
