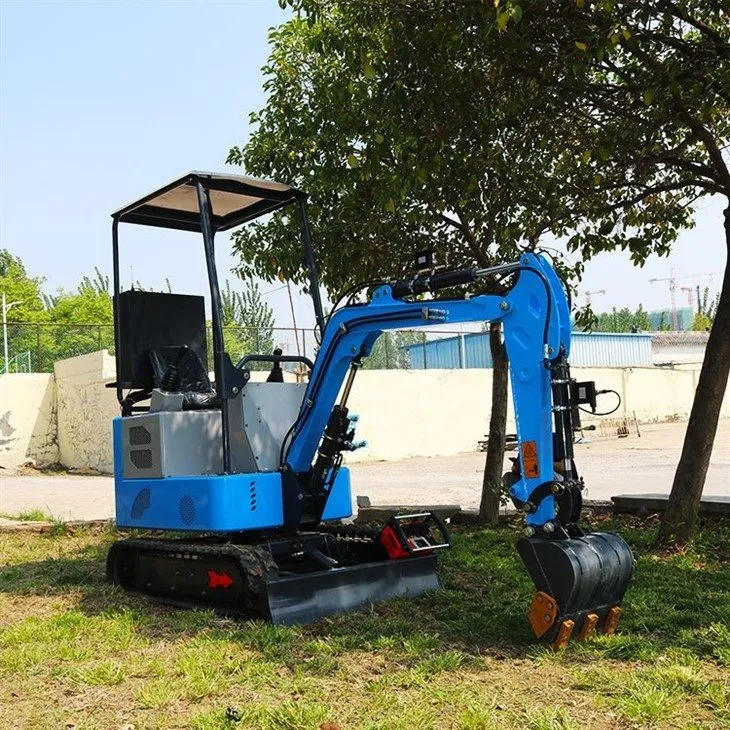

1.5 ton Mini Crawler Excavator

The machine is small and flexible, easy to transport and easy to operate. It can work in small places, especially suitable for orchard planting, digging trenches, fertilizing, weeding, etc.

Share This Product, Choose Your Platform!

Product Details

1. Excellent work efficiency and cost performance;
2. The standard dozer shovel can level the site, backfill the earth, and improve the stability of the whole machine;
3. The machine is small and flexible, easy to transport and easy to operate. It can work in small places, especially suitable for orchard planting, digging trenches, fertilizing, weeding, etc.

4. It has the functions of digging, crushing, ditching, drilling, leveling, etc., and can quickly replace parts, which greatly improves the working efficiency of the machine;
5. Side swing device: the front part of the main body is equipped with a boom side shift device, which can swing 85 degrees to the left and 45 degrees to the right, truly realizing the direct excavation work similar to the root of the wall, without frequent movement of the machine, more convenient, suitable for working in narrow places.

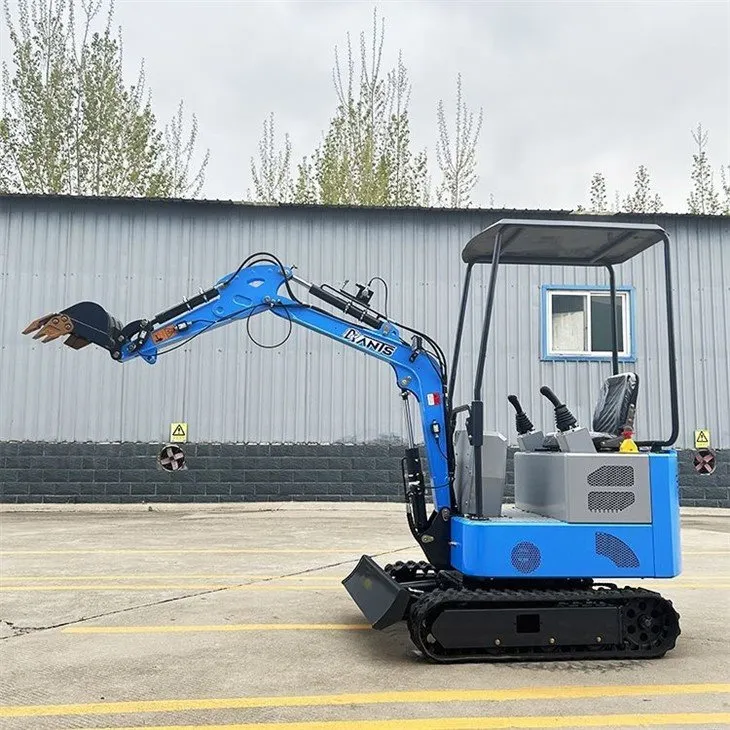

ME15 small electric excavator

1. The product has the advantages of strong power and high durability.

2. Assemble broken spare pipeline, can install hydraulic accessories.

3. No emissions, low noise, green environmental protection.

4. Optional large arm side swing chassis telescopic energy, suitable for a smaller range of operations.

5. Assembly of hydraulic oil air cooled radiator, can meet the needs of continuous work.

6. The maximum working time is about 12 hours to meet the needs of one day’s work.

7. Large capacity lithium battery, optional battery capacity.

8. The product is suitable for distillery/food factory/pharmaceutical factory/indoor environment operation

9. Pilot control/mechanical control for your choice.

PROJECT UNIT ME15H
Machine weight kg 1400
Bucket volume 0.035
Engine model   Kubota/Koop B&S 2 cylinders
Decibels within 1 meter Dba 95-105
L*W*H mm 3050*1100*1500
Chassis width mm 1100/990-1300
Maximum digging radius mm 3150
Maximum digging height mm 2700
Maximum digging depth mm 1880
Walking speed km/h 2.2
Swing speed   10″/360°
Pump type   Gear pump
Max. discharge flow L/min 33
Swing motor type
Grade ability   45°
Hydraulic system
Walking motor

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
