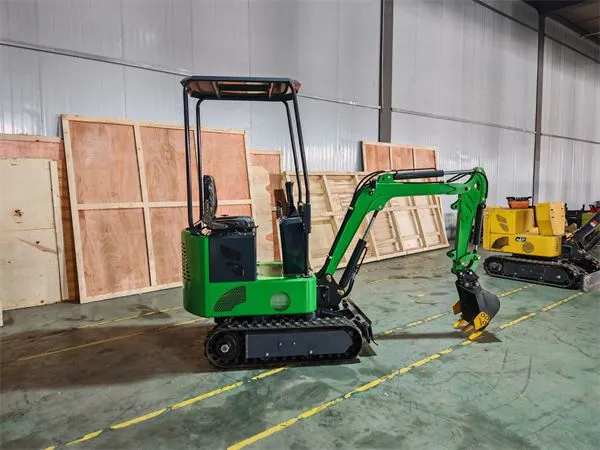

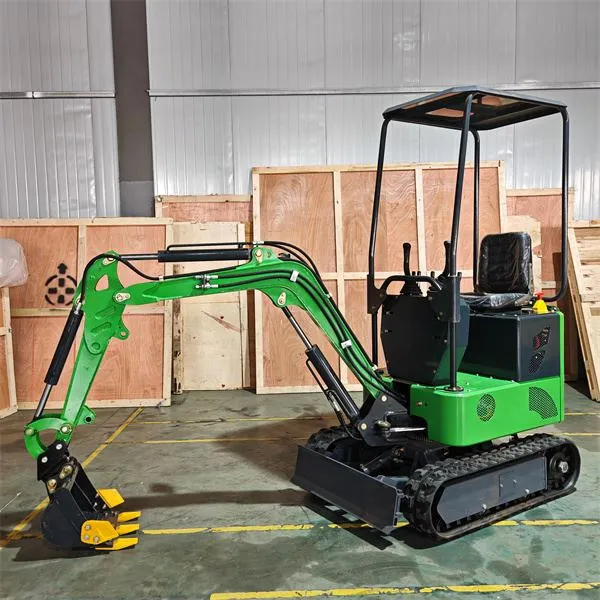

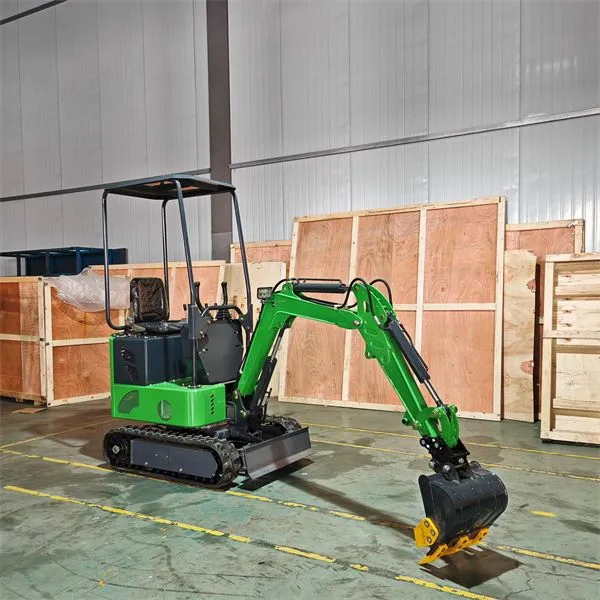

1 Ton Digger With Canopy

The ME10 is a mini electric excavator designed for small-scale construction and landscaping applications. Its hydraulic system and crawler design provide strong power, stability, and easy operation on various terrains.

Share This Product, Choose Your Platform!

Product Details

The ME10 is a mini electric excavator that is compact and efficient. It can be equipped with a roof or cab upon request. The charger can be customized in various specifications and uses a two-way fast charge, which greatly improves the charging speed. The ME10’s hydraulic system and crawler design provide powerful power and pulling force, allowing it to operate on any terrain.

Product Parameters:

Model ME-10D Operating Weight(kg) 1030
L*W*H(mm) 2800*1000*1450 Gradeablity(°) 35
Maximum Power(kw) 7 Max.Digging Depth(mm) 1700
Bucket Capacity(m³) 0.025 Max.Digging Height(mm) 2400
Motor Speed(rpm) 3000 Max.Dumping Height(mm) 1700
Hydraulic Flow(L/mim) 27 Max.Digging Radius(mm) 2650
Swing Speed(rmp) 1-13 Maximum Ground Horizontal Distance(mm) 3660
Working Time(h) 8-10 Track Length(mm) 1190
Battery capacity(ah) 200 Tail Swing Radius(mm) 825
System Pressure(MPa) 18 Minimum Ground Clearance(mm) 90

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
