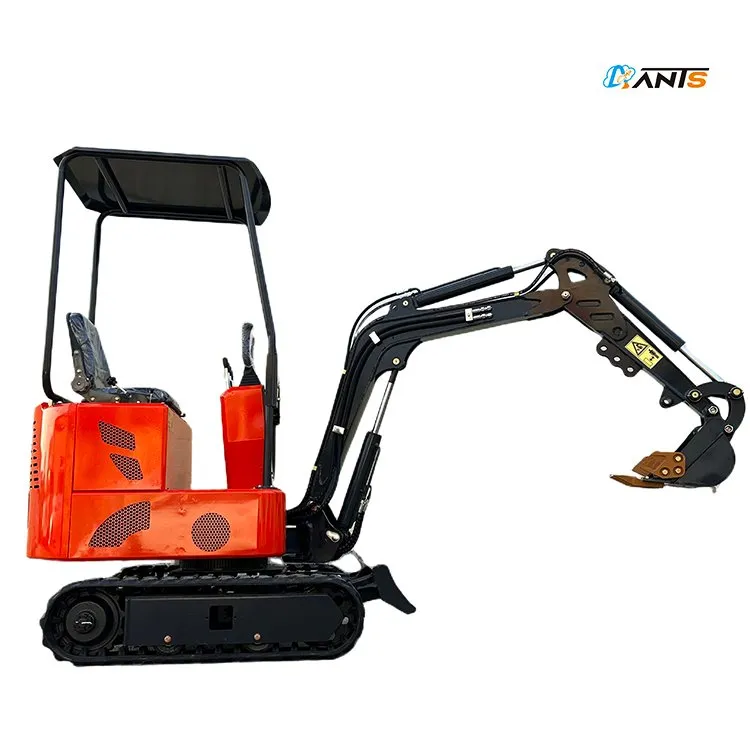

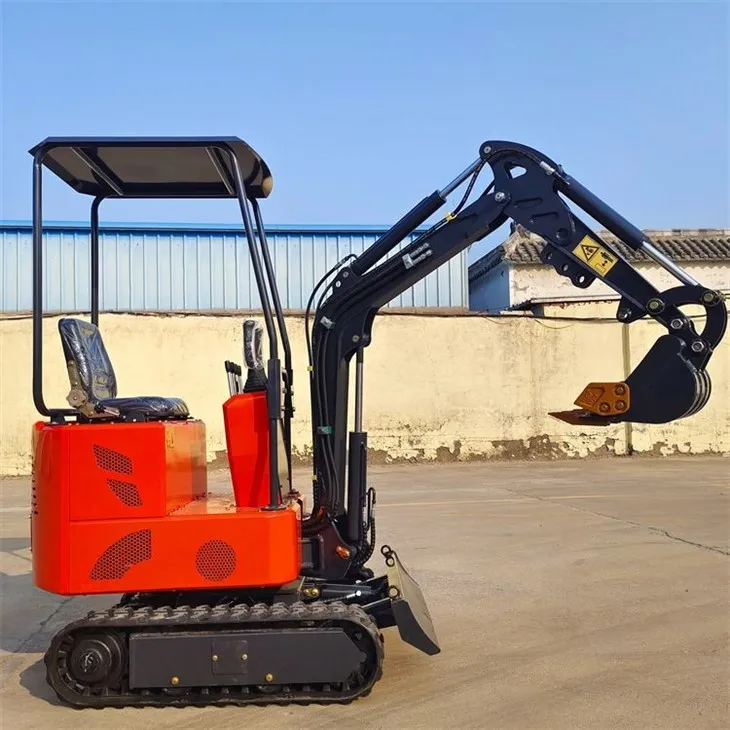

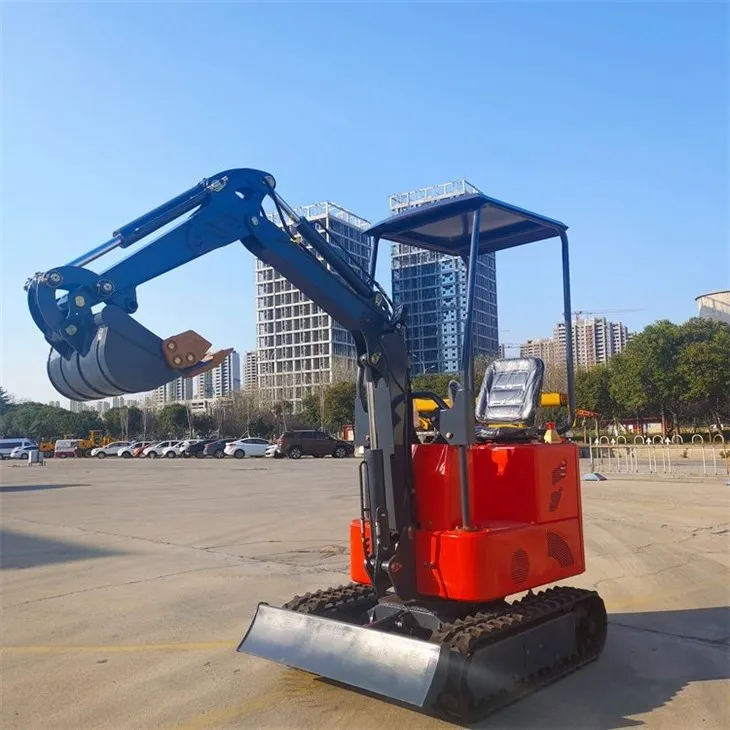

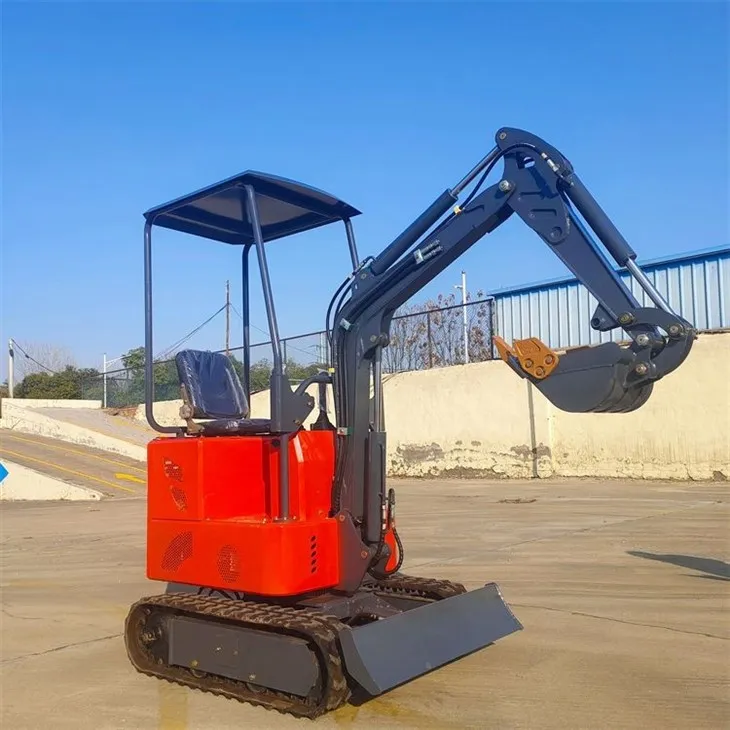

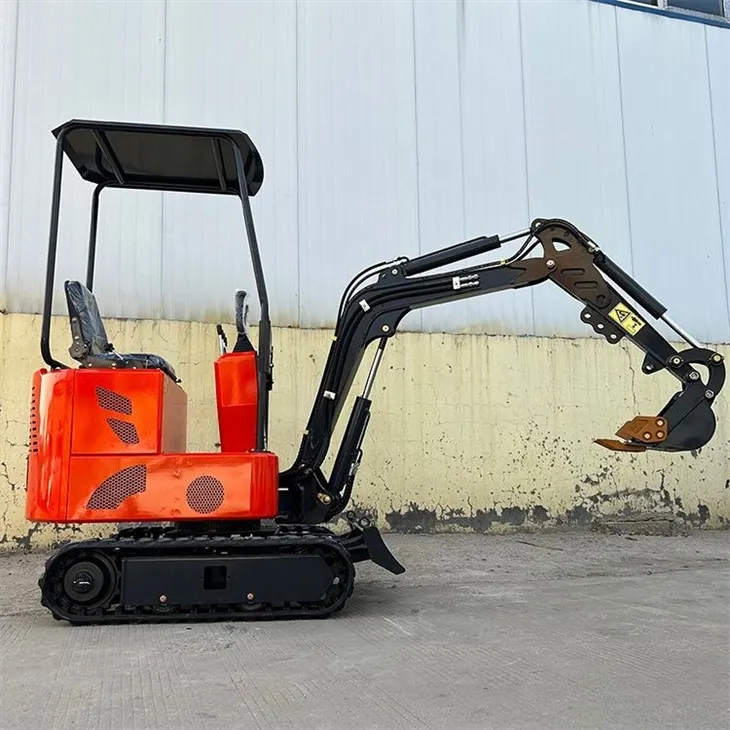

1 Ton Mini Excavator

Beautiful appearance, very small and flexible. Natural rubber track, boom strengthening design, increase the coarse cylinder, make the whole machine longer life. Rotary support, bolts and other parts are heat treated to extend the service life. 360 degree rotation, easy to learn, flexible operation.

Share This Product, Choose Your Platform!

Product Details

Beautiful appearance, very small and flexible. Natural rubber track, boom strengthening design, increase the coarse cylinder, make the whole machine longer life. Rotary support, bolts and other parts are heat treated to extend the service life. 360 degree rotation, easy to learn, flexible operation. Various accessory configurations can be added, such as wood grabbers, rakes, auger, buckets, mud buckets, etc. Scope of application: road, indoor, landscaping, such as orchard fertilization, river, tree planting, ditching, indoor crushing, etc.

When choosing the power mode of small excavator, it is necessary to consider the actual needs and working environment, choose the appropriate power mode to improve work efficiency, and choose the electric small excavator with low noise and environmental protection when working in small Spaces such as indoor decoration or underground construction; Do not need to consider the noise and environmental conditions, you can choose the engine powered small excavator.

Project Unit ME10E /D
Machine weight kg 930
Bucket volume m³ 0.025
Engine model Battery LiFePO4/LiCoMnNiO2
BYD: Lithium battery + BMS 72v/ah 180/210
Working time h 6–8
PMSM motor 72v/Kw 4.5
Peak power Kw 9
Charging time h 2–8
Power consumption Kwh 1.2–1.55
Decibels within 1 meter Dba < 50
L × W × H mm 2750×800 / 1000×1400
Standard chassis width mm 1000
Telescopic chassis mm 800–1000
Max. digging radius mm 3020 / 3100
Max. digging height mm 2600
Max. digging depth mm 1780
Track width mm 180
Tail Turning Radius mm 650
Track length mm 1230
Walking speed km/h 2.2
Hydraulic flow L/min 25–28
Swing speed 10″ / 360°
Climbing angle 30°
Diesel/gasoline engine model Koop192fe / B&S
Power Kw 8.2 / 10.07

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.

Ant Cloud Intelligent Equipment (Shandong) Co., Ltd.
