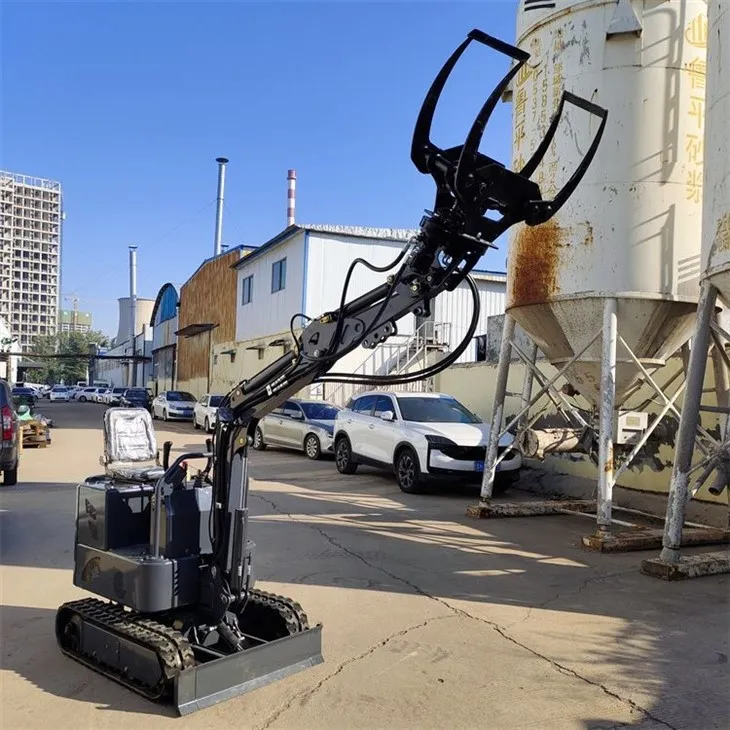

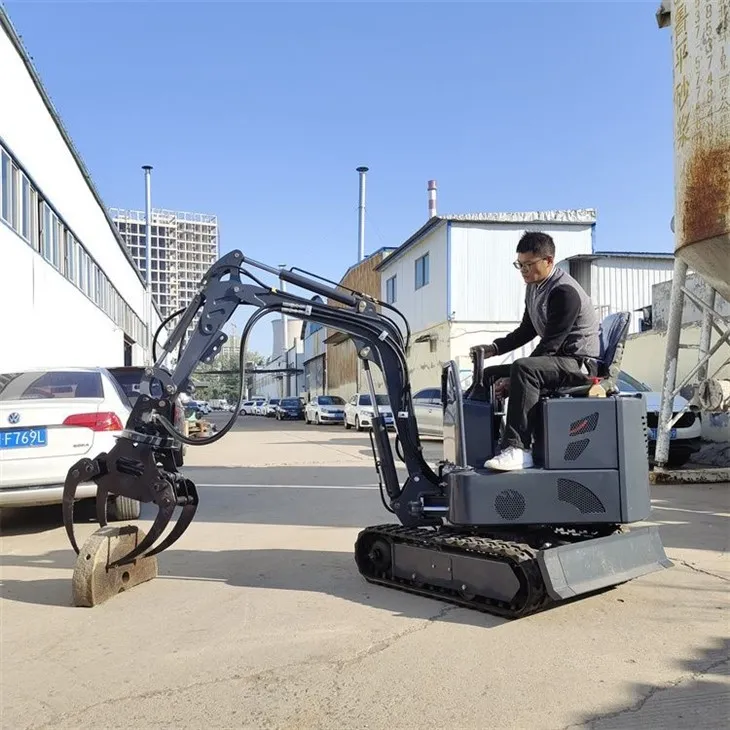

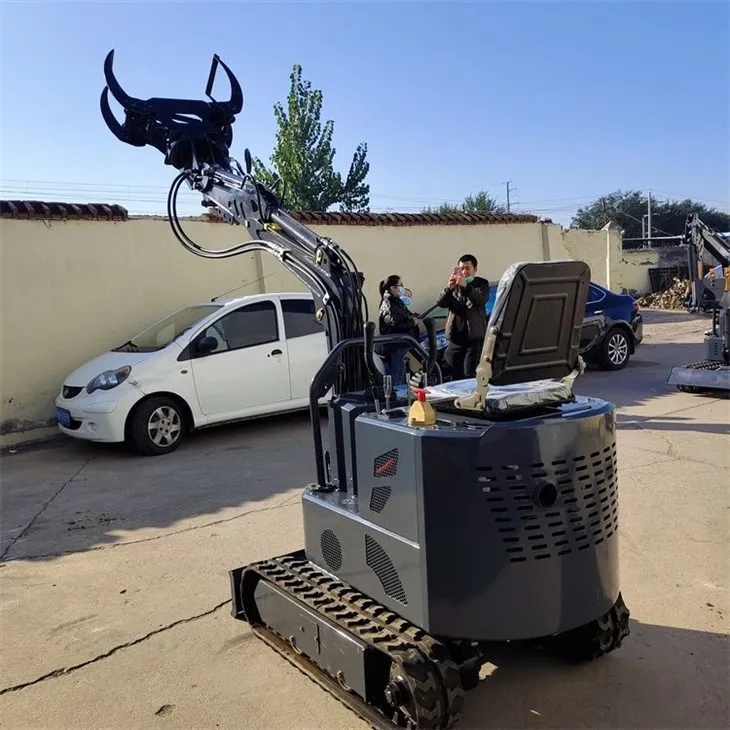

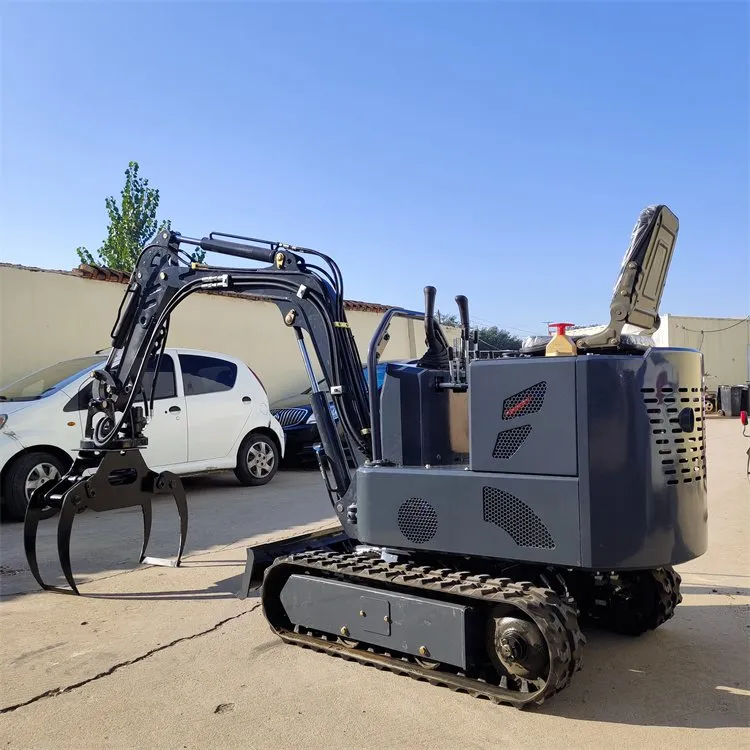

1 Ton New Crawler Excavator

1) Assemble the spare crushing hammer pipeline, which can be broken hammer work. 2) Widen the body, the width is 1 meter, the body is more stable. 3) Equipped with well-known brand engine, strong power.

Share This Product, Choose Your Platform!

Product Details

1) Assemble the spare crushing hammer pipeline, which can be broken hammer work.

2) Widen the body, the width is 1 meter, the body is more stable.

3) Equipped with well-known brand engine, strong power.

4) Increase the hydraulic tank, split design, more good for heat dissipation.

5) Optional gasoline/diesel/electric power, select the size of a bucket.

6) Thickened dozer shovel, more stable support.

7) Beautiful appearance, ergonomic design.

Project Unit ME10E /D
Machine weight kg 930
Bucket volume m³ 0.025
Engine model Battery LiFePO4/LiCoMnNiO2
BYD: Lithium battery + BMS 72v/ah 180/210
Working time h 6–8
PMSM motor 72v/Kw 4.5
Peak power Kw 9
Charging time h 2–8
Power consumption Kwh 1.2–1.55
Decibels within 1 meter Dba < 50
L × W × H mm 2750×800 / 1000×1400
Standard chassis width mm 1000
Telescopic chassis mm 800–1000
Max. digging radius mm 3020 / 3100
Max. digging height mm 2600
Max. digging depth mm 1780
Track width mm 180
Tail Turning Radius mm 650
Track length mm 1230
Walking speed km/h 2.2
Hydraulic flow L/min 25–28
Swing speed 10″ / 360°
Climbing angle 30°
Diesel/gasoline engine model Koop192fe / B&S
Power Kw 8.2 / 10.07

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
