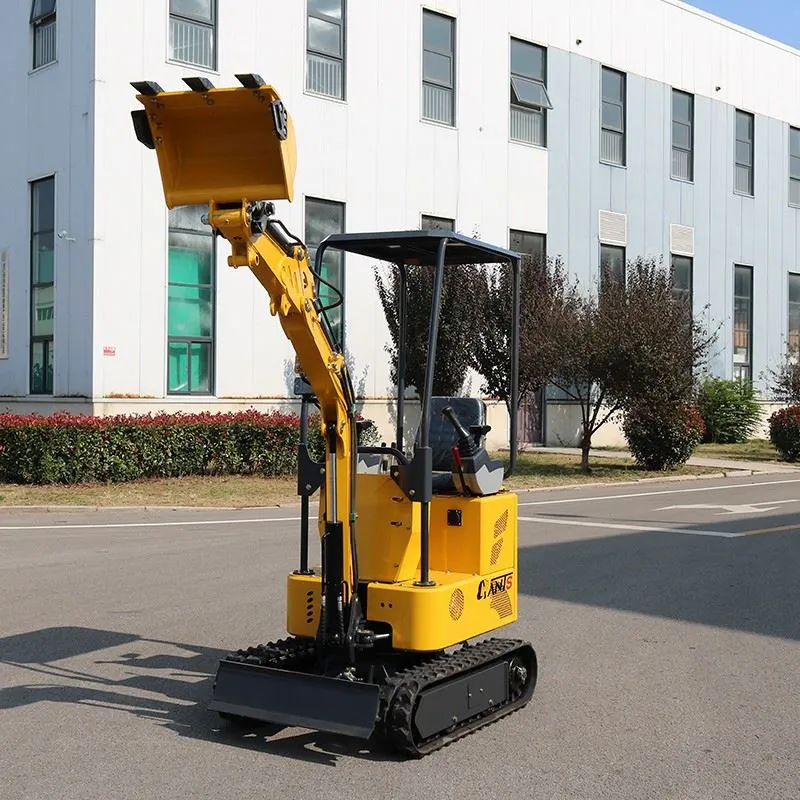

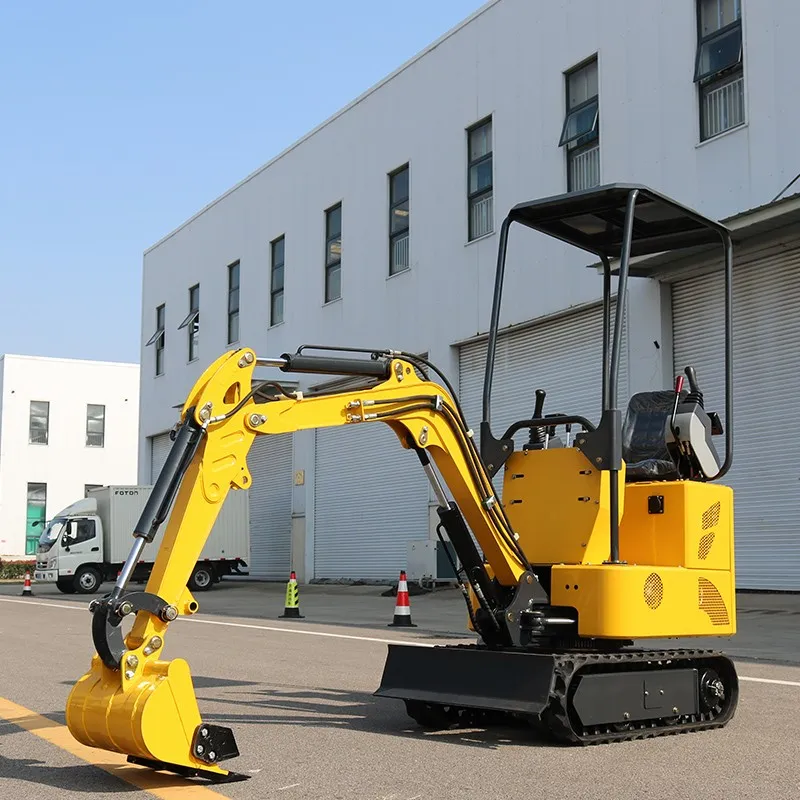

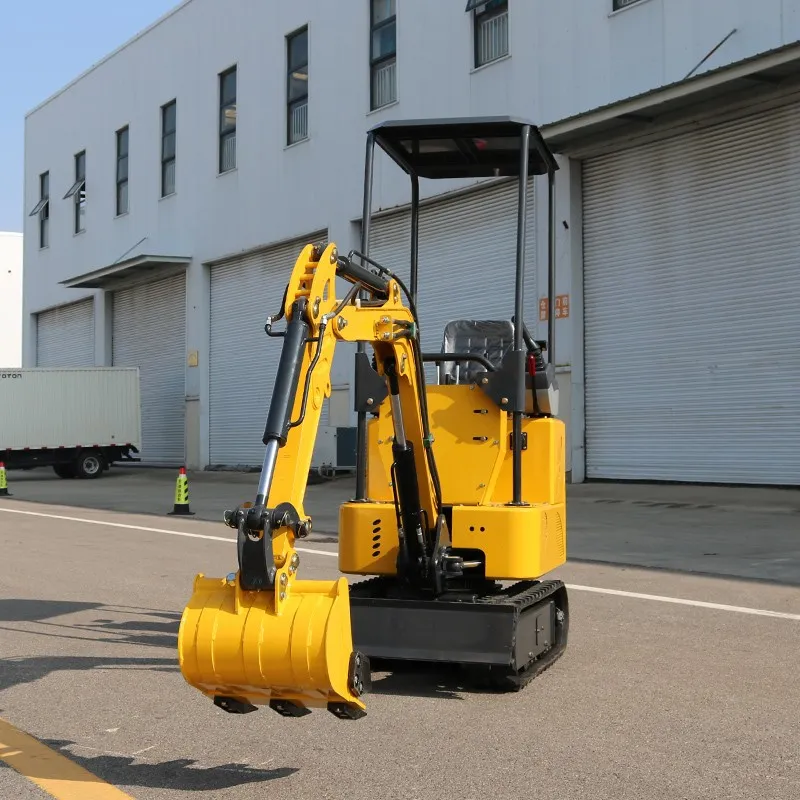

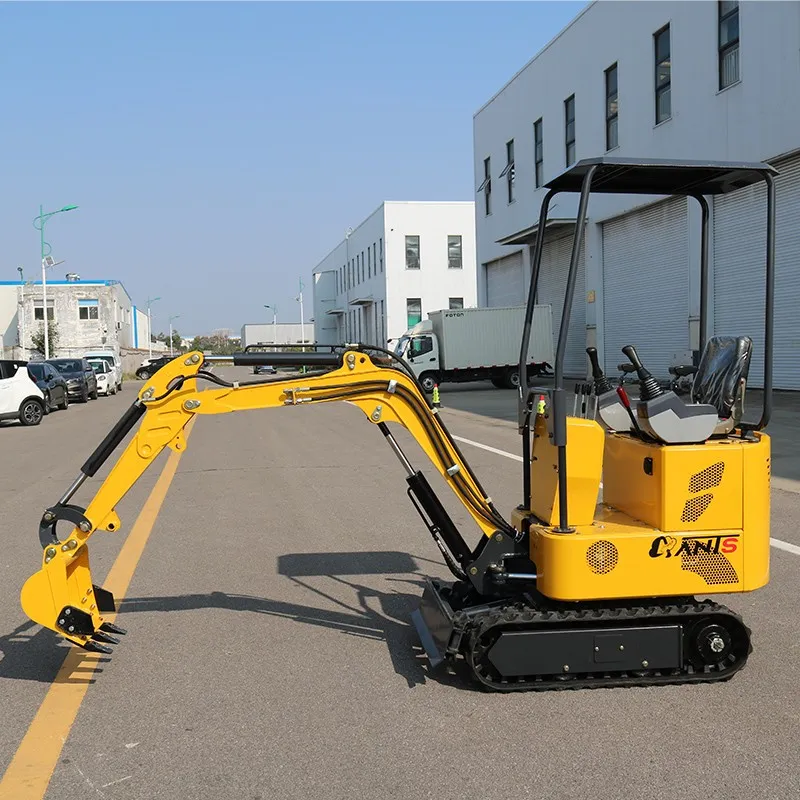

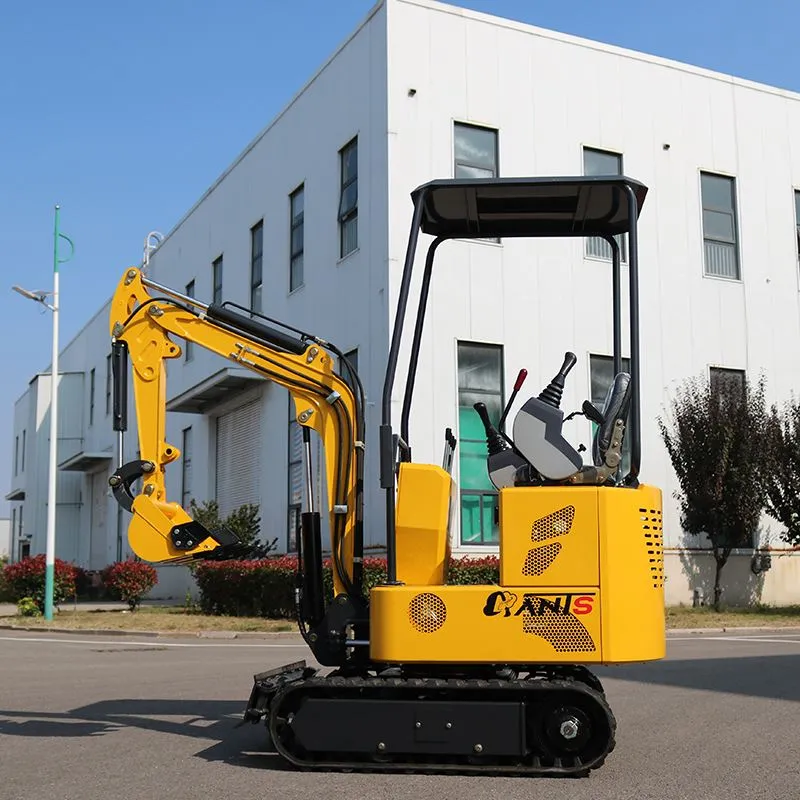

1 Ton Small Excavator Hydraulic Pilot Control

1 ton electric excavator, hydraulic pilot operation, sensitive action, quick response, equipped with large-capacity lithium battery, battery life of 8-10 hours. Professional customized DC motor for pump, powerful power. The machine will not generate high temperature, and the operating comfort is excellent. The machine has low noise and no exhaust emissions.

Share This Product, Choose Your Platform!

Product Details

Main information of small electric excavator ME10:
1.1000KG, 0.025cbm
2.Koop192fe/B&S
3.Maximum digging depth: 1675mm; Maximum digging height: 2450mm

Products Parameters:
Model ME-10 Operating Weight(kg) 1030
L*W*H(mm) 2800*1000*1450 Gradeablity(°) 35
Engine Model Koop192fe/B&S Max.Digging Depth(mm) 1700
Maximum Power(kw) 8.3 Max.Digging Height(mm) 2400
Bucket Capacity(m³) 0.025 Max.Dumping Height(mm) 1700
Motor Speed(rpm) 2500 Max.Digging Radius(mm) 2650
Hydraulic Flow(L/mim) 23 Maximum Ground Horizontal Distance(mm) 3660
Swing Speed(rmp) 1-13 Track Length(mm) 1190
Battery capacity(ah) 180 Tail Swing Radius(mm) 825
System Pressure(MPa) 18 Minimum Ground Clearance(mm) 90

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
