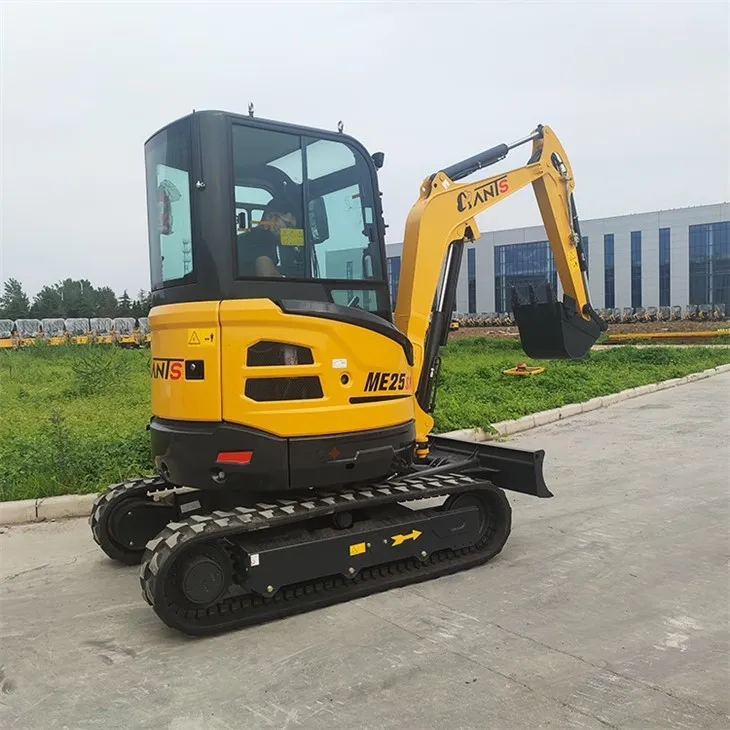

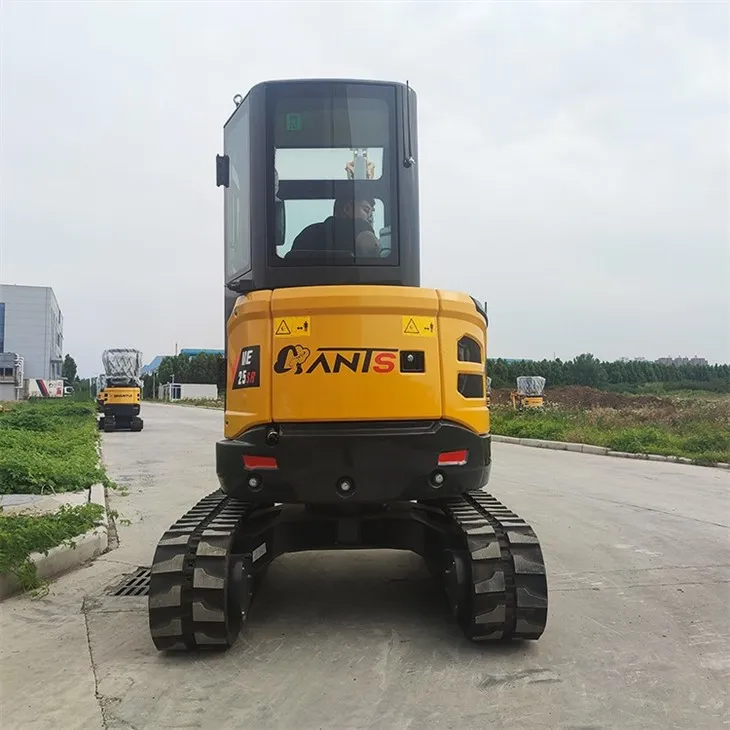

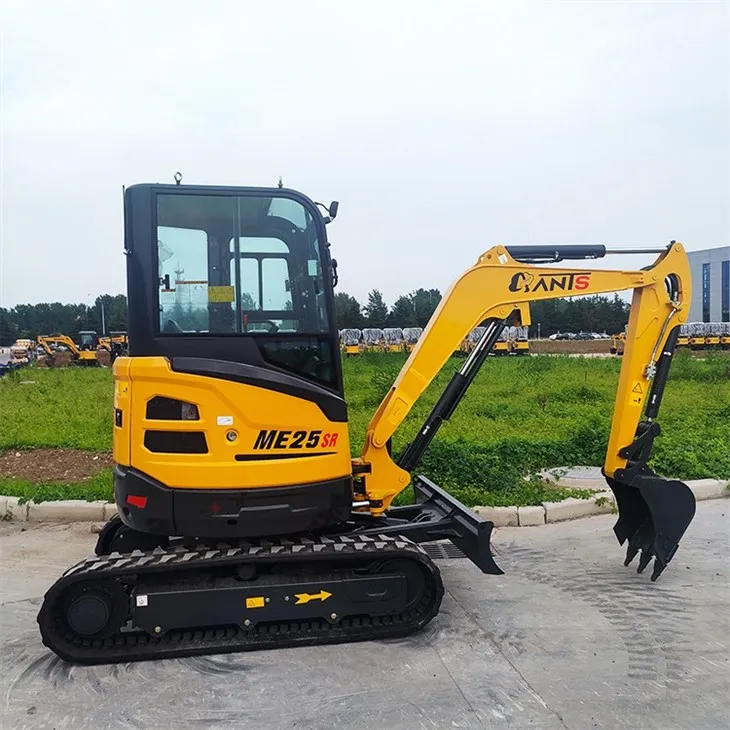

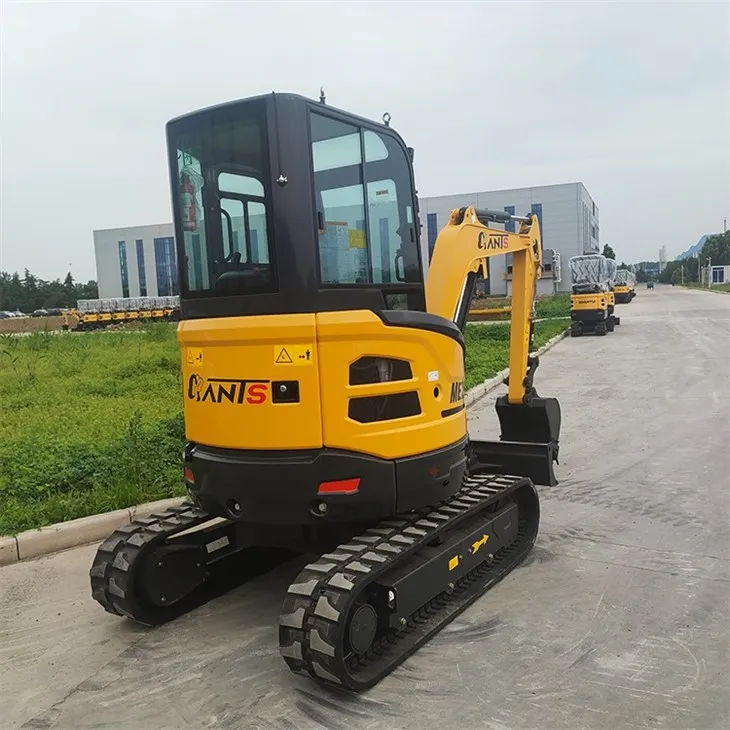

2 Ton Electric Excavator

The 2ton electric mini excavator is a kind of engineering machinery and equipment suitable for small engineering, municipal construction, landscaping, farmland operation, orchards and other scenes.

Share This Product, Choose Your Platform!

Product Details

The electric mini excavator is a kind of excavator driven by electricity, which has more advantages than the traditional oil excavator.

First of all, electric mini excavators use batteries as energy sources, which have higher energy density and lower maintenance costs than traditional fuel engines. At the same time, because there is no noise and exhaust emissions of fuel engines, electric small excavators have less impact on the environment.

Secondly, the operation of electric small excavators is more flexible. Due to the characteristics of the electric drive, the electric mini excavator can be operated without relying on the traditional fuel engine and can be charged in a short time, making it more suitable for operation in small Spaces and indoors.

In addition, electric mini excavators are also more energy efficient. The energy utilization rate of the traditional fuel engine is relatively low, and the battery of the electric mini excavator can efficiently convert electrical energy into mechanical energy, thereby improving the energy utilization efficiency.

Appearance design: adopts tailless design, the tail does not expand the main machine, reducing the risk of collision during operation.

Power system: adopts permanent magnet synchronous motor, energy saving, and provides strong power.Equipped with high-performance lithium-ion battery pack, long endurance, support fast charging, saving a lot of time.

Optional accessories: a variety of working devices: breaker, wood grabber, etc., to meet different operation needs.

PROJECT UNIT ME20E
Machine weight kg 1980
Bucket volume 0.06
Engine model Battery LiFePO4/LiCoMnNiO2
BYD:Lithium battery+BMS 72v/ah 300/450
Working time h 4/6
PMSM motor 72v/Kw 7.5
Peak power Kw 15
Charging time h 4-8
Power consumption Kwh 5.2-5.7
Decibels within 1 meter Dba < 50
L*W*H mm 3575*990/1330*1650
Chassis width mm 1350/990-1300
Maximum digging radius mm 4120
Maximum digging height mm 3500
Maximum digging depth mm 2300
Walking speed km/h 2. 2/3
Swing speed 10″/360°
Pump type Variable volume pump
Max. discharge flow L/mim 54
Swing motor type Eaton SW2.5K
Grade ability 58°
Hydraulic system Load sensitive

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
