2T Electric Excavator With Cabin

2T Electric Hydraulic Crawler Excavator Compact Digger with Roof or Cab Option Low Noise Zero Emission OEM Customizable.

Share This Product, Choose Your Platform!

Product Details

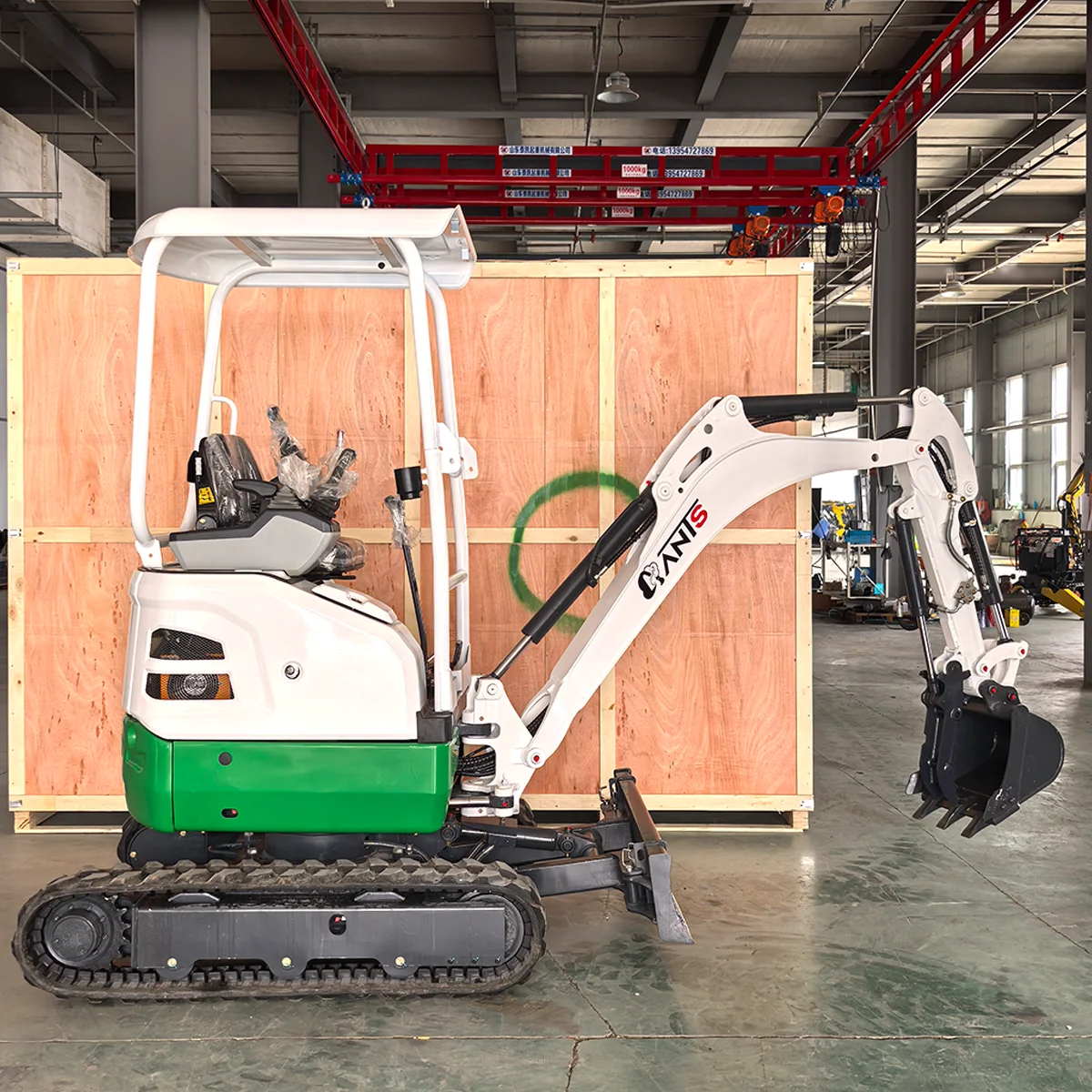

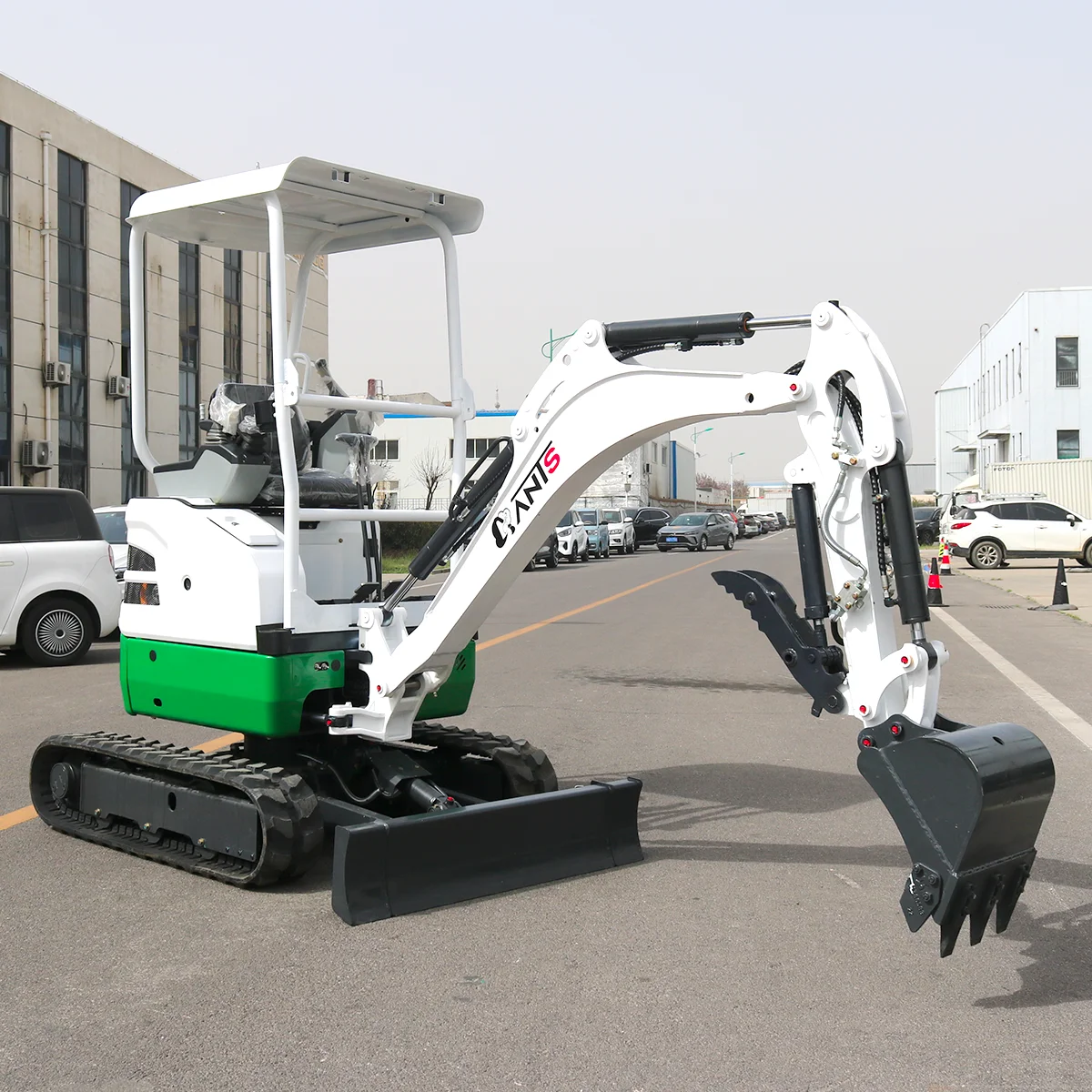

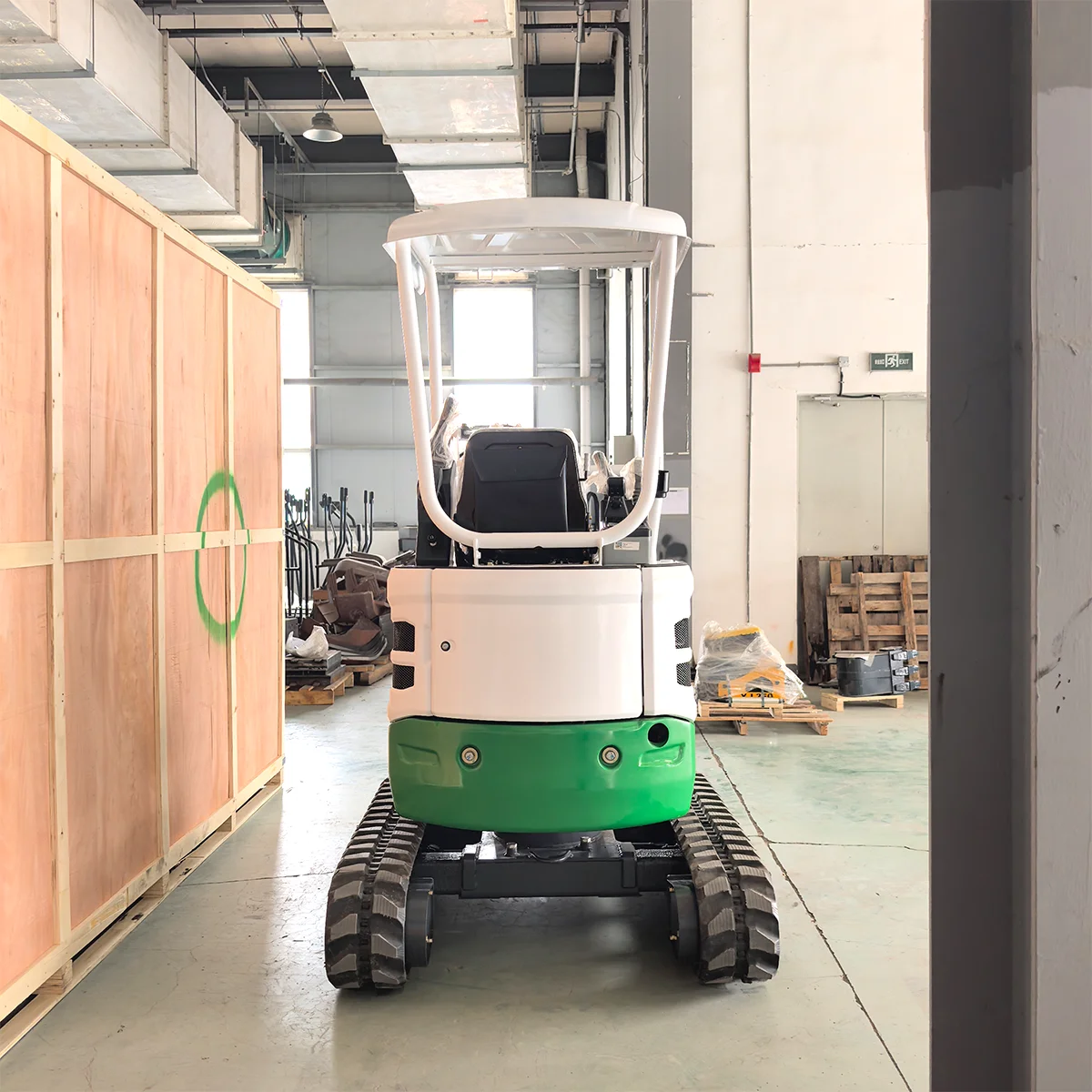

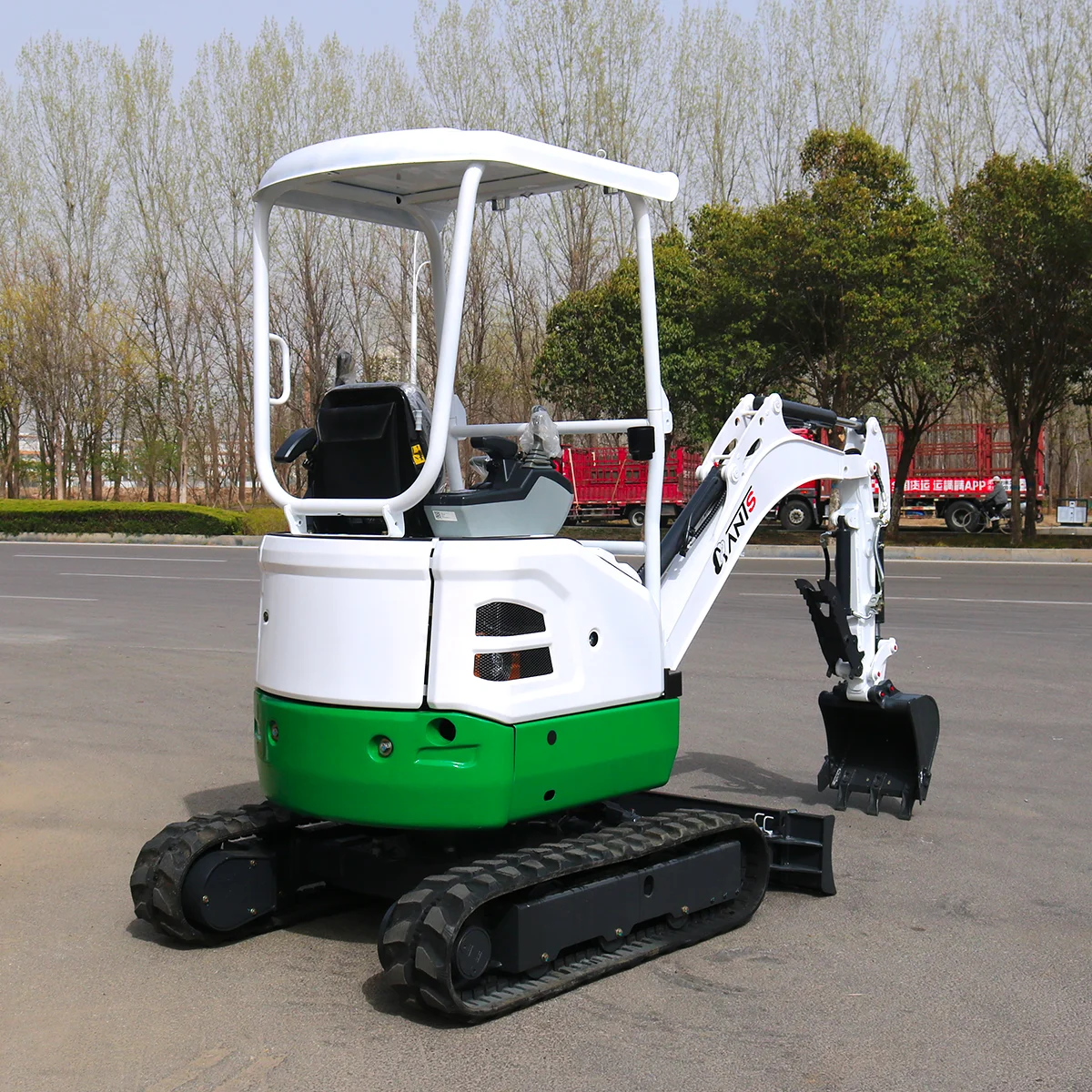

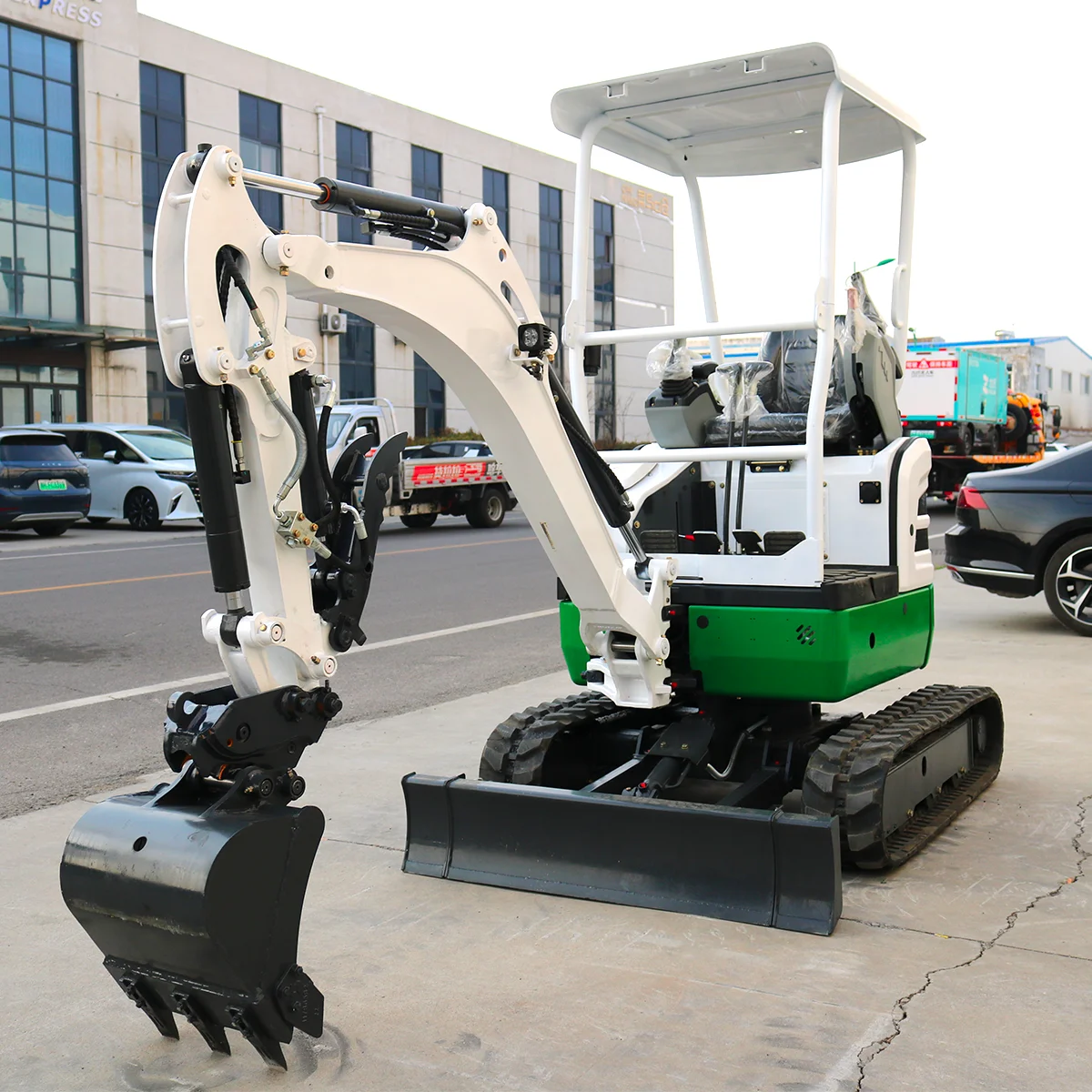

The ME20 electric excavator is a powerful and efficient machine designed for versatility and comfort. It features a compact body with the option of a roof or a cab with a wide glass view. The excavator uses electricity to power the motor, which then drives the pump, which in turn powers the hydraulic oil. It is equipped with a hydraulic operating system for better operation. The tracks are rubber tracks, which are sturdy and durable. Of course, steel tracks can also be customized to meet your different needs.

Product Parameters:

Product Name ME20E Chassis width 1350/990-1300mm
Machine weight 1980kg Maximum digging radius 4120mm
Bucket volume 0.06m³ Maximum digging height 3500mm
Engine model LiFePO4/LiCoMnNiO2 Battery Maximum digging depth 2300mm
BYD:Lithium battery+BMS 300/450 72v/ah Walking speed 2. 2/3km/h
Working time 4/6h Swing speed 10″/360°
PMSM motor 7.5 72v/Kw Pump type Variable volume pump
Peak power 15Kw Max. discharge flow 54L/mim
Charging time 4-8h Swing motor type Eaton SW2.5K
Power consumption 5.2-5.7Kwh Grade ability 58°
Decibels within 1 meter < 50Dba Hydraulic system Load sensitive
L*W*H 3575*990/1330*1650mm

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
