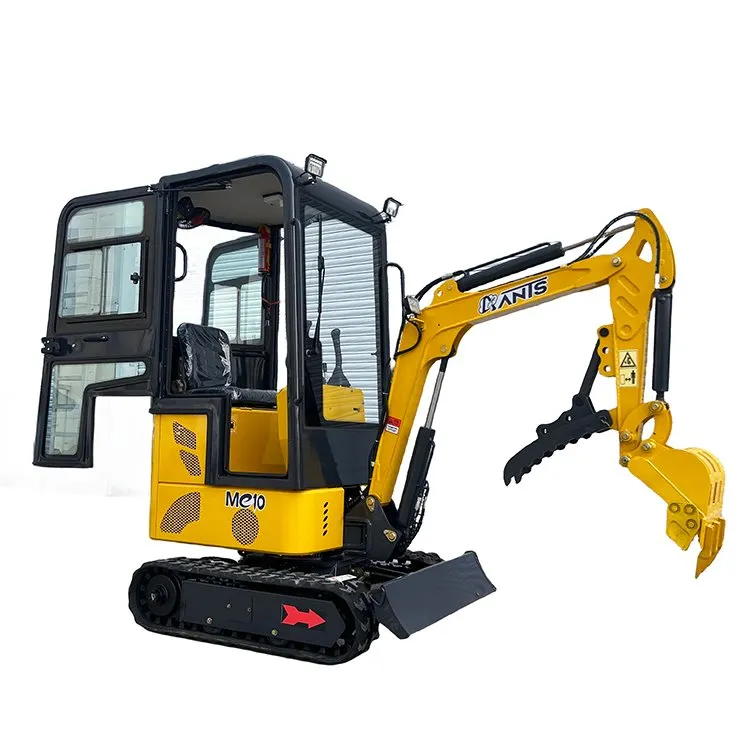

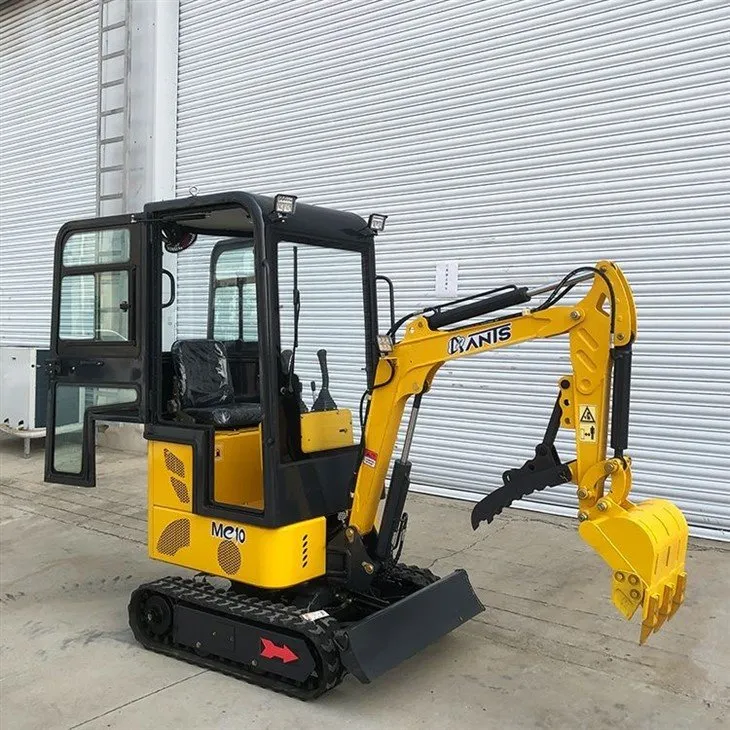

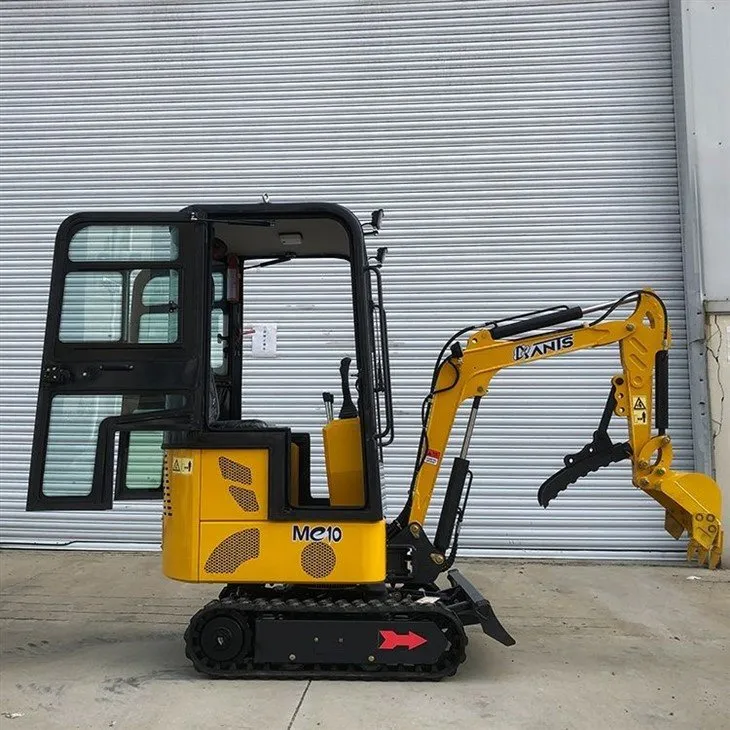

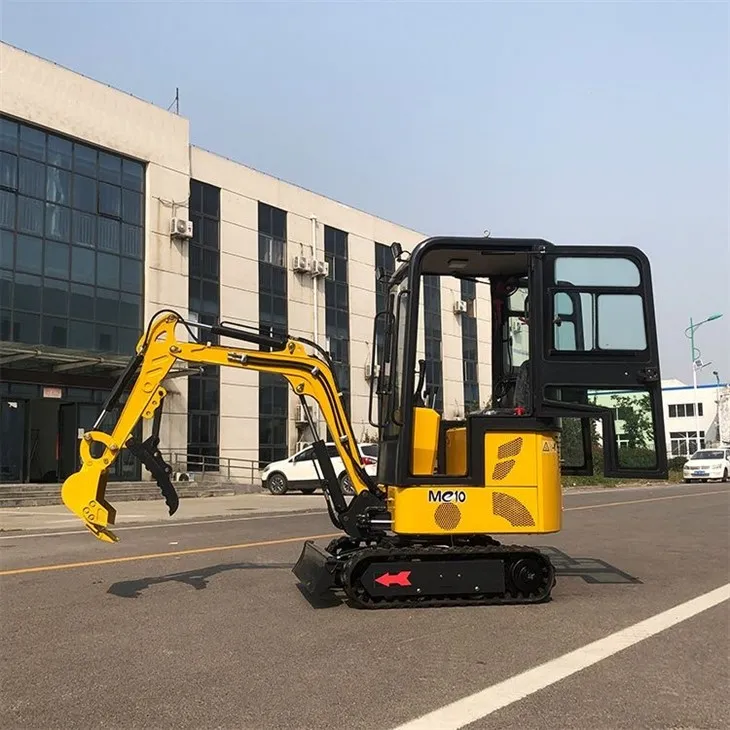

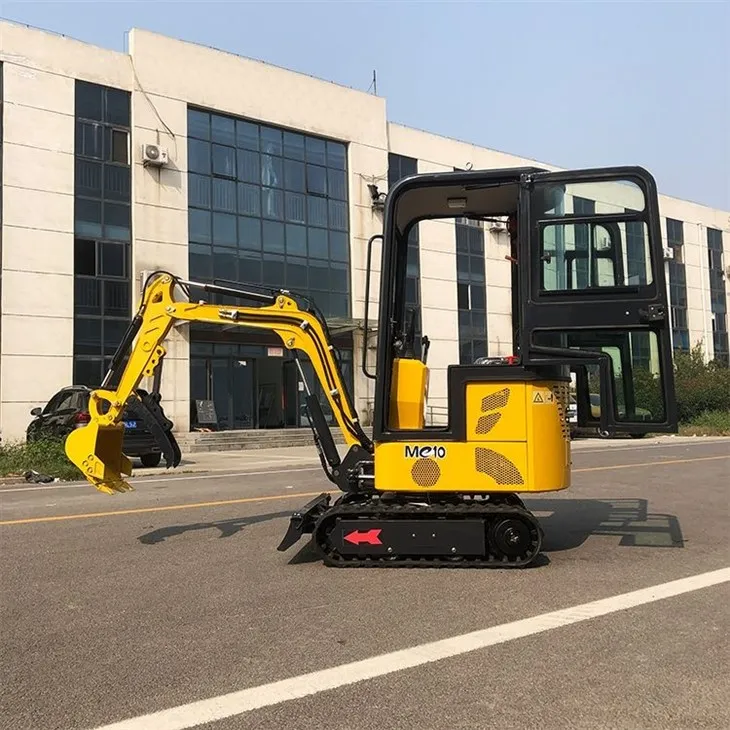

Battery-powered Mini Excavator

The ME10 is optional with the side swing function, which has many advantages when cleaning confined Spaces, including adapting to small Spaces, increasing operational flexibility, reducing operational difficulty and improving safety. These advantages make the side swing function play an important role in the narrow space cleaning, improve the cleaning efficiency and quality.

Share This Product, Choose Your Platform!

Product Details

Battery-powered mini excavator

Electric power system: using lithium battery as power source, it can be used in the condition of no wired power supply, continuous working time is not less than 6 hours, low noise during work, energy saving and environmental protection.

High efficiency: It has enough power, small volume and capacity, and supports the combination with other equipment, which has high production efficiency and low energy consumption.

Wide range of application: suitable for house maintenance, various pipelines and other infrastructure construction excavation work, but also has some basic functions of medium and large excavators, can be used in the construction of large excavators work environment.

Multi-function: In addition to the small excavator digging, loading materials, can also be used for special conditions of processing operations, such as replacing other working tools, installing rotary drilling drill bits, installing hooks for lifting weights, installing cleaning for cleaning work, etc.

Easy maintenance: simple product structure, easy maintenance.

Project Unit ME10E /D
Machine weight kg 930
Bucket volume m³ 0.025
Engine model Battery LiFePO4/LiCoMnNiO2
BYD: Lithium battery + BMS 72v/ah 180/210
Working time h 6–8
PMSM motor 72v/Kw 4.5
Peak power Kw 9
Charging time h 2–8
Power consumption Kwh 1.2–1.55
Decibels within 1 meter Dba < 50
L × W × H mm 2750×800 / 1000×1400
Standard chassis width mm 1000
Telescopic chassis mm 800–1000
Max. digging radius mm 3020 / 3100
Max. digging height mm 2600
Max. digging depth mm 1780
Track width mm 180
Tail Turning Radius mm 650
Track length mm 1230
Walking speed km/h 2.2
Hydraulic flow L/min 25–28
Swing speed 10″ / 360°
Climbing angle 30°
Diesel/gasoline engine model Koop192fe / B&S
Power Kw 8.2 / 10.07

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
