Compact Electric Boom-Swing Digger

The ME05 is a compact electric mini excavator designed for tight spaces and clean, quiet operation.

Share This Product, Choose Your Platform!

Product Details

The ME05 may only be a 0.5-ton electric mini excavator, but don’t underestimate it. It’s built for those jobs where space is tight – gardens, greenhouses, basements, indoor construction… anywhere a big machine simply can’t squeeze. Since it runs purely on electric power, it’s quiet and produces zero emissions. No loud engine noise, no fumes – so people working around you won’t even complain.

One little detail you’ll love: the boom can swing to the side. That means digging right up against walls or corners without constantly shifting the whole machine. And the seat? It folds down, making transport and storage way easier than you’d expect.

You can also pop on different attachments in seconds – a bucket, a breaker, a grabber – whatever the job needs. One machine, multiple skills. For home projects or light construction work, the ME05 keeps things clean, safe, and surprisingly smooth. Small body, big convenience.

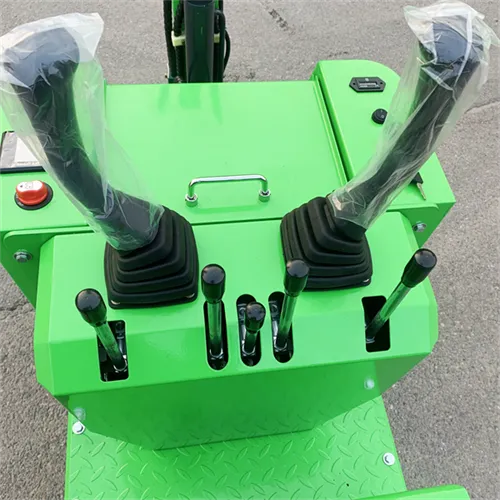

Hydraulic rocker: More flexible and sensitive operation.

Data display: The display shows the remaining power and reminds you to charge in time to ensure battery life.

Side arm swing: This means you can dig directly into walls or corners without having to constantly move the entire machine.

Seat foldable: Easy access to small spaces.

Slewing support: Achieve 360° rotation.

Hydraulic oil radiator: Ensure the continuous operation of the machine.

Special charger: Supports bidirectional fast charging for higher charging efficiency and faster charging speed.

Apply high-quality grease: Factory maintenance.

Products Parameter:

Product Name ME05E LWH 1600*660*1350mm
Operating Weight 680kg Chassis width 660mm
Bucket volume 0.025m³ Max. digging radius 2980mm
Engine model 7 Max. digging height 2630mm
BYD:Lithium battery+BMS 148 72v/ah 14 Max. digging depth 1190mm
Working time 2-8h Walking speed 2.2km/h
PMSM motor 3.5 72v/Kw Hydraulic flow 20L/mim
Peak power 7Kw Swing speed 12″ /360°
Charging time 2 – 8h Climbing angle 30°
Power consumption 1.2 – 1.4Kwh
Decibels within 1 meter < 50Dba

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
