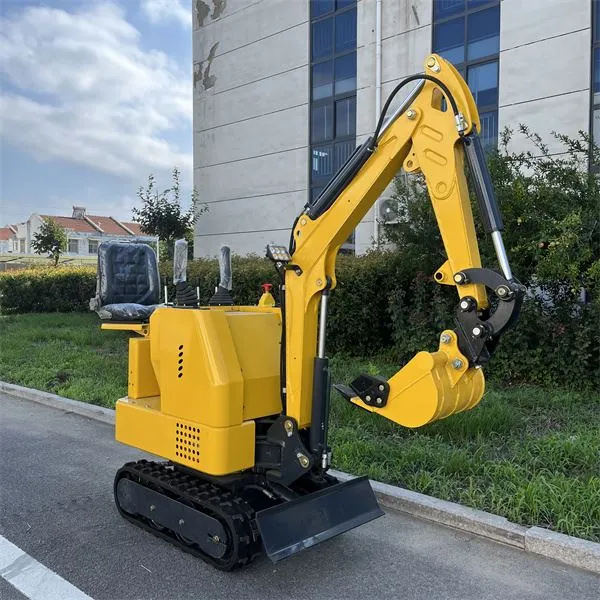

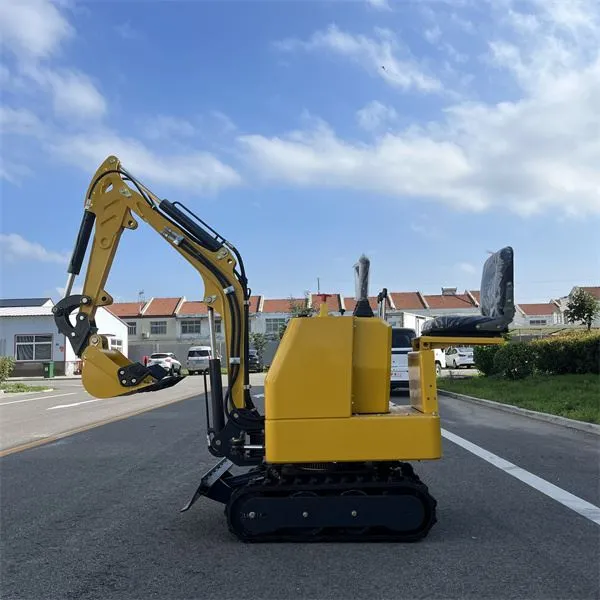

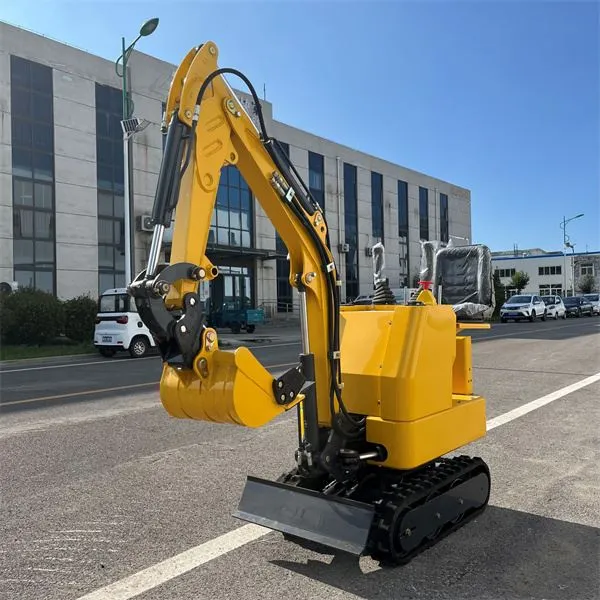

Compact ME05 Mini Digger

This 0.5 ton mini excavator features a foldable seat, swing boom, and dual-direction fast charging. Perfect for urban renovation and interior projects, it offers powerful performance in a compact size.

Share This Product, Choose Your Platform!

Product Details

Slewing bearing
The upper part of the excavator (cab, working device, etc.) can flexibly rotate relative to the lower part (chassis), achieving 360° rotation, completing excavation, loading and unloading operations in different positions.
Hydraulic oil radiator
It can reduce the temperature of hydraulic oil in the hydraulic system, avoid excessive oil temperature affecting the performance and stability of the hydraulic system, and protect hydraulic components.
Temperature controller
Set the temperature limit and output the control signal when the temperature reaches the preset value. Maintain the temperature in the appropriate range

Key Features & Functions:

Foldable Seat – Easy to fold for transport or storage, saving space without compromising comfort.

Swing Boom – Flexible side swing boom allows precise digging along walls, corners, and narrow spaces.

Dual-Direction Fast Charging – Charge in both directions for convenience and reduced downtime.

Advantages:

Efficiency – Quick charging and flexible operation mean more work done in less time

Cost-Effective – Delivers professional results with lower investment and operating costs.

Portable & Practical – Easy to transport with trucks or trailers, suitable for contractors and private users alike.

Products Parameter:

Product Name

ME05E

 LWH 1600*660*1350mm
Operating Weight 680kg Chassis width 660mm
Bucket volume 0.025m³ Max. digging radius 2980mm
Engine model 7 Max. digging height 2630mm
BYD:Lithium battery+BMS 148 72v/ah Max. digging depth 1190mm
Working time 2-8h Walking speed 2.2km/h
PMSM motor 3.5 72v/Kw Hydraulic flow 20L/mim
Peak power 7Kw Swing speed 12″ /360°
Charging time 2 – 8h Climbing angle 30°
Power consumption 1.2 – 1.4Kwh
Decibels within 1 meter < 50Dba

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.

Ant Cloud Intelligent Equipment (Shandong) Co., Ltd.
