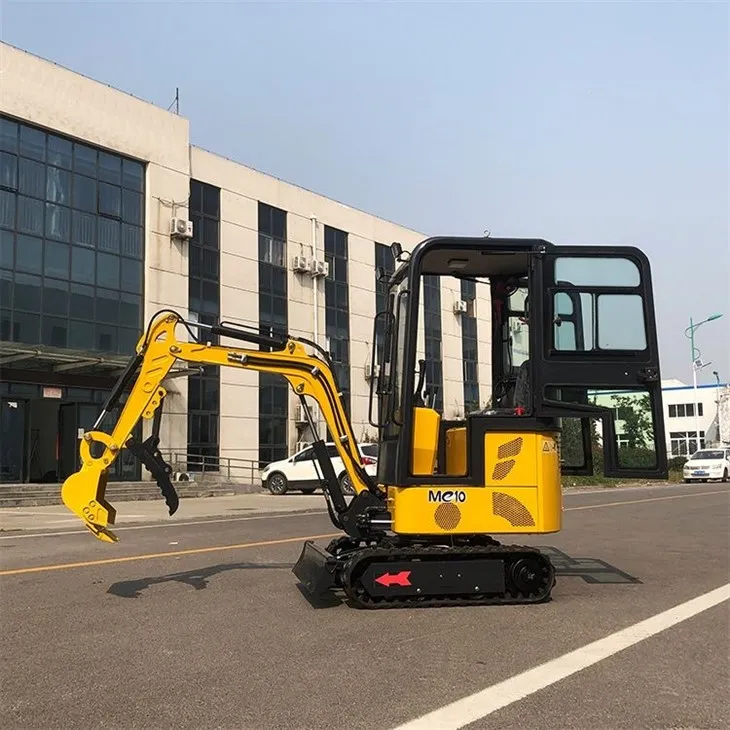

Cost-effective 1ton Mini Excavator

1. 1 meter wide body, the machine work more stable; 2. Double box type design dozer shovel, higher strength; 3. Divided bin type design of hydraulic tank, more conducive to hydraulic oil heat dissipation.

Share This Product, Choose Your Platform!

Product Details

Comply with the design concept of product reliability and functionality:
1. 1 meter wide body, the machine work more stable;
2. Double box type design dozer shovel, higher strength;
3. Divided bin type design of hydraulic tank, more conducive to hydraulic oil heat dissipation;
4. The engine overall shock absorption design, to avoid the engine circular vibration phenomenon.
5. Roof or cab can be added.
6. Side swing or track telescopic function can be added.

PROJECT UNIT ME10H
Mechine weight kg 930
Bucket voluem m³ 0.025
Engine model   Koop192fe/B&S
Decibels within l meter Dba 115
L*W*H mm 2590*1000*1450
Chassis width mm 1000/800-1000
Maximum digging radius mm 3100
Maximum digging height mm 2600
Maximum digging depth mm 1780
Walking speed km/h 2.2
Hydraulic flow L/min 25
Swing speed   10″/360°
Climbing angle   40°
Arm swing   Left85°Right45°

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
