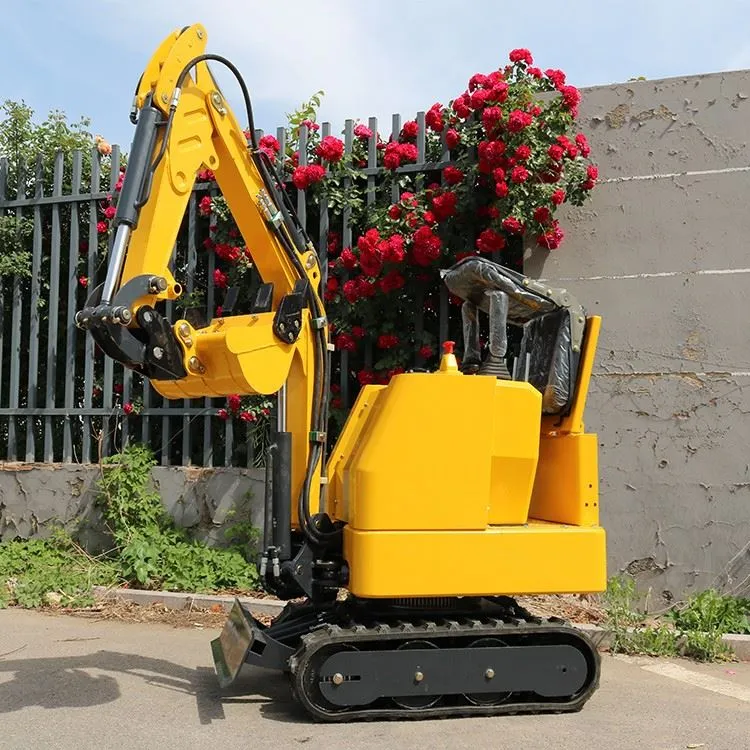

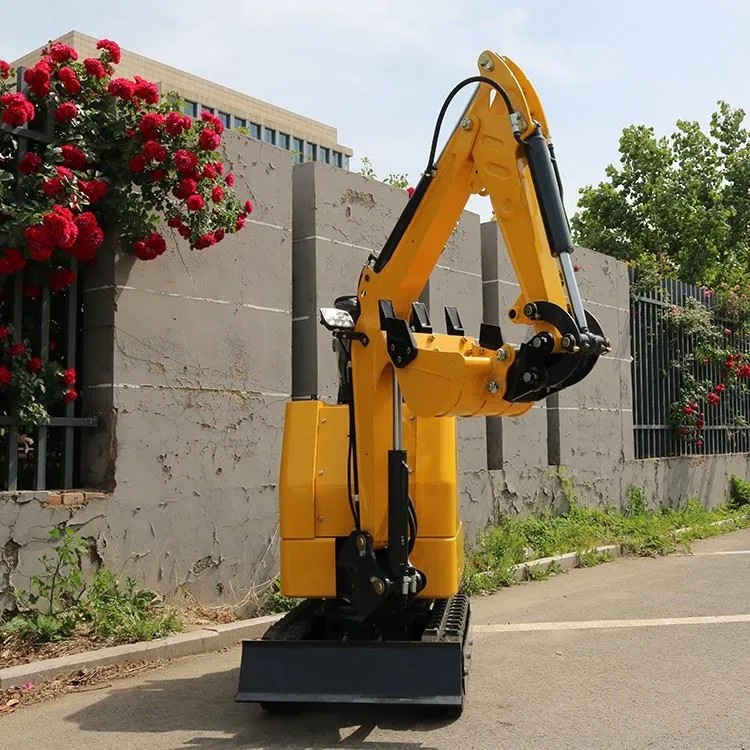

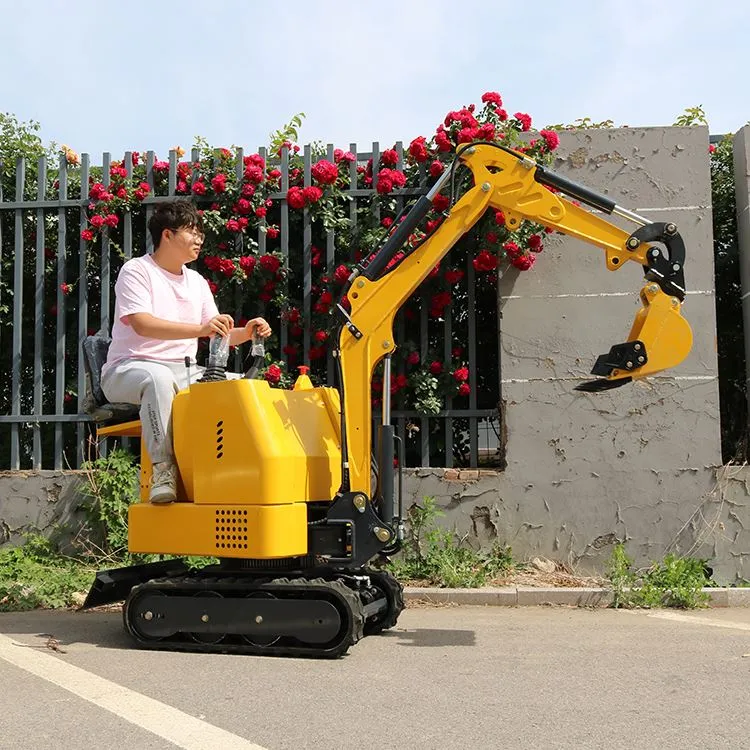

ME05 Garden Mini Electric Excavator

The machine is 660mm wide and can enter narrow spaces. Using large-capacity lithium batteries, it can work continuously for 7-8 hours. It is equipped with a side swing function of the boom, which is suitable for difficult excavation work such as near walls.

Share This Product, Choose Your Platform!

Product Details

ME05 electric small excavator, suitable for small projects such as gardens, courtyards, farms, forestry farms, ranches, factories, home decoration, and industrial equipment. Products can be customized according to your needs (color, logo, function, etc.).

Steel Steel comes from Baosteel: high-quality steel is the most effective guarantee of structural quality.
Laser cutting: make the size of each component more accurate.
Robot welding: stable and guaranteed welding quality.
Heat treatment process is used for slewing bearings and bushings: the heat treatment process of key components ensures the strength and wear resistance of the components.
Bolts and heat treatment (quenching), quenching, this heat treatment process will increase the surface hardness of the workpiece by 2-2.5 times. And then have longer wear resistance.
Rubber tracks supplied by China’s largest tire manufacturer: super wear-resistant natural rubber, longer life and higher strength.
Complete quality testing laboratory: rigorous quality inspection, sufficient design verification.

UNIT MEO5E
Machine weight kg 620
Bucket volume m³ 0.02
Engine model Battery LiFePO4/LiCoMnNio2
BYD:Lithium battery+BMS 72v/ah 148
Working time h 8
PMSM motor 72v/Kw 3.5
Peak power Kw 7
Charging time h 4-8
Power consumption Kwh 1.2-1.4
Decibels within 1 meter Dba < 50
L*W*H mm 1600*640*1350
Chassis width mm 600
Maximum digging radius mm 2760
Maximum digging height mm 2400
Maximum digging depth mm 1200
Walking speed km/h 2.2
Hydraulic flow L/mim 20
Swing speed 10″/360°
Climbing angle 30°

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.

Ant Cloud Intelligent Equipment (Shandong) Co., Ltd.
