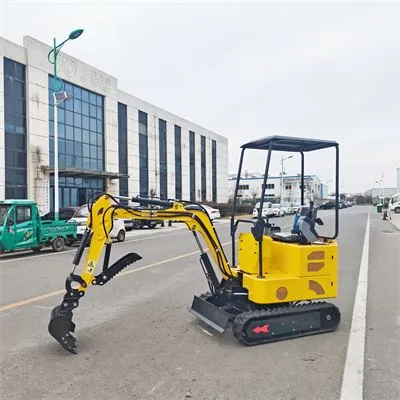

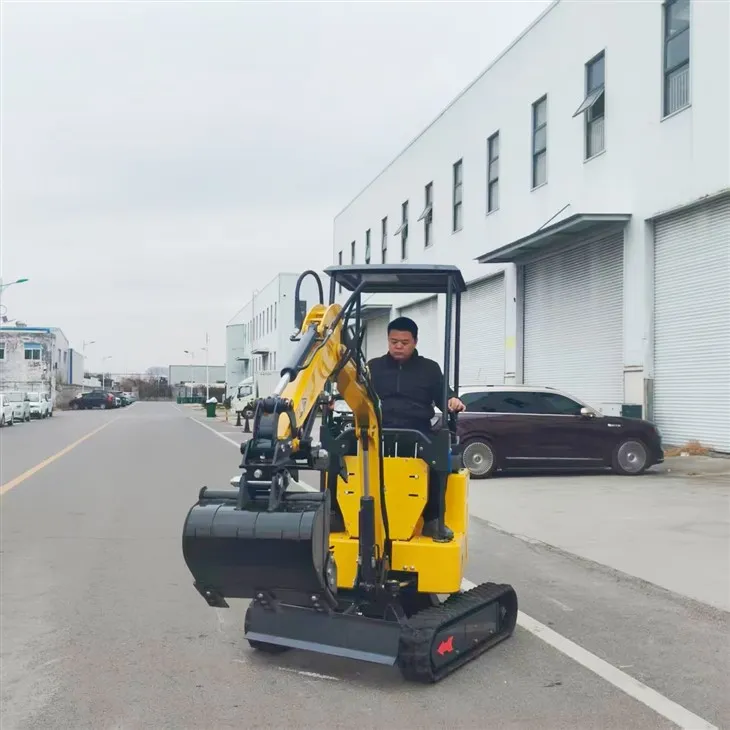

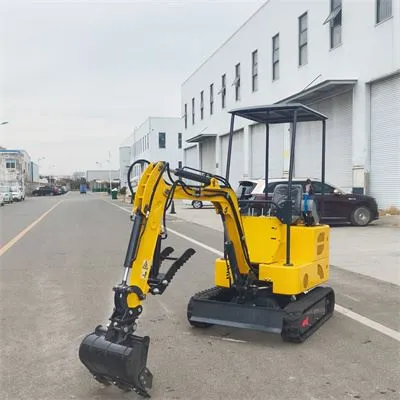

ME15 Mini Excavator | Canopy Optional

The ME15 Electric Mini Excavator canopy-optional is a compact and efficient electric machine designed for narrow spaces and diverse working conditions. Combining flexibility, safety, and customization, it features a fully electric drive system with low noise and zero emissions, making it ideal for urban construction, landscaping, municipal maintenance, indoor demolition, and agricultural applications.

Share This Product, Choose Your Platform!

Product Details

The ME15 Electric Mini Excavator is a compact and efficient electric machine designed for narrow spaces and diverse working conditions. Combining flexibility, safety, and customization, it features a fully electric drive system with low noise and zero emissions, making it ideal for urban construction, landscaping, municipal maintenance, indoor demolition, and agricultural applications.

The ME15 is equipped with an expandable undercarriage, allowing the track width to be adjusted to suit various job sites, improving both accessibility and stability. Its swing boom design enables close-to-wall and trench operations, significantly increasing efficiency in confined areas. The compact body and precise control ensure smooth operation even in tight spaces.

In addition, the ME15 offers a wide range of customizable options, including an optional canopy or enclosed cabin to enhance operator comfort and safety under various working conditions. The machine is also compatible with multiple attachments, supporting excavation, leveling, and multifunctional tasks. With reliable performance and flexible configurations, the ME15 is an ideal choice for users seeking high efficiency and low operating costs.

Products Parameter:

Product Name ME15E LWH 3050*1100*1500mm
Machine weight 1400kg Chassis width 1100/990-1300mm
Bucket volume 0.035m³ Max. digging radius 3150mm
Engine model LiFePO4/LiCoMnNiO2 Max. digging height 2700mm
BYD:Lithium battery+BMS 210/300/400 72v/ah Max. digging depth 1880mm
Working time 7/9/12h Walking speed 2.2km/h
PMSM motor 5.5 72v/Kw Hydraulic flow 20L/mim
Peak power 10Kw Swing speed 12″ /360°
Charging time 4-8h Climbing angle 45°
Power consumption 1.5-2.5Kwh Decibels within 1 meter < 50Dba

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
