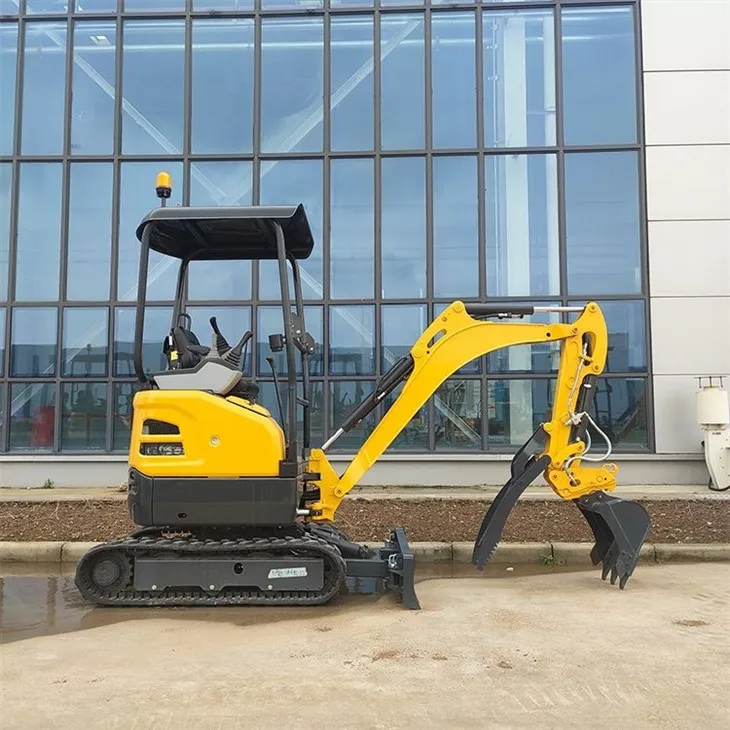

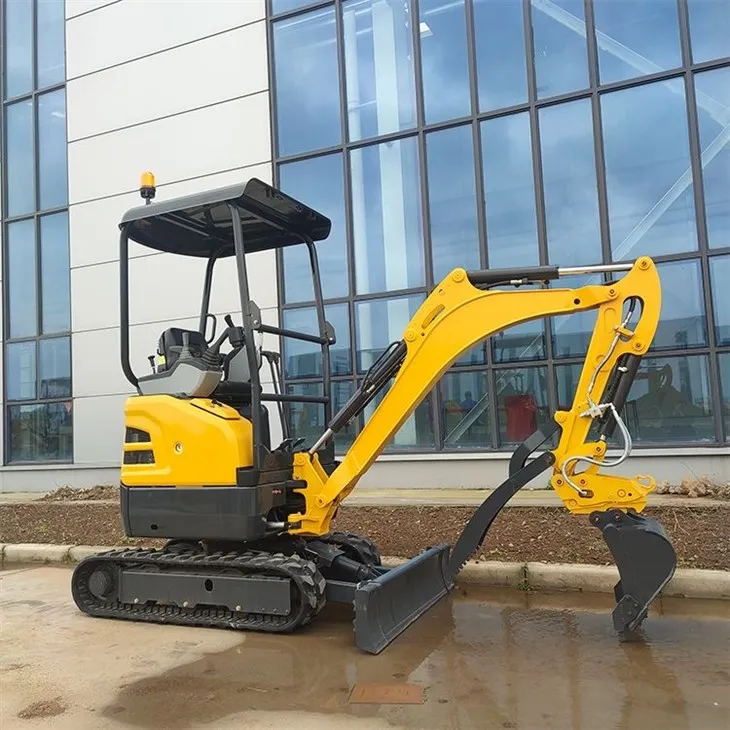

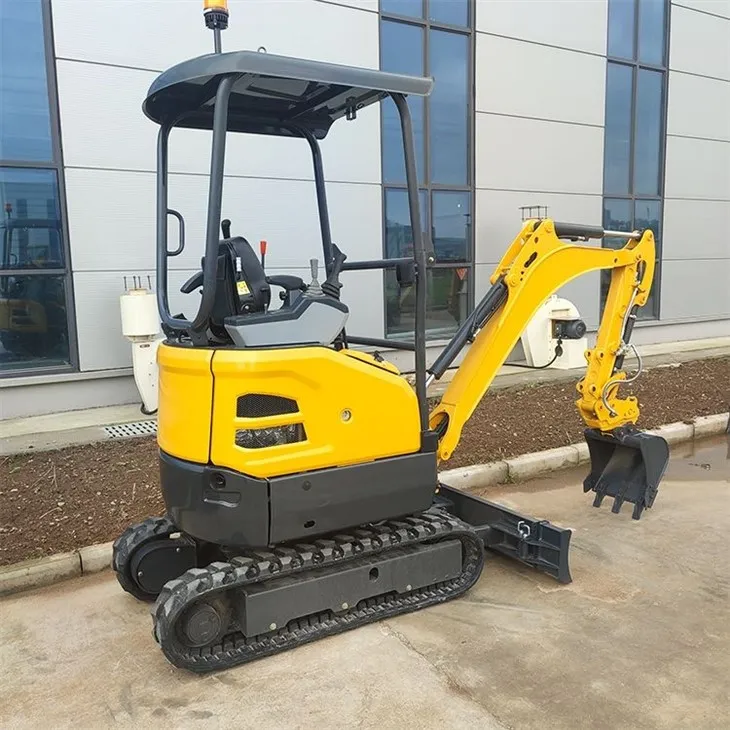

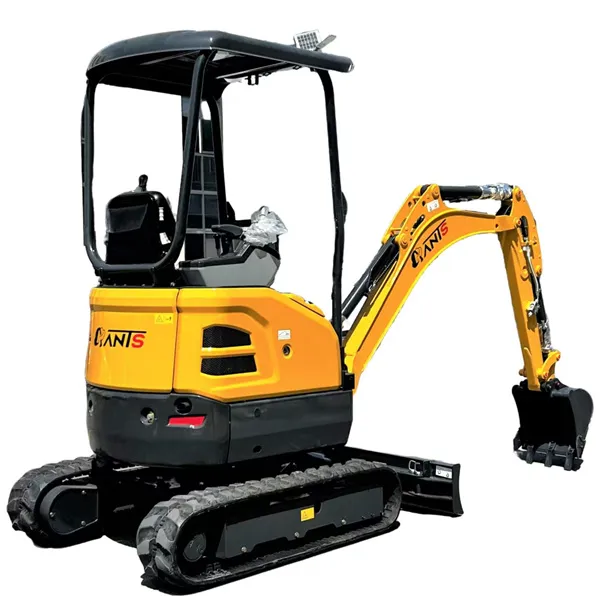

ME20 Excavator

ME20 machine is small, full of functions, no tail rotation, boom side swing, variable width chassis, suitable for narrow environment operation, low maintenance cost, low fuel consumption, high efficiency. Suitable for road construction, road maintenance, urban construction, ditching and so on.

Share This Product, Choose Your Platform!

Product Details

The weight of the whole machine is 1880kg, the bucket capacity is 0.04m³, the design of the structural parts is fully optimized, the key position is strengthened, and the harsh construction environment can also work. The boom cylinder is placed on top to effectively prevent construction bump; Optional rubber tracks and steel tracks with glue blocks. It can replace the breaking hammer, hydraulic shear, quick change device, auger, narrow bucket, tilt bucket and other accessories.

Products Parameter:

Product Name

ME20

 LWH 3050*1100*1500mm
Machine weight 1880kg Chassis width 1330/990-1300
Bucket volume 0.04m³ Max. digging radius 3910mm
Engine model Kubota/Yanmar Max. digging height 3535mm
Pump type Variable volume pump Max. digging depth 2270mm
Working time 6h Walking speed 2.2/4.3km/h
PMSM motor 3.5 72v/Kw Hydraulic flow 20L/mim
Max. discharge flow 64.4L/min Swing speed 12″ /360°
Hydraulic system HVSE Climbing angle 58°
Walking motor AIDI:FTMO1A(reducer)
Decibels within 1 meter 95

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.

Ant Cloud Intelligent Equipment (Shandong) Co., Ltd.
