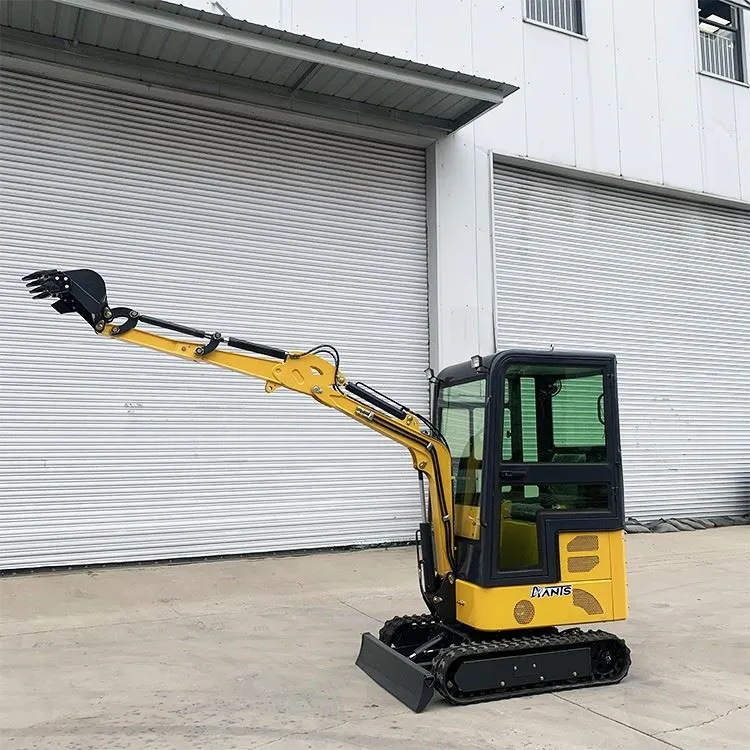

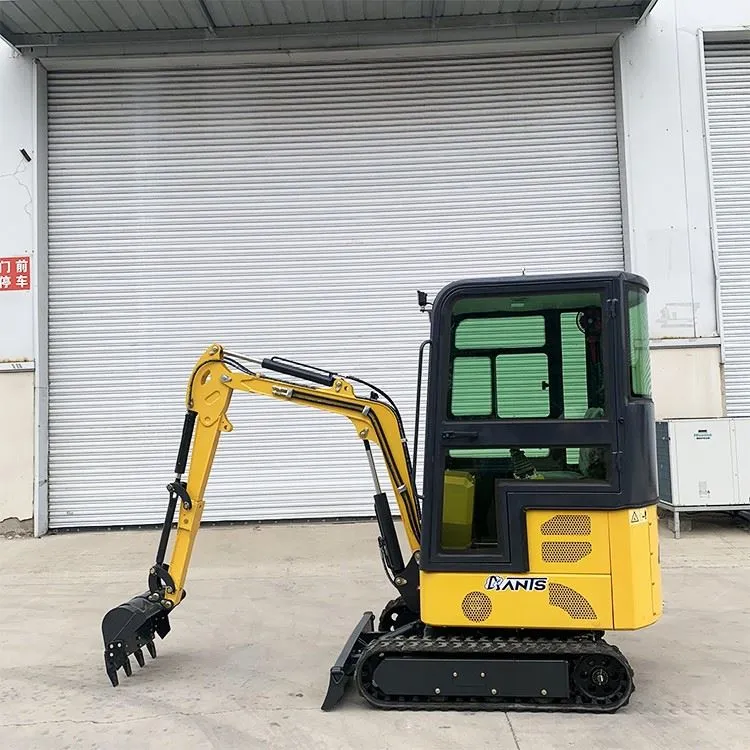

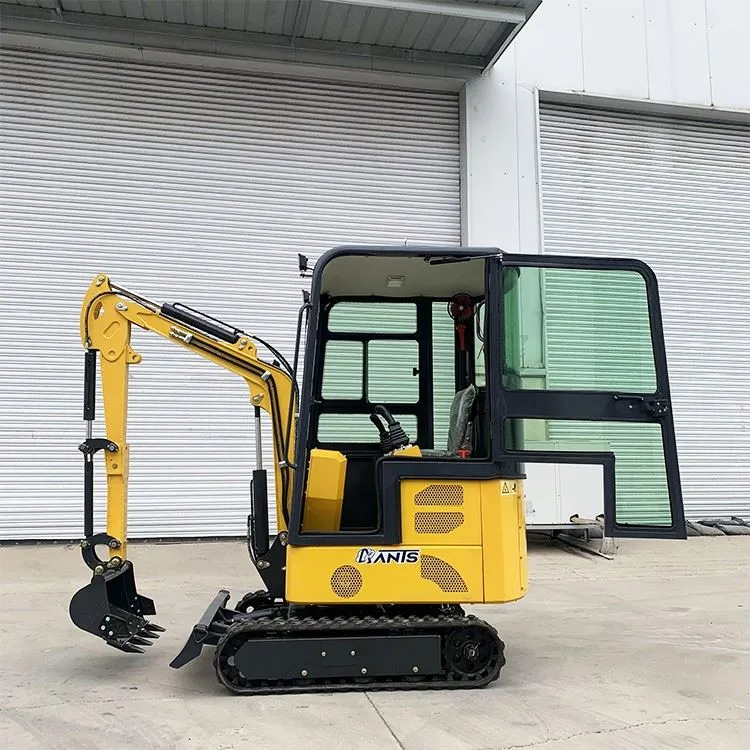

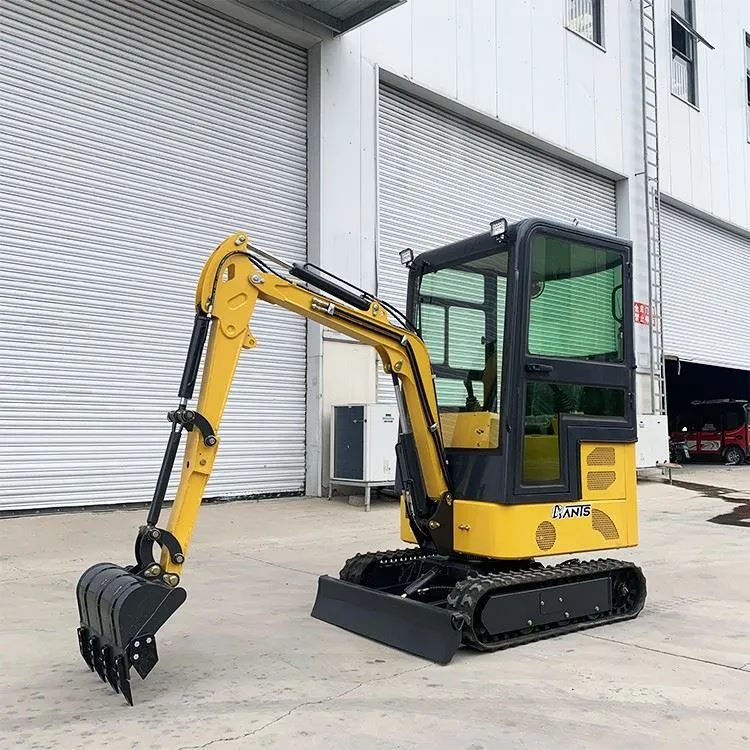

Mini Digger ME15 Excavator

Operating weight 1500kg Large capacity lithium battery, the maximum working time is about 12 hours. The products are suitable for distillery, food factory, pharmaceutical factory, indoor environment.

Share This Product, Choose Your Platform!

Product Details

Slewing bearing
The upper part of the excavator (cab, working device, etc.) can flexibly rotate relative to the lower part (chassis), achieving 360° rotation, completing excavation, loading and unloading operations in different positions.
Hydraulic oil radiator
It can reduce the temperature of hydraulic oil in the hydraulic system, avoid excessive oil temperature affecting the performance and stability of the hydraulic system, and protect hydraulic components.
Temperature controller
Set the temperature limit and output the control signal when the temperature reaches the preset value. Maintain the temperature in the appropriate range

ME15D electric mini excavator product advantages:

1. No emissions, low noise, green and environmentally friendly.

2. Equipped with hydraulic oil air-cooled radiator, which can meet the needs of continuous work.

3. Large-capacity lithium battery, battery capacity is optional.

4. The maximum working time is about 12 hours, which can meet the needs of one day’s work.

5. Suitable for working in wineries, food factories, indoor environments, etc.

Products Parameter:

Product Name

ME15E

 LWH 3050*1100*1500mm
Machine weight 1400kg Chassis width 1100/990-1300mm
Bucket volume 0.035m³ Max. digging radius 3150mm
Engine model LiFePO4/LiCoMnNiO2 Max. digging height 2700mm
BYD:Lithium battery+BMS 210/300/400 72v/ah Max. digging depth 1880mm
Working time 7/9/12h Walking speed 2.2km/h
PMSM motor 5.5 72v/Kw Hydraulic flow 20L/mim
Peak power 10Kw Swing speed 12″ /360°
Charging time 4-8h Climbing angle 45°
Power consumption 1.5-2.5Kwh
Decibels within 1 meter < 50Dba

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
