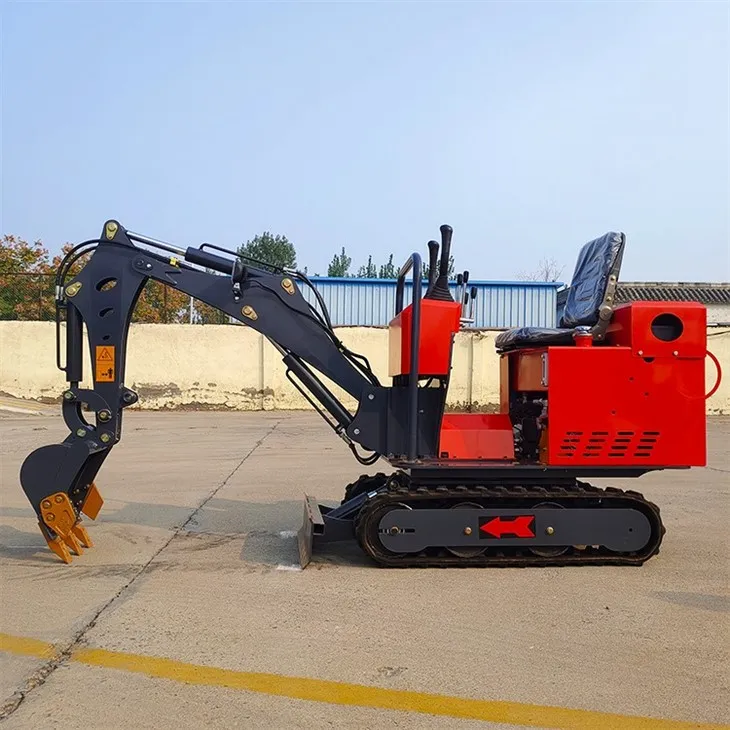

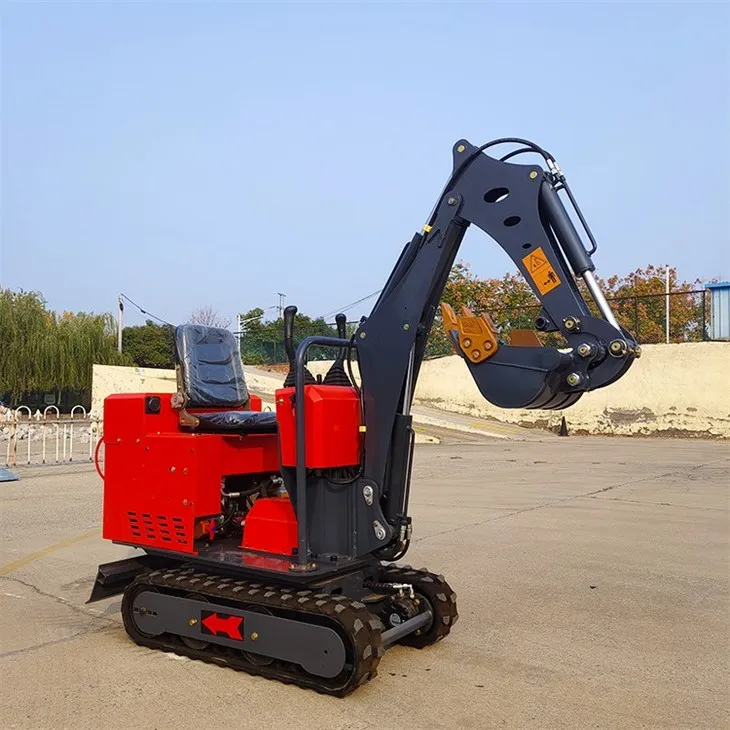

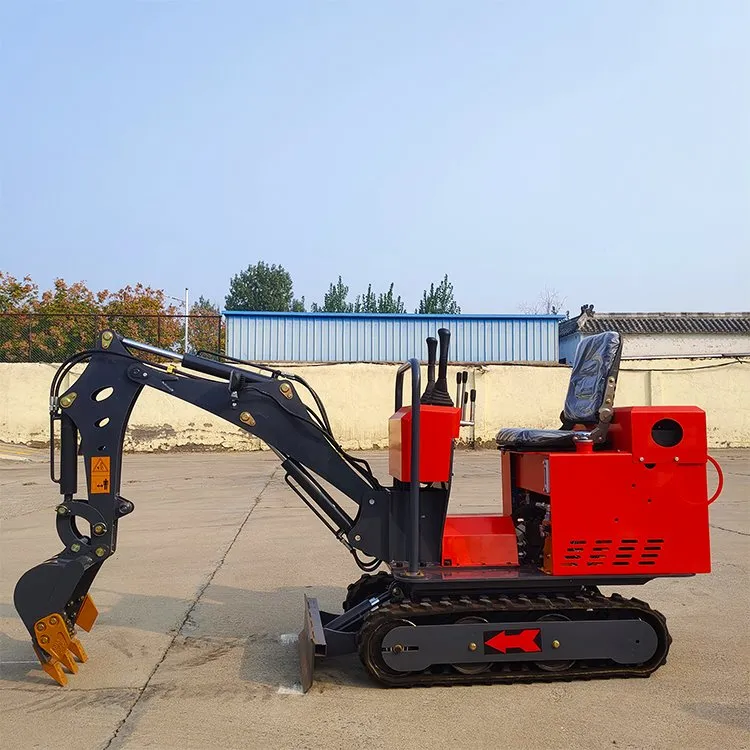

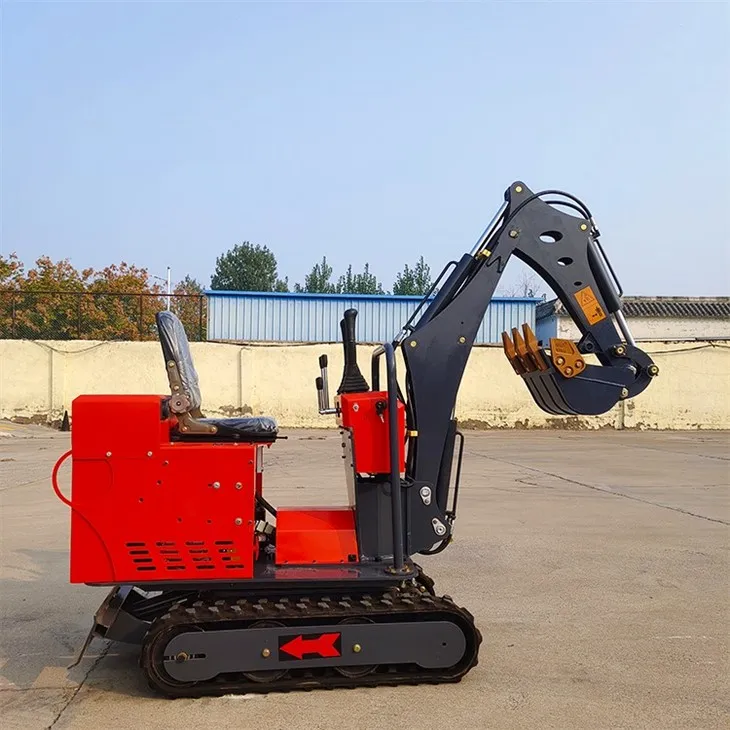

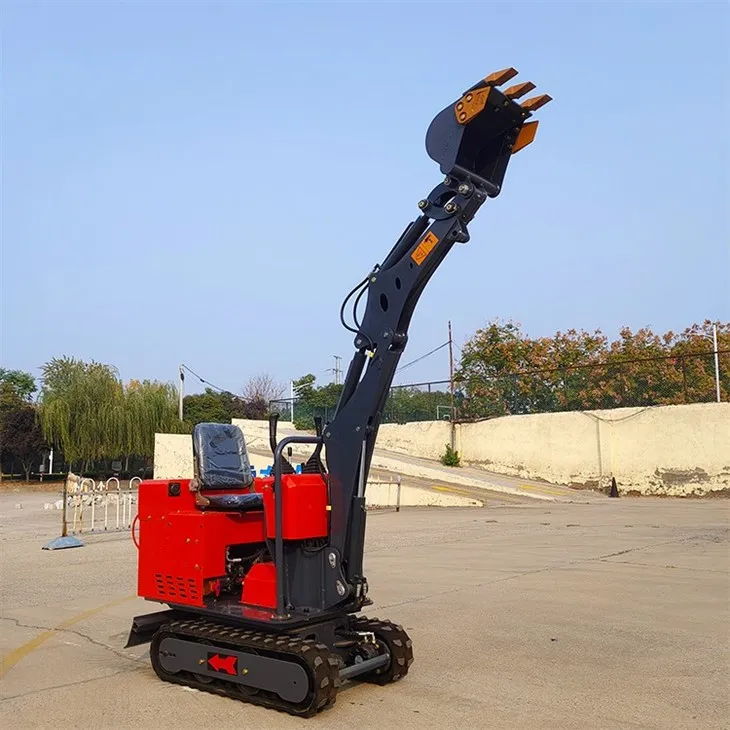

Mini Excavator 800kg

Excavating operations are carried out by manipulating the excavator bucket. Buckets of different shapes and specifications can be replaced according to work needs. In addition to excavation operations, small excavators can also carry out loading operations, loading excavated materials into transport vehicles.

Share This Product, Choose Your Platform!

Product Details

Excavating operations are carried out by manipulating the excavator bucket. Buckets of different shapes and specifications can be replaced according to work needs.

In addition to excavation operations, small excavators can also carry out loading operations, loading excavated materials into transport vehicles.

The mini excavator is also equipped with a crushing hammer, which can carry out crushing operations, such as dismantling buildings and breaking rocks. Small excavators can also carry out earth-moving, scraping, piling and other operations.

PROJECT UNIT ME08E
Machine weight kg 800
Bucket volume m³ 0.025
Engine model Battery LiFePO4/LiCoMnNio2
BYD:Lithium battery+BMS 72v/ah 130/180/210
Working time h 6/9/10.5
PMSM motor 72v/Kw 4
Peak power Kw 8
Charging time h 4-8
Power consumption Kwh 1.2-1.4
Decibels within 1 meter Dba < 50
L*W*H mm 2480*720*1250
Chassis width mm 720/700-900
Maximum digging radius mm 2400
Maximum digging height mm 2200
Maximum digging depth mm 1220
Walking speed km/h 2.2
Hydraulic flow L/mim 23
Swing speed   10″/360°
Climbing angle   40°

Applicable Scenarios

Construction

Gardens and orchards

Indoor demolition

Digging trenches

FAQ

A: Operators can control it from a distance, keeping them away from dangerous or unstable areas, which greatly reduces the risk of accidents.

A: Yes! With its compact and flexible design, it can easily enter elevators, indoor areas, or narrow construction zones where larger machines can’t reach.

A: It’s fully electric – no traditional fuel needed. This means zero emissions, quieter operation, and less maintenance.

A: Yes. Its lightweight and compact size make it ideal for working on small platforms or limited load-bearing areas.

A: Absolutely. It’s designed for remote operation in hazardous or hard-to-reach areas, reducing the need for manual intervention.

A:Smaller size, electric drive, and remote operation – making it safer, cleaner, and more flexible for modern construction needs.
